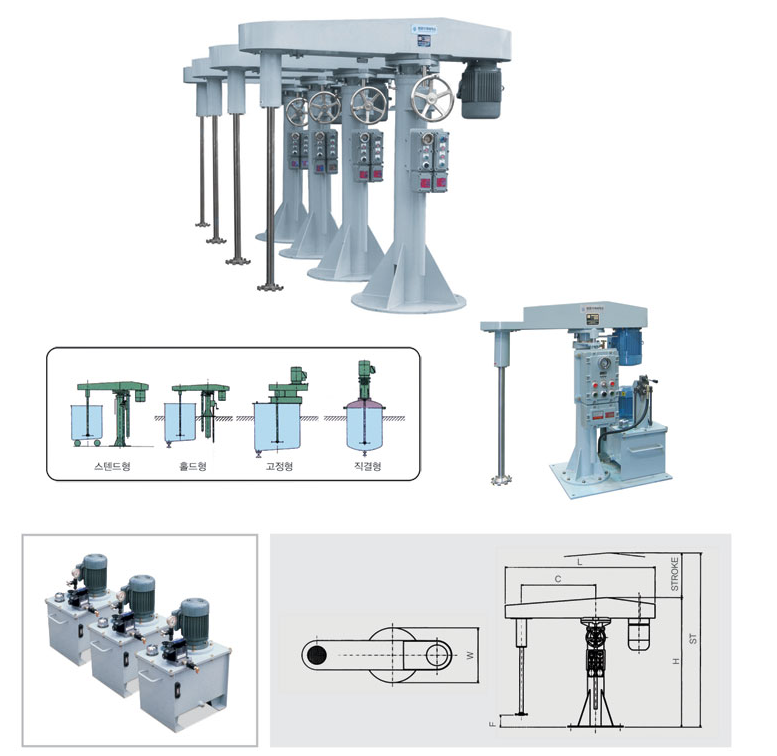

Dissolver
● FEATURE
▶ Wide range of usage for the agttation, dispersion and dissolution for low viscosity product.
▶ The changing type of mixing tank makes the additional tanks be used, which maximizes the working efficiency.
▶ Working efficiency is high as the rotation speed of impeller can be controlled easily.
▶ Easy deaning and maintenance.
● APPLICATION
▶ Paints and pigments
▶ Gravure inks
▶ Cosmetics
▶ Bonding agents
▶ Coloring agents
▶ Magnetic inks
▶ Emulsion
▶ Other viscous raw materials
● OPTION
▶ Variable speed change (inverter)
▶ Explosion proof type of motor and control panel
● Specifications
Model | Motor (kw) | Mixing | Impeller | Impeller | Stroke | C | H | L | W | F | ST | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Main | Pump | ||||||||||||
MD-3 | 2,2 | 0.75 | 50~100 | 125 | 1200 | 750 | 500 | 1050 | 1245 | 450 | 100 | 1800 | 550 |
MD-5 | 3.7 | 0.75 | 50~200 | 150 | 1200 | 1000 | 900 | 1780 | 1800 | 700 | 150 | 2780 | 600 |
MD-7.5 | 5.5 | 0.75 | 100~300 | 180 | 1000 | 1000 | 900 | 1780 | 1800 | 700 | 150 | 2780 | 650 |
MD-10 | 7.5 | 1.5 | 100~300 | 200 | 1000 | 1100 | 1000 | 1930 | 1935 | 800 | 150 | 3030 | 800 |
MD-15 | 11 | 1.5 | 200~500 | 250 | 1000 | 1100 | 1000 | 1940 | 1950 | 800 | 150 | 3040 | 1150 |
MD-20 | 15 | 1.5 | 300~700 | 250 | 1000 | 1200 | 1200 | 2130 | 2420 | 900 | 150 | 3330 | 1550 |
MD-30 | 22 | 1.5 | 500~1000 | 300 | 1000 | 1200 | 1200 | 2130 | 2320 | 900 | 150 | 3330 | 1600 |
MD-40 | 30 | 2.2 | 700~1500 | 330 | 900 | 1350 | 1400 | 2570 | 2450 | 1000 | 200 | 3920 | 1800 |
MD-50 | 37 | 2.2 | 1000~2000 | 350 | 900 | 1350 | 1400 | 2570 | 2550 | 1000 | 200 | 3920 | 2000 |
