Master Batch


● Flame Retardant Masterbatch


- It is a concentrated mixture of using a variety of plastic resins and flame retardants and additives. It is made improving function and additives encapsulated which is then cooled and cut into a granular shape and mixing according to end user's real condition, Flame retardant masterbatch is engineered to meet stringent flammability performance requirements defined by industry agencies



● Flame-Retardants of Plastic


- Flame retardants are added to different materials to reduce the risk of fire. There are many different flame retardants, and these work in a number of different ways. Some flame retardants are effective on their own; other products are used mainly or only as synergists acting to increase the effect of other types of flame retardant.

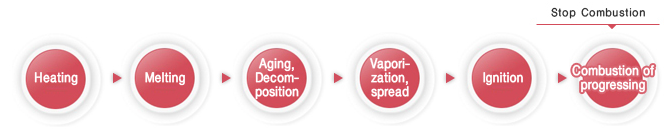

● COMBUSTION PROGRESS OF PLASTIC




- Solid materials do not burn directly: they must be first decomposed by heat (pyrolysis) to release flammable gases Visible flames appear when these flammable gases burn with the oxygen (O2) in the air. The gas flame itself is maintained by the action of high energy "radicals" (that is H+ and OH in the gas phase) which decompose molecules to give free carbon which can react with oxygen in air to "burn" to CO, generating heat energy.

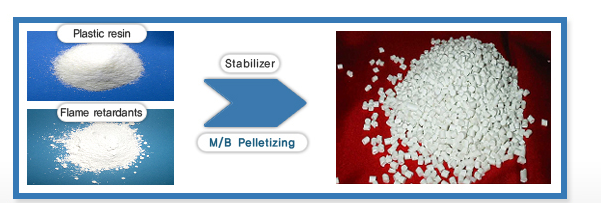

● Flame Retardants M/B Manufacturing Methods



● Flame Retardant Masterbatch Series

- SFR Flame Retardants Masterbatches

Item

Grade

Usage

Remarks

S F R Series

SFR-1000

Poly ethylene
Poly propylene
Poly amides
EPDM

a variety of uses and features by product grade and excellent dispersing power It has a special functional plastic property including flame retardants & thermal resistance.

SFR-1200

SFR-3000

SFR-4000

SFR-1700

Thermoplatstic
Polyester
(PBT/PET)

SFR-2000

SFR-5160

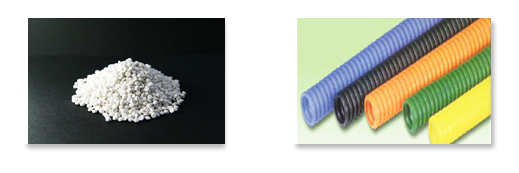

Electric wire
FR_CD pipe
(Corrugated Duct)

It used electric wire CD pipe and cable pipe as flame retardants M/B.

SFR-5170

SFR-5180

SFR-6160

PE electric pipe
series

SFR-6170





● Foaming Flame Retardants Master batches


Item

Grade

Usage

Remarks

FR Series

FR-5001

XPS or EPS Foaming Sheets

It is used primarily in extrude(XPS) Resulting in minimal effect on the mechanical properties of formulated systems

FR-6001



● Functional Masterbatches


- Functional master-batch is a special functional colorants mixed and concentrated with functional additives and colorants, etc. So, when you use molding products, you can take a special function.

Item

Usage

Remarks

Functional
Masterbatch Series

LDPE,EVA,LLDPE, HDPE, PP, PC, RUBBER, ABS, SAN

Color masterbatch
Antibacterial masterbatch
Antioxidant masterbatch
Anti static masterbatch
SILP masterbatch




● Specialty Compounds


- Drawing on our experience in developing compounds and our manufacturing flexibility, we can provide you with a variety of other products to meet your needs. Our compound product are widely used for thermoplastic with excellent dispersion and price competitive.

▶ Custom designed Flame Retardant Compounds Specialty Thermoplastic Compounds
