Chemicon

- Model name: C4-A, C4-D, C4-G, C2-H

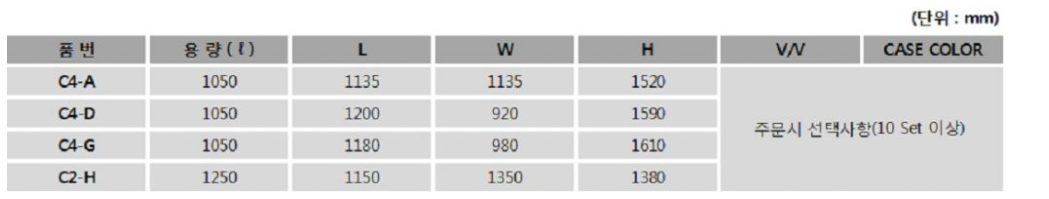

- Size: see table below

- Case: Galvanized steel plate (G.I)

- Container: Polyethylene (POLYETHYLENE)

- VALVE: STS-304 / PVC

● CHEMICON

- Safe, robust and efficient medium-sized liquid logistics containers

▶ TANK color

- Basic Gray Available when ordering Color Green, Blue, Yellow

> Please consult us when ordering other than basic colors.

▶  Product Features

- The FRAME is made in a sturdy and safe pallet type so that it can be stacked and transported in two stages.

- The bottom surface is made incline toward the exit and the contents are discharged completely and quickly.

- It is a product made of special POLYETHYLEN which is resistant to a wide range of chemicals, nontoxic to food, and has excellent stiffness.

- It is resistant to corrosion by using galvanized steel sheet.

- PAINT has beautiful appearance and does not peel off well because it has advanced specifications.

- We have been recognized for the reliability of quality through certification of Fire Fighting Industry Technical Institute's use of hazardous material transportation container.

▶ Product Usage

- Emile John, PAINT, metal surface treatment agent

- Surfactants, plating chemicals, pesticides, soft drinks

- drinking water, alkaline, food (edible oil, sauce)

- For transportation and storage of various liquids such as other chemicals

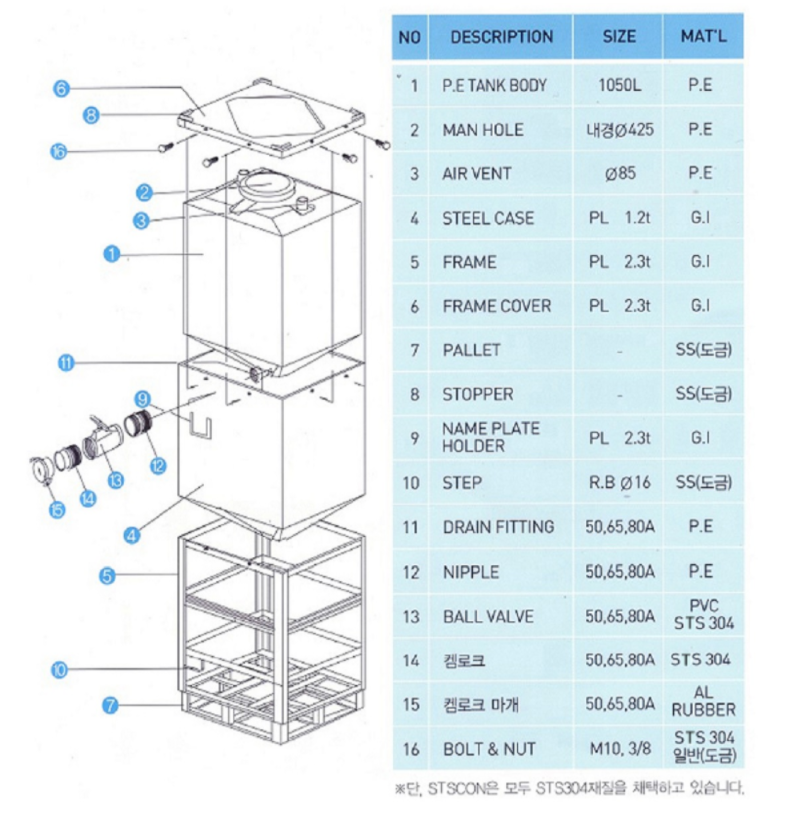

▶ Product Specification

* INSULATION (thermal insulation): Urethane use

- Drain base: 50A (up to 80A depending on the demand of the customer)

▶ How to use Chemicon

- The temperature of the liquid should be below 70 °C and should not be pressurized or decompressed under normal pressure.

- Before opening the outlet valve, be sure to open the exhaust valve with the AIL-VENT open.

- When connecting HOSE to the outlet, do not apply excessive force to the valve and operate the valve slowly.

- Be careful not to give impact when going up and down by forklift.

> Please contact us if you are using an unknown drug.

> Chemicon can be loaded in two stages, but transportation in two stages is subject to vehicle control.
