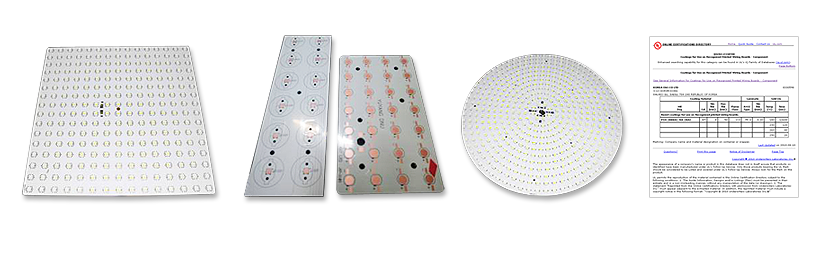

White INK (PSM-2000)
● Features and Benefits
- High reflectance rate LED light will reflect evenly
- Low heat discoloration No obvious discoloration after reflow
- Excellent chemical shock No any abnormal after gold plating
- Excellent hardiness No any abnormal after 3 time reflow
- High resolution High resolution on fine pitch after development
Item | PSM-2000 SW | Test condition |
|---|---|---|
Main part | PSM-2000 SW 01 | (UL name : PSM-2000 AC ) |
Hardener | HA-20 SW 01 | (UL name : HA-20 AC ) |
Adhesion | 100% Remain | Cross Cut(100/100) Test |
Color | Purely White Color | Visual Check |
Pencil Hardness | 7H | JIS K5400 |
Heat Resistance ( Solder ) | Pass | 260±5℃ - 10sec. - 3cycle |
Resolution | L 75 / S 75 ㎛ at 500mJ | Thickness wet 40㎛ |
Acid & Alkaline Resistance | Pass | 10Vol % H2SO4, 10 Wt% NaOH |
Reflection (Y) at 550nm | 90% ↑ | Reflow 1,2,3 cycle |
Discoloration △E | △E < 1 | |
Storage Condition | Below 10~25℃ Dark Room |
