ACF bonding sheet
● Features

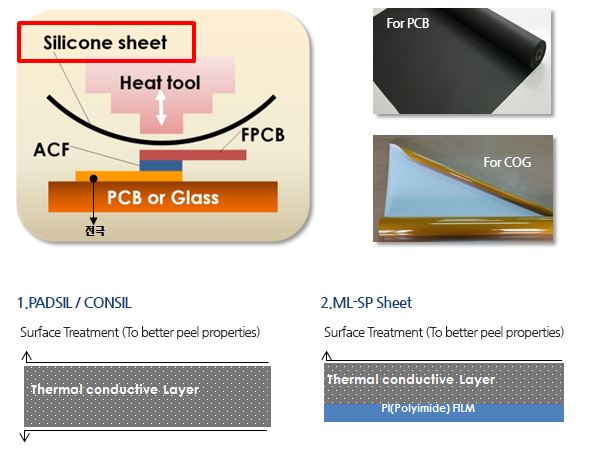

- It is important to press Heat tool with ACF to perform Normal Conductive Adhesive and electrical connection. Therefor, we need the ACF Bonding Sheet to prevent heat or shock damage from Heat tool.

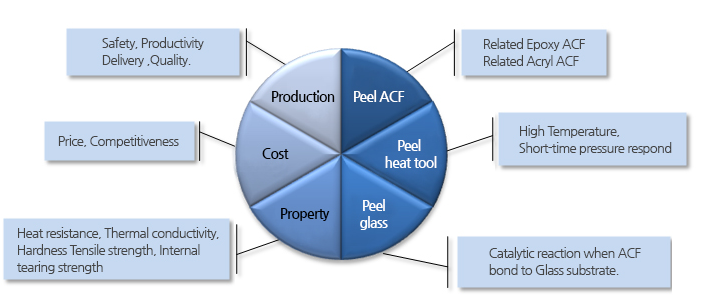

● Merits

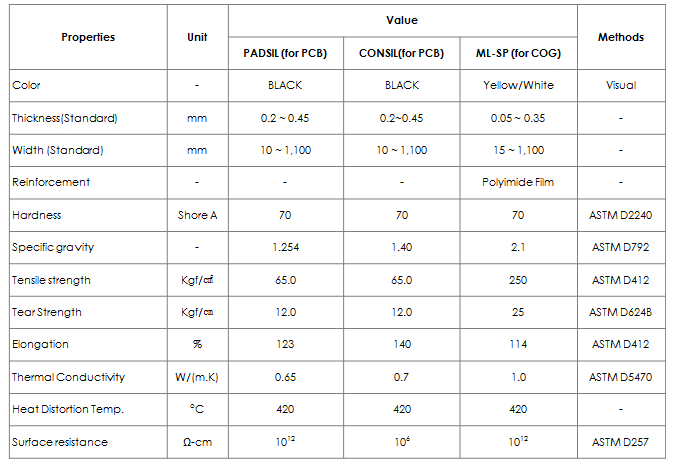

● Properties
● Applications

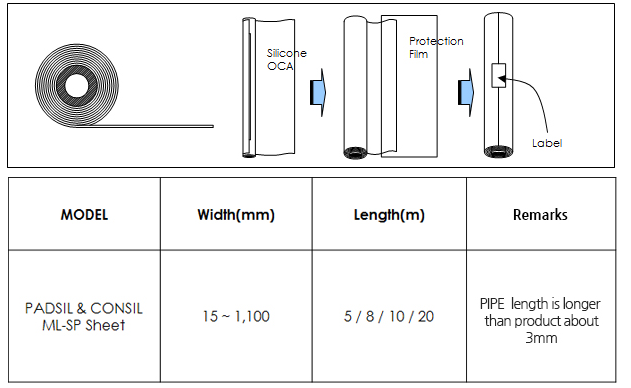

● Packing Method (Example)

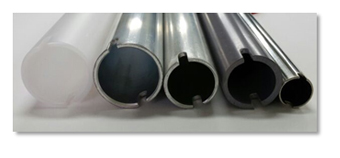

*.PIPE
1).PIPE is important minor diameter and both edge side shape
2). Material of PIPE (Standard): SUS, Aluminum, PVC, PE, PV, etc
3).PIPE length is basically longer than product about 3mm,
(if customer request another size, We can customize it.)
