JISTAT CPC - Conductive Coating Agent for Plastic Sheet and Film
● FEATURES
- Excellent conductive and dissipative activity (Surface resistance: 10⁴-7 Ω/sq)
- Durable and non-migratory
- Excellent compatibility (ex. IPA, Ethanol, Distilled water)
- Excellent adhesion on plastic surface
- Effectiveness independent of Humidity and temperature.
- Good photo stability and good thermal stability
- Coating has excellent transparency when dried
- This material is applied via spray
- Non-carbon black, non-surfactant, non-heavy metals

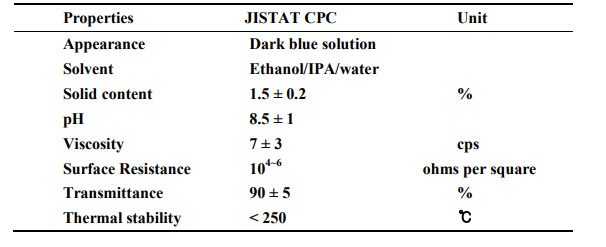

● PHYSICAL PROPERTIES

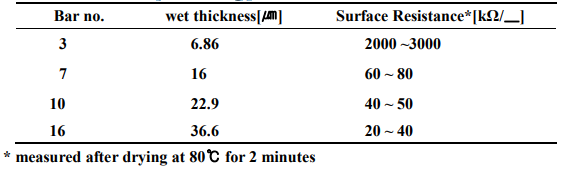

▶ Surface Resistance ( bar coating )
● APPLICATIONS
- Antistatic coating on plastic film and sheets ( inline coating )
- Thermoforming packaging sheet coating (electronic component)

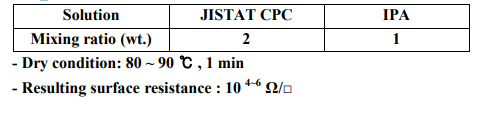

* Gravure coating
[ Working condition ]

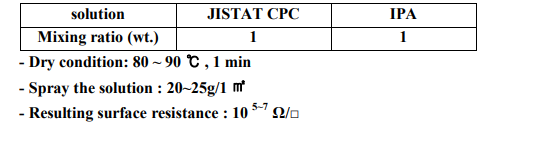

* Spray coating
[ Working condition ]
● HANDLING & STORAGE
- Do not use near fire or flame.
- Avoid exposure to direct sunlight and store at room temperature in a dark place.
- Make airtight after usage, because it contains Solvent.
- The surface resistance is calculated differently according to coating thickness.
- Before usage, please stir.
- Use before expiry date. JISTAT CPC is stable for a minimum of 3 months when stored at 20 °C in sealed, original containers.
● PACKING
- 20/180 kg Plastic Drum
