LC Connected

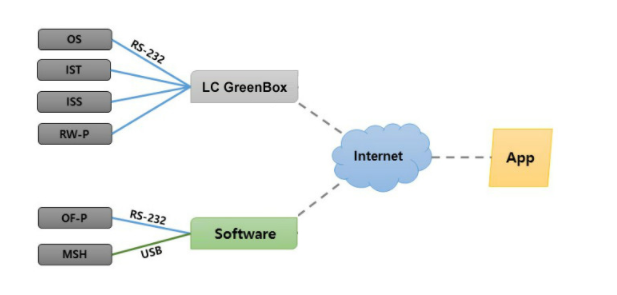

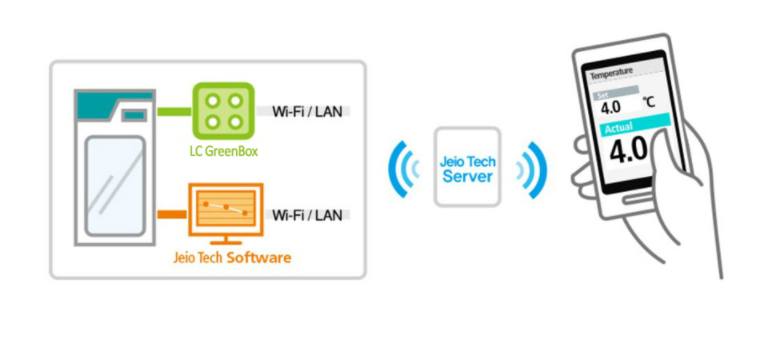

● Two methods to use LC Connected
● Jeio Tech Software/ LC GreenBox
▶ Jeio Tech Software
- Test record storage.
- Monitor through computer and mobile app. (Android only)
- Monitor through mobile app. (Android only)
▶ LC GreenBox
- No computer use required.
- Max. 4 units connected by RS-232.
- Max. 255 units connected by USB or RS-232.

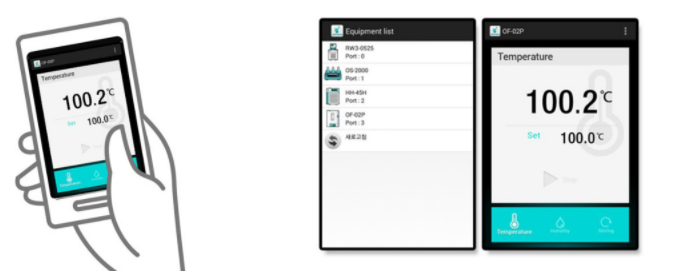

● Real-Time Monitoring
- able to check the status of the equipment on real-time.

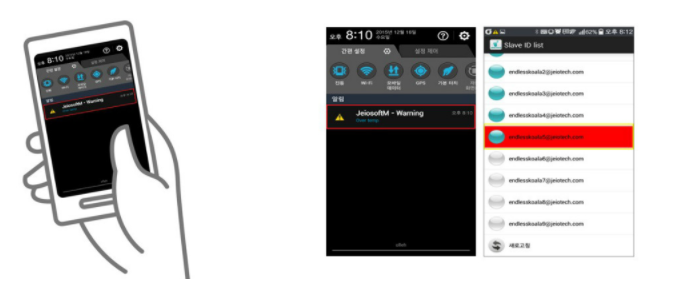

● Remote Notification
- automatic remote notification when an error has occurred situation.

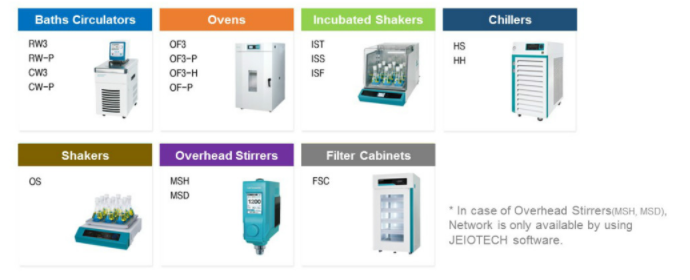

● Great compatibility
- Every equipment with computer interface are compatible to Jeiotech network.
Model | JGW-4 (2.4 GHz) | |
|---|---|---|
Dimension | Exterior (W×D×H) (mm / inch) | 156x94x34 / 6.1x3.7x1.3 |
Exterior with Antena (W×D×H) (mm / inch) | 156x94x100 / 6.1x3.7x3.9 | |
Weight (kg /Ibs) | 0.4 / 0.9 | |
Electricity | Electrical Requirement | AC 100~ 240V, 50/60Hz |
Power Consimption (W) | 3 | |
Materials | PP, PET, Poeder coated steel | |
Permissible environmental conditions | Temperature (2-60°C) and relative humidity (up to 80%) Altitudeup to 2,000m | |
Cat. No. | AAAQ1011 | |
