Heating Baths(Economy)



● Performance

▶ Temperature range from ambient +7℃ to 100℃.
▶ On/off temperature control.




● Convenience

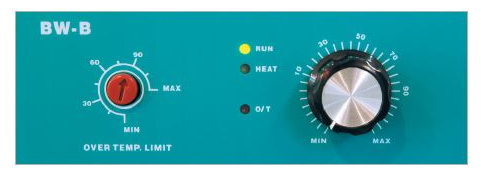

▶ Simple and quick control panel.
▶ Corrosion-resistant stainless steel construction allowing other bath fluids as well as water and silicone fluids.
▶ Low-profile design with sloped control panel for easier access and better safety.
▶ Variety of accessories are available to meet application demands.


● Safety

▶ Isolated design of heater, and sensor by a baffle plate to protect users and samples against direct contact.
▶ Complete safety protection system with warning alarms.
- Low fluid level and dry-running, over-temperature, over-current.
▶ Splash-proof keypad.

Model

BW-05B

BW-10B

BW-20B

Bath Volume (L / cu ft)

3.5 / 0.1

11.5 / 0.4

20 / 0.7

Temperature

Working Temperature Range (℃ / oF)

Amb. +7 to 100 / Amb. +12.6 to 212

Temperature Stability at 50℃  (±℃ / oF)

0.4 / 0.72

0.5 / 0.9

0.5 / 0.9

Heat up time to 70℃ (min) (℃ / oF)

25

51

68

Dimension

Bath Opening / Depth (W×L, D) (mm / inch)

240×136, 110 / 9.4×5.4, 4.5

300×240, 165 / 11.8×9.5, 6.5

498×300, 165 / 19.6×11.8, 6.5

Overall (W×L×H) (mm / inch)

303×242×245 / 11.9×9.5×9.6

357×330×290 / 14.1×13×11.4

564×392×290 / 22.2×15.4×11.6

Net Weight (kg / lbs)

6.5 / 14.3

10 / 22

18.5 / 40.8

Electrical Requirements (230V)

60Hz, 3A

50Hz, 3A

60Hz, 4.3A

50Hz, 4.3A

60Hz, 8.7A

560Hz, 8.7A

Cat. No.

AAH46012K

AAH46012K

AAH46022K

AAH46022K

AAH46032K

AAH46032K

Electrical Requirements (120V)

60Hz, 5.8A

60Hz, 8.3A

60Hz, 8.3A

Cat. No.

AAH46013U

AAH46023U

AAH46033U

※ The lowest temperature that can be controlled depends on changes in room temperature and sample temperature. Therefore, please contact the distributor of our products before purchasing for technical consultation.

※ Technical data (according to DIN 12876).

※ Bath fluid : Water.



● Accessories & Options

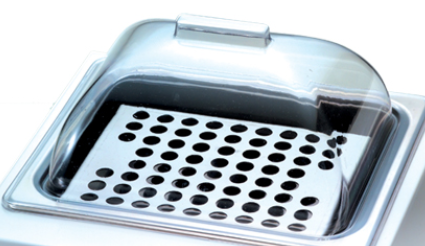

▶ Transparent Polypropylene Gable Covers

prevent liquid loss due to evaporation, and also protect samples from contamination due to direct dripping of the bath liquid into the samples. The gable type roof accommodates glassware of varying heights.

Cat. No.

Description

Suitable for

AAA45531

Transparent Polypropylene Gable Type

BW-05H / BW-05B

AAA45532

Transparent Polypropylene Gable Type

BW-10H / BW-10B

AAA45533

Transparent Polypropylene Gable Type

BW-20H / BW-20B

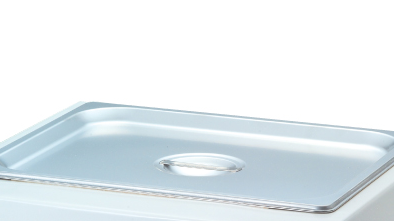

▶ Stainless Steel Flat Covers


Made of stainless steel to prevent corrosion and rust. (only for BW-H and BW-B Models)

Cat. No.

Description

Suitable for

AAA45541

Stainless steel flat type

BW-05H / BW-05B

AAA45542

Stainless steel flat type

BW-10H / BW-05B

AAA45543

Stainless steel flat type

BW-20H / BW-05B

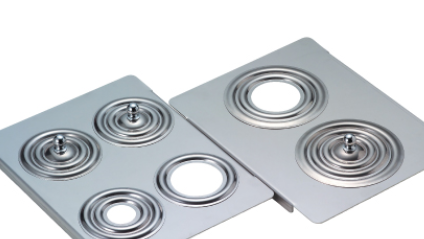

▶ Open-rings Covers


Beakers or Erlenmeyer flasks can be placed directly onto the perforated stainless steel half-shelf adjuster or water tank bottom. By adjusting ring size for each glassware, liquid loss due to evaporation is minimized. (only for BW-H, BW-B, BW-G Models)

Cat. No.

Description

Suitable for

AAA45521

with 2 openings

80mm dia. (3.1˝)

BW-05H / BW-05B

AAA45524

with 1 opening

110mm dia. (4.3˝)

AAA45522

with 4 openings

80mm dia. (3.1˝)

BW-10H / BW-10B

AAA45525

with 2 openings

110mm dia. (4.3˝)

AAA45526

with 1 opening

185mm dia. (7.3˝)

AAA45523

with 8 openings

80mm dia. (3.1˝)

BW-20H / BW-20B

AAA45527

with 6 openings

110mm dia. (4.3˝)

AAA45528

with 2 openings

185mm dia. (7.3˝)

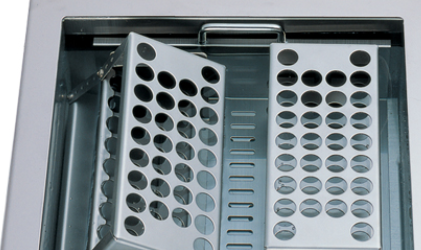

▶ Test Tube Racks


Highly durable stainless steel test tube racks feature adjustable angle and tube height support without requiring any base plate. You can easily mount and release test tube racks.



Cat. No.

Description

Insert Capacity of Racks*

AAA44581

for 86 test tubes

Ø8mm / Ø0.3˝


CW-20G/P, 30G/P
RW3-2025/P, 2040/P
RW-33025/P, 3040/P

AAA44582

for 86 test tubes

Ø10mm / Ø0.4˝

AAA44583

for 58 test tubes

Ø12mm / Ø0.5˝

AAA44585

for 32 test tubes

Ø16mm / Ø0.6˝

AAA44586

for 19 test tubes

Ø25mm / Ø1.0˝

2ea

3ea

AAA41531

for 50 test tubes

Ø8mm / Ø0.3˝

BW-05H
BW-05B

RW3-1025/P
RW3-1040/P
CW3-10/P

AAA41532

for 50 test tubes

Ø10mm / Ø0.4˝

AAA41533

for 33 test tubes

Ø12mm / Ø0.5˝

AAA41535

for 16 test tubes

Ø16mm / Ø0.6˝

AAA41539

for 10 test tubes

Ø25mm / Ø1.0˝

1ea

AAA45551

for 176 test tubes

Ø8mm / Ø0.3˝

BW-10H
BW-10B

BW-20H
BW-20B

AAA45552

for 176 test tubes

Ø10mm / Ø0.4˝

AAA45554

for 84 test tubes

Ø12mm / Ø0.5˝

AAA45556

for 68 test tubes

Ø16mm / Ø0.6˝

AAA45561

for 33 test tubes

Ø25mm / Ø1.0˝

1ea

2ea

* No declination.

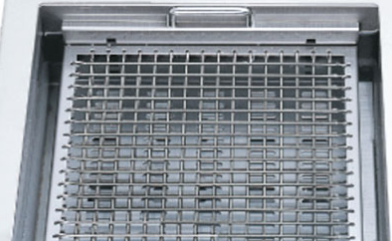

▶ Spring Wire Racks

Ideal for holding a wide variety of tubes, flasks, and other glassware. All components are made of stainless steel. (for all models)

▶ Half-shelf Adjusters

Stainless steel perforated sample tray shelves with adjustable height support prevent leaks and guard against rust and contamination. (only for BW-H, BW-B, and BW-G Models)




Spring Wire Racks

Cat. No.

Suitable for

AAA45502

BW-10H / BW-10B

AAA45503

BW-20H / BW-20B

Half-shelf Adjusters

Cat. No.

Suitable for

AAA45511

BW-05H / BW-05B

AAA45512

BW-10H / BW-10B

AAA45531

BW-20H / BW-20B
