Shaking & Heating Baths
● Performance
▶ Temperature range from ambient +5°Cto 100°C.
▶ Microprocessor PID control / Automatic tuning / Calibration.
▶ Separate control keys for shaker mechanism allows the unit also to be used as heating bath.
● Convenience
▶ Multiple LED displays (0.1°C and 1 rpm resolution) for setting various values.
▶ Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
▶ Minimal shock to the samples thanks to the shaker’s gentle start feature.
▶ Spring wire rack is easy to equip and the height of the rack is easily adjustable.
▶ Gable cover minimizes of the liquid loss and prevents dripping of the bath liquid into the samples.
▶ Silent and anti-vibration BLDC motor.
▶ SUS 304 spring wire rack (two tier rack with flexible crossed spring) provides various ways of glassware settings.
● Safety
▶ Isolated design of agitator, heater, and sensor by a baffle plate to minimize the turbulence in the bath fluid and also to protect users and samples against direct contact.
▶ Complete safety protection system with warning alarms.
- Over-temperature, over-current protection.
Model | BS-06 | BS-11 | BS-21 | BS-31 |
|---|
Bath volume (L / cu ft) | 17 / 0.6 | 25 / 0.9 | 37 / 1.3 | 55 / 1.9 |
Working temperature range (℃ / ℉) | Amb. +5 to 100 / Amb. +9 to 212 |
Temperature stability 1) (±℃ / ℉) | 0.2 / 0.36 |
Shaking system | Motion / Speed range (rpm) | Reciprocating / 20 to 180 |
Recip stroke length (mm / inch) | 30 / 1.2 Standard (25,35 /1.0,1.4 available) |
Dimension | Bath opening /depth (W×L, D) (mm / inch) | 199x300, 235 / 7.8x11.8, 9.3 | 319x300, 235 / 12.6x11.8, 9.3 | 479x300, 235 / 18.9x11.8, 9.3 | 629x350, 235 / 24.8x13.8, 9.3 |
Exterior (W×L×H) (mm / inch) | 430×440×355 / 16.9×17.3×14 | 550×440×355 / 21.7×17.3×14 | 710×440×355 / 28×17.3×14.3 | 860×490×355 / 33.9×19.3×14 |
Net weight (kg / lbs) | 26 / 57 | 30 / 66 | 35 / 77 | 42 / 93 |
Electrical requirements (230V, 60Hz) | 3.7A | 4.6A | 8.9A | 8.9A |
Cat. No. | AAH44061K | AAH44111K | AAH44211K | AAH44311K |
Electrical requirements (230V, 50Hz) | 3.7A | 4.6A | 8.9A | 8.9A |
Cat. No. | AAH44062K | AAH44112K | AAH44212K | AAH44312K |
Electrical requirements (120V, 60Hz) | 7.1A | 8.8A | - | - |
Cat. No. | AAH44063U | AAH44113U |

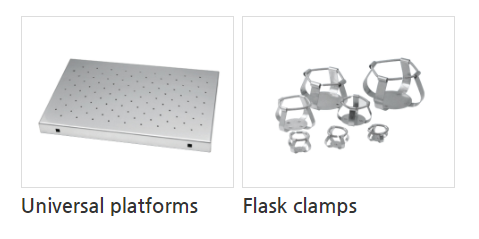

▶ Universal platforms & Flask clamps
The universal platforms provide flexibility for mixing different size test tubes and glassware on a single platform. Various clamps or racks can be interchanged or added easily using mounting holes on the platform.
Model | BS-06 | BS-11 | BS-21 | BS-31 |
|---|
Universal platform | Cat. No. | | AAA44521 | AAA44522 | AAA44523 | AAA44524 |
Flask clamps | | Erlenmeyer flask size | Max. mountable flask clamps |
AAA23550 | for 50mL | 9 | 12 | 20 | 32 |
AAA23551 | for 100mL | 3 | 9 | 15 | 24 |
AAA23552 | for 250ml | 2 | 4 | 8 | 12 |
AAA23556 | for 300mL | 2 | 4 | 8 | 12 |
AAA23553 | for 500ml | 2 | 4 | 6 | 12 |
AAA23554 | for 1L | 1 | 2 | 4 | 6 |
AAA23555 | for 2L ◊ | - | 1 | 2 | 3 |
AAA23557 | for 2.8L ◊ | - | 1 | 1 | 2 |
◊ 2 L and 2.8 L flasks must be used with the bath cover opened due to height restrictions, respectively.
* Flask clamps for universal platforms are sold separately.

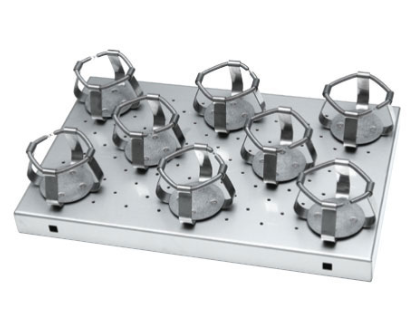

▶ Dedicated platforms
When using glassware of the same size, dedicated platforms with preinstalled 250 mL or 500 mL clamps provide maximum capacity for each platform size. If you need to use different size glassware, purchase other suitable clamps separately.
Cat. No. | Description | Suitable for |
|---|
AAA44531 | Universal platform with 250mL flask clamps 2ea | BS-06 |
AAA44532 | Universal platform with 500mL flask clamps 2ea |
AAA44541 | Universal platform with 250mL flask clamps 4ea | BS-11 |
AAA44542 | Universal platform with 500mL flask clamps 4ea |
AAA44551 | Universal platform with 250mL flask clamps 8ea | BS-21 |
AAA44552 | Universal platform with 500mL flask clamps 6ea |
AAA44561 | Universal platform with 250mL flask clamps 12ea | BS-31 |
AAA44562 | Universal platform with 500mL flask clamps 12ea |
※ Dedicated platforms are sold with maximum number of flask clamps preinstalled.

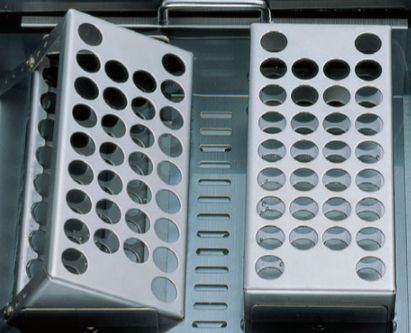

▶ Test tube racks
Highly durable stainless steel test tube racks feature adjustable angle and tube height support without requiring any base plate.
You can easily mount and release test tube racks.
Cat. No. | Description | Insert capacity of racks* |
|---|
BS-06 | BS-11 | BS-21 | BS-31 |
|---|
AAA44581 | for 86 test tubes | Ø8mm / Ø0.3˝ | 1EA | 2EA | 3EA | 4EA |
AAA44582 | for 86 test tubes | Ø10mm / Ø0.4˝ |
AAA44583 | for 58 test tubes | Ø12mm / Ø0.5˝ |
AAA44585 | for 32 test tubes | Ø16mm / Ø0.6˝ |
AAA44586 | for 19 test tubes | Ø25mm / Ø1.0˝ |
* No declination.
※ Customized accessories to meet your specific requirements can be also provided. For inquiries, please contact your dealer.
