Heating Bath Circulators(General)
● Performance
▶ Temperature range from ambient +10℃ to 150℃.
▶ Microprocessor PID control.
▶ Three point temperature calibration / Automatic tuning / Automatic run.

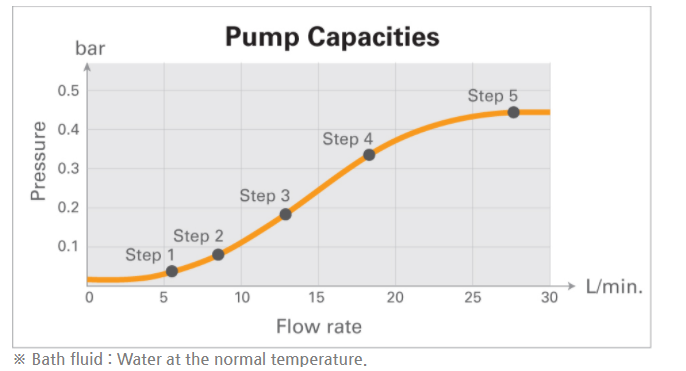

▶ Accurate, stable, and efficient temperature management by using a powerful variable-speed pump. (1 to 3 steps of pump for internal circulation and 4 to 5 steps for external circulation).
▶ Powerful pump pressure and flow rate throughout the whole temperature range.
● Convenience
▶ Bright VFD display with quick adjustable dial knob. (0.1℃ resolution)
▶ Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
▶ Convenient memory function of up to three frequently set temperature.
▶ Corrosion-resistant, leak-proof, round-cornered, and easy-to-clean stainless steel bath with easy access drain valve.
▶ RS-232 /USB interface for external control and data collection.
▶ Side handles enables convenience handling and transport.
▶ Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)
● Safety
▶ Isolated design of agitator, heater, and sensor by a baffle plate to minimize the turbulence in the bath fluid and also to protect users and samples against direct contact.
▶ Complete safety protection system with warning alarms.
- Low fluid level and dry-running, over-temperature, over-current.
▶ Keypad lock function prevents accidental changes during operation.
Model | CW3-05 | CW3-10 | CW3-20 | CW3-30 |
|---|
Bath volume (L / cu ft) | 5 / 0.2 | 10 / 0.4 | 20 / 0.7 | 30 / 1.1 |
Temperature | Working temperature range 2) (℃ / ℉) | Amb. +10 to 150 / Amb. +18 to 302 |
Temperature stability 1) (±℃ / ℉) | 0.05 / 0.09 |
Heat up time to 70℃ / 158 ℉ (min) | 15 | 23 | 43 | 55 |
Dimension | Bath opening / depth
(W×L, D) (mm / inch) | 150×99×160 / 5.9×3.9, 6.3 | 211×154×180 / 8.3×6.1, 7.1 | 290×214×200 / 11.4×8.4×7.9 | 300×264×230 / 11.8×10.4×9 |
Exterior (W×L×H) (mm / inch) | 228×395×424 / 9.0×15.6×16.7 | 289×450×444 / 11.4×17.7×17.5 | 368×510×464 / 14.5×20.1×18.3 | 378×560×494 / 14.9×22×19.4 |
Net weight (kg / lbs) | 12.5 / 27.6 | 15.0 / 33.0 | 17.5 / 38.6 | 19.5 / 43.0 |
Electrical requirements (230V, 50/60 Hz) | 8.5A | 8.5A | 8.5A | 8.5A |
Cat. No. | AAH52341K | AAH52351K | AAH52361K | AAH52371K |
Electrical requirements (120V, 60 Hz) | 8.6A | 8.6A | 8.6A | 8.6A |
Cat. No. | AAH52342U | AAH52352U | AAH52362U | AAH52372U |
※ The lowest temperature that can be controlled depends on changes in ambient temperature and sample temperature. Therefore, please contact the distributor of our products before purchasing for technical consultation.
※ Technical data (according to DIN 12876)
※ In case using silicon oil, you need to exchange other material tube (inlet and out late part), such as copper tube, a teflon tube instead of a silicon tube in fitting.
1) Bath fluid : Water at 50℃ / 122℉
● Accessories & Options
▶ Stainless Steel Cover
Sturdy, corrosion-resistant, stainless steel material.
Cat. No. | Model |
|---|
AAA51531 | RW3-0525(P), RW3-0535(P), CW3-05(P) |
AAA51532 | RW3-1025(P), RW3-1035(P), CW3-10(P) |
AAA51533 | RW3-2025(P), RW3-2035(P), CW3-20(P) |
AAA51534 | RW3-3025(P), RW3-3035(P), CW3-30(P) |

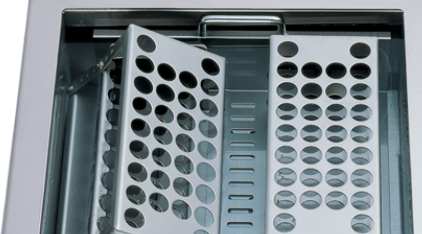

▶ Test Tube Racks
 2.png "Heating Bath Circulators(General) 2.png")
Highly durable stainless steel test tube racks feature adjustable angle and tube height support without requiring any base plate. You can easily mount and release test tube racks.
Cat. No. | Description | Insert Capacity of Racks* |
|---|
AAA44581 | for 86 test tubes | Ø8mm / Ø0.3˝ | CW-20G/P, 30G/P
RW3-2025/P, 2040/P
RW-33025/P, 3040/P |
AAA44582 | for 86 test tubes | Ø10mm / Ø0.4˝ |
AAA44583 | for 58 test tubes | Ø12mm / Ø0.5˝ |
AAA44585 | for 32 test tubes | Ø16mm / Ø0.6˝ |
AAA44586 | for 19 test tubes | Ø25mm / Ø1.0˝ | 2ea | 3ea |
AAA41531 | for 50 test tubes | Ø8mm / Ø0.3˝ | BW-05H
BW-05B
| RW3-1025/P
RW3-1040/P
CW3-10/P |
AAA41532 | for 50 test tubes | Ø10mm / Ø0.4˝ |
AAA41533 | for 33 test tubes | Ø12mm / Ø0.5˝ |
AAA41535 | for 16 test tubes | Ø16mm / Ø0.6˝ |
AAA41539 | for 10 test tubes | Ø25mm / Ø1.0˝ | 1ea |
AAA45551 | for 176 test tubes | Ø8mm / Ø0.3˝ | BW-10H
BW-10B | BW-20H
BW-20B |
AAA45552 | for 176 test tubes | Ø10mm / Ø0.4˝ |
AAA45554 | for 84 test tubes | Ø12mm / Ø0.5˝ |
AAA45556 | for 68 test tubes | Ø16mm / Ø0.6˝ |
AAA45561 | for 33 test tubes | Ø25mm / Ø1.0˝ | 1ea | 2ea |
* No declination.

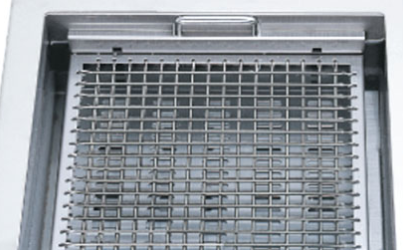

▶ Spring Wire Racks
 3.png "Heating Bath Circulators(General) 3.png")
Ideal for holding a wide variety of tubes, flasks, and other glassware. All components are made of stainless steel. (for all models)
Spring Wire Racks
Cat. No. | Suitable for |
|---|
AAA51522 | CW3-20/P, RW3-2025/P, 2040/P |
AAA51523 | CW3-30/P, RW3-3025/P, 3040/P |

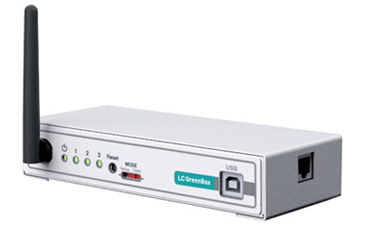

▶ LC GreenBox
 4.png "Heating Bath Circulators(General) 4.png")
Real-time monitoring and control of device operation via mobile app.
Up to 4 devices can be connected at once.
Cat. No. | Description | Suitable for |
|---|
AAAQ1011 | LC GreenBox (2.4GHz, 100~240V, 50/60Hz) | CW3, RW3 models |
.png "Heating Bath Circulators(General).png")
(1).png "Heating Bath Circulators(General)(1).png")
