Vacuum Desiccators (Cylindrical Model)



Features

▶ Maximum vacuum of 1 Torr (1.33×10-4 Mpa) for more than 72 hours
 High quality silicone gasket ensures greaseless airtight seal for the clean and cost effective test environment.
 Highly transparent, shatterproof, non-corrosive, and easy to clean polycarbonate construction.
 Three-way stopcock provides great convenience for consistent and uniform vacuum draw, vacuum release, or gas exchange. The barbed fitting on each side secures attachment of tubing.
 Flange lock holding the top and the bottom together during non-vacuum conditions.
 Various models available with respect to sizes and UVblocking effect.
 Minimizing damages or discoloration of light-sensitive samples (for U/UG models).
 A vacuum gauge attachable at the center of the lid for easy vacuum level checking (for G/UG models).
 The top and bottom of round vacuum desiccators and cylindrical vacuum desiccators are compatible with each other for diverse use.
※ RoHS except for VDP-U models.



Model 1)

VDP-25/25G VDP-25U/25UG

VDP-30/30G VDP-30U/30UG

Internal volume (L / cu ft)

16 / 0.6

25 / 0.9

Gauge range (Mpa)

0 to -0.1

Nozzle (mm / inch, Ø)

9.5 / 0.37

Max. permissible vacuum (Bodies)

1.33×10-4 Mpa

Material

Body / Base

Polycarbonate

Perforated sample tray

Locker

Polypropylene

Vacuum seal

Silicone rubber

Dimension (I.D. × H)

Exterior (mm / inch)

Ø308×374(449) / Ø12.1×14.7(17.7)

Ø385×384(459) / Ø15.2×15.1(18.1)

Net weight (kg / lbs)

2.7 / 5.9

4.0 / 8.8

Cat. No.

Clear body

AAAD3011

AAAD3021

Clear body with Vacuum gauge (G)

AAAD3111

AAAD3121

UV block effect body (U)

AAAD3211

AAAD3221

UV block effect body with Vacuum gauge (UG)

AAAD3311

AAAD3321

1) G models come standard with a vacuum gauge
U models are translucent(amber-colored) vacuum desiccators with ultraviolet block effect.
※ RoHS except for VDP-U models.

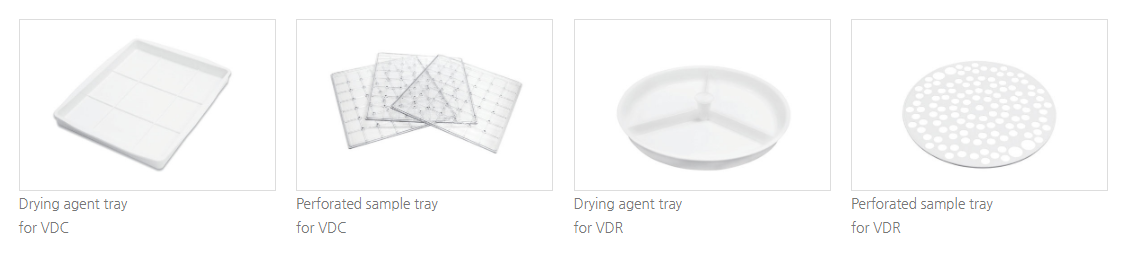

● Accessories & Options



▶ for Vacuum Desiccators (Cubic models)


Cat. No.

Description

VDC-11/11U

VDC-21/21U

VDC-31/31U

VDC-41/41U

VDC0035

Perforated sample tray

-

-

-

VDC0003

-

VDC0037

Drying agent tray

-

-

-

VDC0005

-

VDC0032

Vacuum seal

-

-

-

VDC0033

-

-

-

VDC0015

-

-

-

VDC0034

-

-

-

AAAD4501

Stopcock

EDA4301

Vacuum gauge


▶ for Vacuum Desiccators (Round & Cylindrical models)


Cat. No.

Description

VDR-20/20G
VDR-20U/20UG

VDR-25/25G
VDR-25U/25UG

VDR-30/30G
VDR-30U/30UG

VDP-25/25G
VDP-25U/25UG

VDP-30/30G
VDP-30U/30UG

AAAD1501

Drying agent tray

-

-

-

-

AAAD1502

-

-

-

AAAD1503

-

-

-

AAAD1511

Perforated sample tray

-

-

-

-

AAAD1512

-

-

-

-

AAAD1513

-

-

-

-

AAAD3511

-

-

-

-

AAAD3512

-

-

-

-

VDR0001

Vacuum seal

-

-

-

-

VDR0002

-

-

-

VDR0003

-

-

-

VDR0015

Flange locker

-

-

-

-

VDR0016

-

-

-

VDR0017

-

-

-

AAAD1521

Stopcock

-

-

AAAD3501

-

-

-

EDA4302

Vacuum gauge
