● Optimized Model Configuration
▶ 3 series (KE, ME, PE) according to temperature / temperature and humidity control range.
TH3-KE; -35 - 150°C
TH3-ME; -20 - 150°C
TH3-PE; 0 - 120°C
▶ Standard type Temp. & Humid chamber for selecting the optimized model according to test conditions.
▶ Dedicated stand for convenient use and moving.(option)
▶ Recorder for maintaining test records. (option)
● Structural functional features
▶ Proven reproducibility and reliability with structural design optimized for miniaturization.
▶ Compact design for excellent space saving.
▶ Stable humidity control ability with applying differentiated external humidification system and convenient maintenance for cleaning testing space.
▶ Excellent thermal insulation and sealing to ensure stable temperature and humidity reproducibility even for repeated test use.
▶ The door part has a double sealing structure and excellent airtightness.
● Use Convenience Features

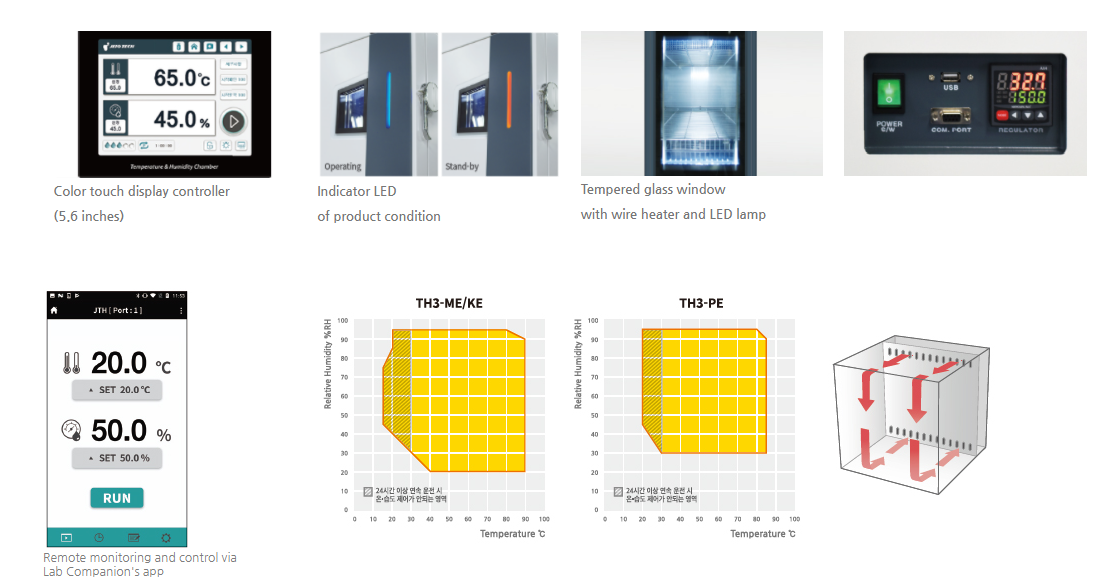

▶ Convenient operation with 5.6 inch color touch display controller.
▶ Possible to check the operation status with graphs.
▶ Water level check function enables water replenishment at the right time.
▶ Water inlet is easy to use with easy cap.
▶ Efficient water supply and recirculation system minimizes water refilling even for long-term high-humidity tests.
▶ Operation and status monitoring from the front of the chamber.
▶ Easy observation of samples with tempered glass door with built in heating wire and LED lamp.
▶ By displaying the operation status of the device with LED colors, convenient to identify chambers status from a far.
▶ The cable port and silicone plug included as standard make it convenient to connect external equipment.
▶ Easy to clean as it is easy to remove refrigerator condenser grill, making it convenient to maintain efficiency of refrigeration.
● Multifunction Control System
▶ Storage and documentation of programs.
▶ Save program information and back up the set values.
▶ RS-232 port (default) and RS-485 port (option) supported.
▶ Control and data processing by connecting up to 32 devices to PC at same time via RS-485 port.
▶ Reliable control with temperature/humidity auto-tuning and temperature calibration.
▶ PID zone subdivided into 9 zones for more precise control stability.
▶ Monitor and control via mobile app anytime, anywhere with LC Connected. (mobile monitoring system) (when purchased LC GreenBox)
▶ Convenient checking with useful graph display.
▶ Save data as excel and text files.
Description | No. |
|---|
Pattern | 100 |
Repeat time | 999 |
Part repeat time 255
| 255 |
Max. segments / pattern | 100 |
Available max. segments | 2000 |
Programmable process time / segment | 99 hour 59 min. |
* It is possible to set 100 segments per pattern, but the maximum number of segments is not 10,000 (100 pattern x 100 segment) but 2,000.
● Outstanding Safety
▶ Electronic over temperature shutdown system.(advanced over temperature (A-OT) limiter)
▶ Independent precision temperature sensor and controller for safer and more accurate over temperature shutdown.
▶ General-type over power shutdown system. (B-OT, backup over temperature limiter)
▶ A backup device for electronic system failure, mechanically preventing over temperature even when it occurs electronic errors.
▶ Ensures that the surface temperature is kept below 60°C.
▶ Low and empty water level alarm and automatic shut off.
▶ Door open warning and automatic shut off.
▶ Overcurrent and short circuit protection of device.
▶ Fuse installed for each heater for safety.
▶ Auto stop when operating current of compressor is overloaded.
.png "Temperature _ Humidity Chamber Tabletop type (TH3-PE).png")
Model | TH3-PE-025 | TH3-PE-065 | TH3-PE-100 |
|---|
Interior dimensions |
Chamber volume (L / cu ft) | 25 / 0.9 | 65 / 2.3 | 100 / 3.5 |
Width (mm / inch) | 350 / 13.8 | 400 / 15.7 | 500 / 19.7 |
Depth (mm / inch) | 220 / 8.7 | 330 / 13.0 | 380 / 15.0 |
Height (mm / inch) | 350 / 13.8 | 495 / 19.5 | 530 / 20.9 |
Quantity of shelves (standard/max.) | 2/7 | 2/10 | 2/10 |
Distance of between shelves (mm / inch) | 20 / 0.8 | 20 / 0.8 | 20 / 0.8 |
Max. load per shelf (kg /lbs) | 25 / 55.1 | 25 / 55.1 | 25 / 55.1 |
Permitted total load (kg / lbs) | 65 / 143.3 | 65 / 143.3 | 65 / 143.3 |
Cable port (Ø, mm / inch) | 50 / 2.0 | 50 / 2.0 | 50 / 2.0 |
Water tank capacity (L / cu ft) | 8 / 0.3 | 12 / 0.4 | 12 / 0.4 |
Weight (kg / lbs) | 80 / 176.4 | 110 / 242.5 | 130 / 286.6 |
Temperature data |
Range without humidity (℃ / ℉) | 0 to 120
/ 32 to 248 | 0 to 120
/ 32 to 248 | 0 to 120
/ 32 to 248 |
Fluctuation (±℃ / ℉) 1) | 0.3 / 0.54 | 0.3 / 0.54 | 0.3 / 0.54 |
Variation (±℃ / ℉) 1) | 0.5 / 0.9 | 0.5 / 0.9 | 0.5 / 0.9 |
Heating time (0℃ to 90℃) (min) | 40 | 40 | 40 |
Cooling time (90℃ to 0℃) (min) | 35 | 35 | 35 |
Humidity data (※ Ref.: Temp./ Humid. control range graph) |
Range (%RH) | 30 to 95 | 30 to 95 | 30 to 95 |
Fluctuation (±%RH) 1) | 1 | 1 | 1 |
Variation (±%RH) 1) | 3 | 3 | 3 |
Electrical data & Ordering information |
Electrical requirements (AC230V, 1ph, 60Hz) | 9.2A | 11.1A | 13.8A |
Cat. No. | AAH822132K | AAH822232K | AAH822332K |
Electrical requirements (AC230V, 1ph, 50Hz) | 9.2A | 11.1A | 13.8A |
Cat. No. | AAH822132K | AAH822232K | AAH822332K |
※ The above specifications are tested according to DIN 12880 and IEC 60068 standards.
※ Permissible environmental conditions are 18 - 30°C (recommended 20°C), 85% RH or less, under 2000m above sea level.
※ The DI water condition is pH 6.2 - 7.2 and the electrical conductivity is less than 20㎲/cm.
1) The set value is set under the conditions of 25°C, 60% RH.
2) Heating time condition value: TH3-KE (-40°C to 100°C), TH3-ME (-20°C to 100°C), TH3-PE (0°C to 100°C)
3) Cooling time condition value: TH3-KE (20°C to -40°C), TH3-ME (20°C to -20°C), TH3-PE (20°C to 0°C)
Model | TH3-PE-025 | TH3-PE-065 | TH3-PE-100 |
|---|
W (mm / inch) | 550 / 21.7 | 600 / 23.6 | 700 / 27.6 |
D (mm / inch) | 880 / 34.6 | 1050 / 41.3 | 1110 / 43.7 |
H (mm / inch) | 915 / 36.0 | 1060 / 41.7 | 1100 / 43.3 |
A (mm / inch) | 211 / 8.3 | 276 / 10.9 | 276 / 10.9 |
B (mm / inch) | 495 / 19.5 | 580 / 22.8 | 580 / 22.8 |
E (mm / inch) | 170 / 6.7 | 170 / 6.7 | 170 / 6.7 |
F (mm / inch) | 229 / 9.0 | 229 / 9.0 | 229 / 9.0 |
● Accessories & Options

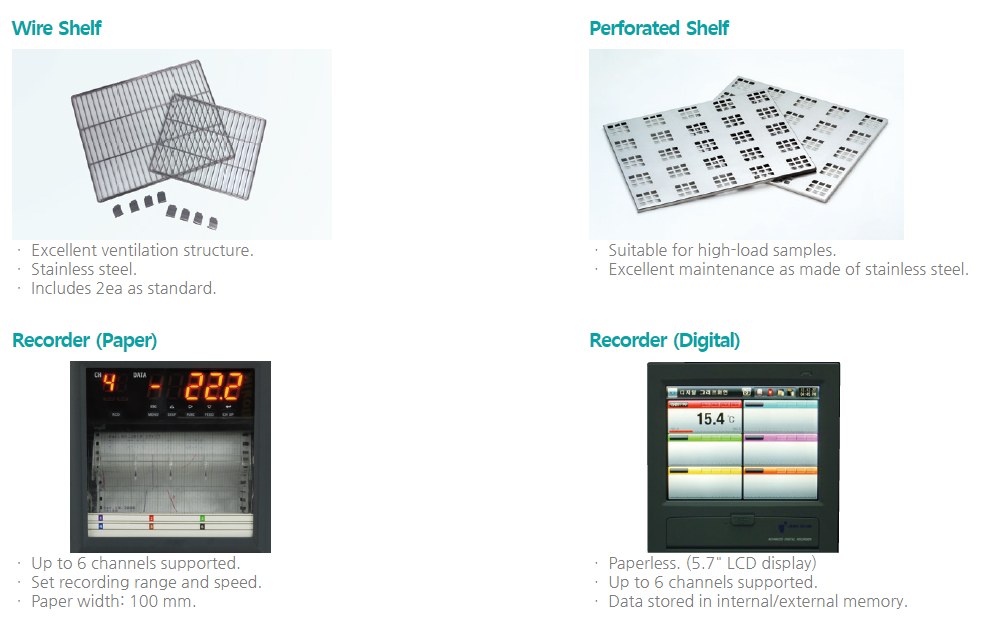

%203.png)

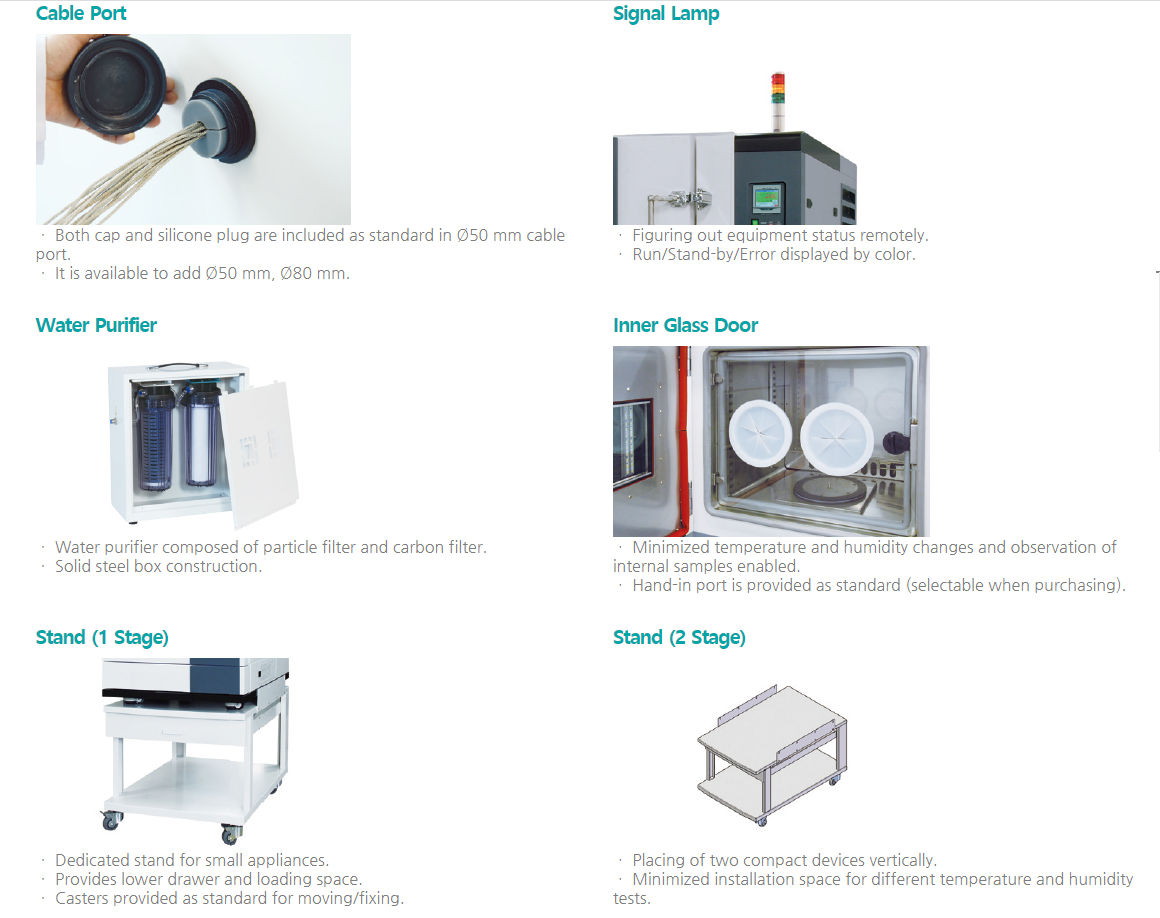

%204.png)
Model | Cable Port
(ø50) | Cable Port
(ø80) | Wire
Shelf | Perforated
Shelf | Signal
Lamp | Recorder
(Paper) | Recorder
(Digital) | Water
Purifier | Direct
Water
System | Inner
Glass Door | Stand
(1 stage) | Stand
(2 stage) |
|---|
TH3-PE-025 | AAA8T612 | N/A | RTD0679 | AAA80602-6 | AAA80550 | AAA8T504 | AAA8T506 | AAA8T621 | AAA80620 | N/A | AAA80631 | AAA80634 |
TH3-PE-065 | AAA8T612 | AAA8T611 | RTD0680 | AAA80602-7 | AAA80550 | AAA8T504 | AAA8T506 | AAA8T621 | AAA80620 | N/A | AAA80632 | AAA80635 |
TH3-PE-100 | AAA8T612 | AAA8T611 | RTD0681 | AAA80602-8 | AAA80550 | AAA8T504 | AAA8T506 | AAA8T621 | AAA80620 | N/A | AAA80633 | N/A |
