Temperature & Humidity Chamber Tabletop type (TH3-ME)
● Optimized Model Configuration
▶ 3 series (KE, ME, PE) according to temperature / temperature and humidity control range.
TH3-KE; -35 - 150°C
TH3-ME; -20 - 150°C
TH3-PE; 0 - 120°C
▶ Standard type Temp. & Humid chamber for selecting the optimized model according to test conditions.
▶ Dedicated stand for convenient use and moving.(option)

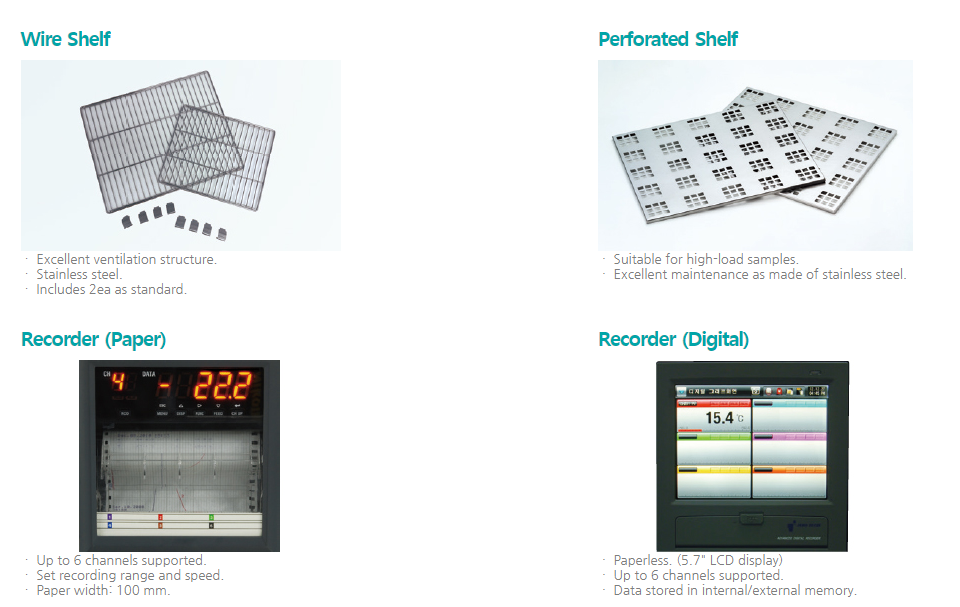

▶ Recorder for maintaining test records. (option)
● Structural functional features
▶ Proven reproducibility and reliability with structural design optimized for miniaturization.
▶ Compact design for excellent space saving.
▶ Stable humidity control ability with applying differentiated external humidification system and convenient maintenance for cleaning testing space.
▶ Excellent thermal insulation and sealing to ensure stable temperature and humidity reproducibility even for repeated test use.
▶ The door part has a double sealing structure and excellent airtightness.
● Use Convenience Features

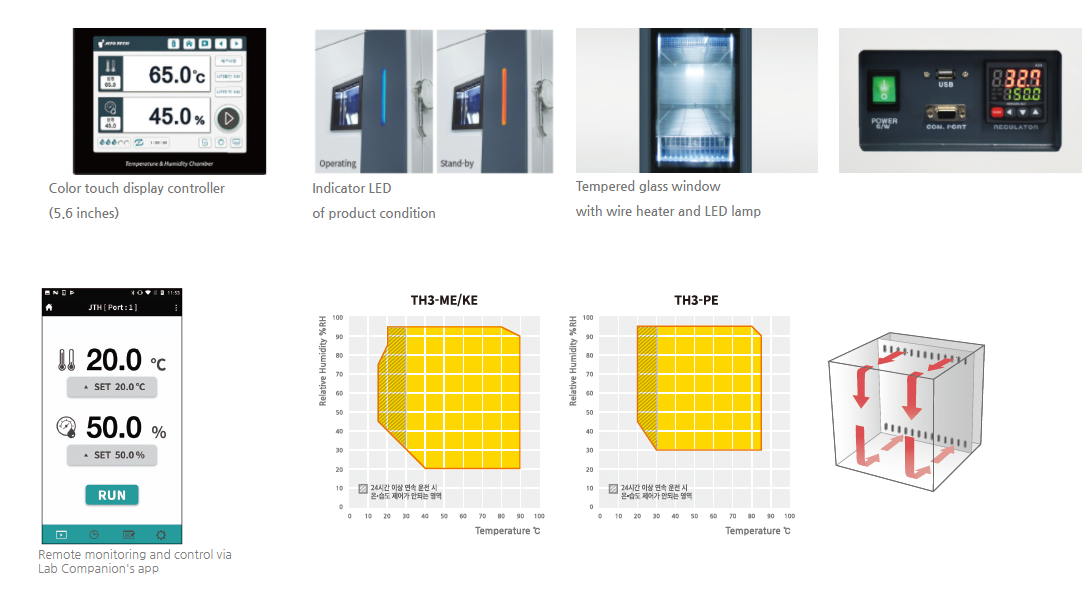

▶ Convenient operation with 5.6 inch color touch display controller.
▶ Possible to check the operation status with graphs.
▶ Water level check function enables water replenishment at the right time.
▶ Water inlet is easy to use with easy cap.
▶ Efficient water supply and recirculation system minimizes water refilling even for long-term high-humidity tests.
▶ Operation and status monitoring from the front of the chamber.
▶ Easy observation of samples with tempered glass door with built in heating wire and LED lamp.
▶ By displaying the operation status of the device with LED colors, convenient to identify chambers status from a far.

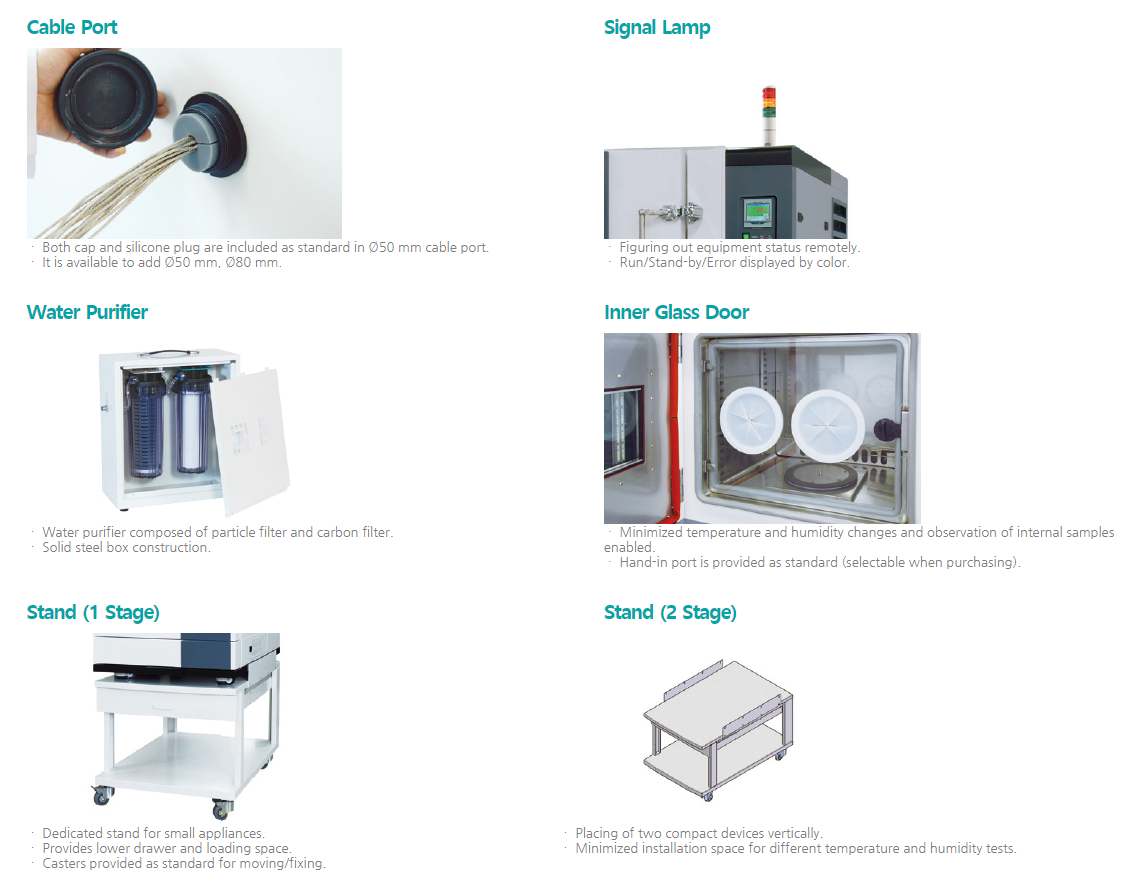

▶ The cable port and silicone plug included as standard make it convenient to connect external equipment.
▶ Easy to clean as it is easy to remove refrigerator condenser grill, making it convenient to maintain efficiency of refrigeration.
● Multifunction Control System
▶ Storage and documentation of programs.
▶ Save program information and back up the set values.
▶ RS-232 port (default) and RS-485 port (option) supported.
▶ Control and data processing by connecting up to 32 devices to PC at same time via RS-485 port.
▶ Reliable control with temperature/humidity auto-tuning and temperature calibration.
▶ PID zone subdivided into 9 zones for more precise control stability.
▶ Monitor and control via mobile app anytime, anywhere with LC Connected. (mobile monitoring system) (when purchased LC GreenBox)
▶ Convenient checking with useful graph display.
▶ Save data as excel and text files.
● Outstanding Safety
▶ Electronic over temperature shutdown system.(advanced over temperature (A-OT) limiter)
▶ Independent precision temperature sensor and controller for safer and more accurate over temperature shutdown.
▶ General-type over power shutdown system. (B-OT, backup over temperature limiter)
▶ A backup device for electronic system failure, mechanically preventing over temperature even when it occurs electronic errors.
▶ Ensures that the surface temperature is kept below 60°C.
▶ Low and empty water level alarm and automatic shut off.
▶ Door open warning and automatic shut off.
▶ Overcurrent and short circuit protection of device.
▶ Fuse installed for each heater for safety.
▶ Auto stop when operating current of compressor is overloaded.
