Rotator
● Performance
▶ Microprocessor PID control.
▶ Adjustable speed range from 2 to 70 rpm.
▶ Fully adjustable tilt angle up to 90°.
- Horizontal for minimal mixing and vertical for full end-over-end mixing.
▶ Digital speed control providing gentle rotating even at low speed.
▶ Low-profile design with rubber feet for minimal vibration and noise.
● Convenience
▶ Simple fixture of accessories equipped to disk for quick installation and removal.
▶ Various selection of optional tubes and flask clamp holder disks to accommodate most application.
▶ Available to rotary maximum 120 test tubes simultaneously with use of two tube holders by optional dual holder accessory.
▶ Vivid and colorful vacuum fluorescent display (VFD) with touchsensitive keypad.
▶ One-touch timer range: 1 min. to 99 hr. 59 min.
▶ Compact and lightweight design allow for use in cold rooms or incubators.
● Safety
▶ Stepping motor with self-protection function for advanced durability.
▶ Self-diagnostic function identifying errors.
▶ Its polypropylene main body is highly chemical-resistant and easy-to-clean.
▶ Over-current protection.
Model | CRT-350 | |
|---|---|---|
Control system | PID feedback control | |
Display | VFD | |
Shaking system | Motion type | Orbital |
Speed range (rpm) | 2 to 70 | |
Tilt angle | 0 to 90° | |
Max. load (kg / Ibs) | 4 / 8.8 | |
Material | Disk (optional) | Aluminum |
Body | PP (polypropylene) | |
Dimension | Exterior with disk (optional) (W×D×H) (mm / inch) | 320x325x463 / 12.6x12.8x18.2 |
Net weight with disk (optional) (kg / Ibs) | 7.5 / 16.5 | |
Electrical requirements | AC 100 to 240 V, 50/60 Hz | |
Cat. No. | KR plug | AAH3E115K |
US plug | AAH3E115U | |
※ Permissible environmental conditions: temperature (5-40°C) and relative humidity (up to 80%).

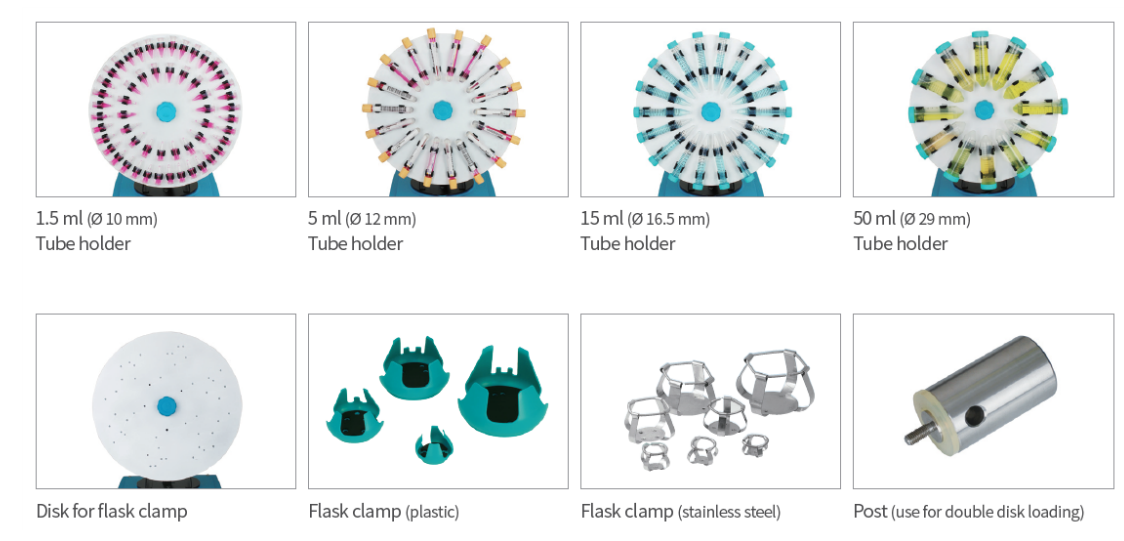

Tube holder set with disk
Erlenmeyer flask clamp holders
Tube holder fixture for double stacking
