Ductless Fume Hoods
● Performance
▶ A variety of filters and work surfaces available to suit your specific experimental needs. (refer to accessory section)

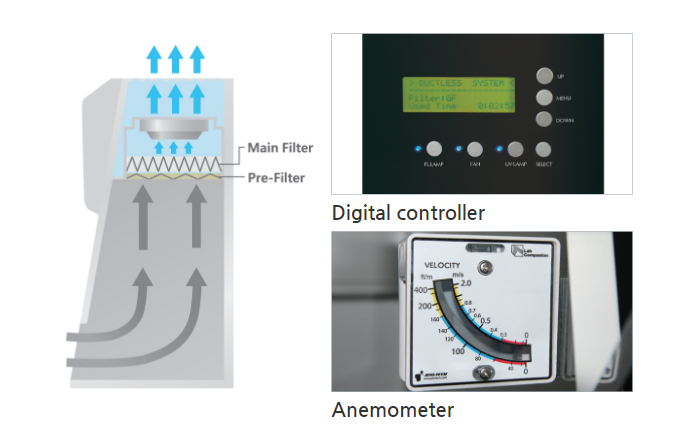

▶ High-quality polyester fiber pre-filter for trapping larger particles and increasing the life of the main HEPA filter.
▶ Large-capacity blower maintaining sufficient intake flow rate and reducing noise. (less than 55 dB under normal operation)
▶ Fluorescent light installed outside the workspace in order to prevent the airflow hindrance as well as the contamination while maintaining illumination intensity.
● Convenience
▶ Easy monitoring of the internal airflow speed thanks to built-in anemometer.
▶ Comfortable front access to cartridge type of filters for easy replacement.
▶ Built-in utility hole for easily routing the cords or wires of the equipment placed inside the hood.
▶ Fully or half openable front door for convenient transport of experimental apparatuses and equipment into or out of the workspace.
● Safety
▶ Efficiency and capacity of activated carbon filters: BS 7989:2001
▶ Structure, electrical outlet, lighting, and sound level: BS 7258-1:1994
▶ Local smoke, large volume visualization, face velocity, and tracer gas: ANSI/ASHRAE 110-1995 and NF EN 14175-1
Model | DLH-01G | DLH-11G |
|---|
Controller | Microprocessor control |
Face velocity | Initial set point: 0.4m/s, 80fpm |
Air flow meter | Swing vane type |
Main filter | Chemical Filter (optional 6 different filters) |
Pre filter | Washable high efficiency nylon filter |
Materials | Main body, window (front / side) | 2.0mm steel (epoxy powder-coated), 8mm / 6mm thick acrylic resin |
Work surface | Optional 6 different work surfaces |
Fluorescent light intensity | > 600lux |
Noise level | 55dB under normal operation |
Dimension(W×D×H) | Interior (mm / inch) | 880×640×800 / 34.6×25.2×31.5 | 1180×640×800 / 46.5×25.2×31.5 |
Exterior without stand (mm / inch) | 900×660×1250 / 35.4×26×49.2 | 1200×660×1250 / 47.2×26×49.2 |
Exterior with stand (mm / inch) | 900×660×1985 / 35.4×26×78.1 | 1200×660×1985 / 47.2×26×78.1 |
Net weight (body) (kg / lbs) | 100 / 220.5 | 118 / 260.1 |
Net weight (body + stand) (kg / lbs) | 120 / 264.6 | 140 / 308.6 |
Electrical requirements (230V) | 50Hz, 0.6A | 60Hz, 0.7A | 50Hz, 0.6A | 60Hz, 0.7A |
Cat. No. | AAHB2002K | AAHB2002K | AAHB2012K | AAHB2012K |
Electrical requirements (100V, 120V) | 100V, 50Hz, 1.5A | 120V, 60Hz, 1.3A | 100V, 50Hz, 1.5A | 120V, 60Hz, 1.3A |
Cat. No. | AAHB2004U | AAHB2003U | AAHB2014U | AAHB2013U |
※ Above specifications can be changed without prior notice.
Cat. No. | Description | Application | DLH-01G | DLH-11G |
|---|
AAAB2543 | Complex carbon filter | All common laboratory chemicals, especially VOC, Organic, Benzene, Toluene, etc |  | - |
AAAB2544 | - | |
AAAB2545 | Acid filter 1) | An acidic solvent ; Acetic acid, etc | | - |
AAAB2546 | - | |
AAAB2547 | Formaldehyde filter | Formadehyde applications | | - |
AAAB2548 | - | |
AAAB2549 | Ammonia / Amines filter | Ammonia/Amines by chemisorptions | | - |
AAAB2550 | - | |
EDA9193 | HEPA filter | Biohazardous aerosols and other visible and non-visible particles
(filtration efficiency: 99.99% at 0.3 microns) | | - |
EDA9194 | - | |
EDA9196 | Pre filter | - | | - |
EDA9198 | - | |
1) Please do not use high percentage of reactive acid such as perchloric acid.
Cat. No. | Description | DLH-01G | DLH-11G |
|---|
AAAB2501 | Work surface (SUS #304) | | - |
AAAB2502 | - | |
AAAB2503 | Work surface (SUS #316) | | - |
AAAB2504 | - | |
AAAB2505 | Work surface (ceramite) | | - |
AAAB2506 | - | |
AAAB2507 | Work surface (polypropylene) | | - |
AAAB2508 | - | |
AAAB2509 | Work surface (bakelite) | | - |
AAAB2510 | - | |
AAAB2511 | Work surface (PVC) | | - |
AAAB2512 | - | |
AAAB2521 | Stand with casters | | - |
AAAB2522 | - | |
Gas detector / Gas detecting tubes
Cat. No. | Description | DLH-01G | DLH-11G |
|---|
AAAB2531 | Gas detector
(KITAGAWA AP-20) | | |
EAA1550 | Gas detecting tube
(benzene, GASTEC-121SP (0.5-10ppm)) | | |
EAA1551 | Gas detecting tube
(yoluene, GASTEC-122L (1-100ppm)) | | |
EAA1552 | Gas detecting tube
(acetic acid, GASTEC-81L (0.125-25ppm)) | | |
EAA1553 | Gas detecting tube
(chloroform, GASTEC-137 (4-400ppm)) | | |
EAA1554 | Gas detecting tube
(formaldehyde, GASTEC-91LL (0.05-1ppm)) | | |
EAA1555 | Gas detecting tube
(ammonia, GASTEC-3L (0.5-60ppm)) | | |
