Hotplate Stirrers(Basic)






● Performance & Convenience

▶ Integrated design of the heater and the top plate provides exceptional heat transfer rate and quick heat up capability.
▶ Fast and precise stirring operations are enabled by BLDC motor and special magnet with extremely strong magnetic coupling power.
▶ Instant halt of the stirring operation due to the exceptionally fast response characteristics.
▶ Smooth-start mechanism provides virtually no decoupling of stir bars even with viscous media.
▶ Large stirring capacity up to 20 liter in case of water.
▶ Non-slip heating bath with concavo-convex bottom prevents unintentional slips of the bath. (optional)
▶ A transparent safety shield protects users from liquid splashes. (optional)
▶ Support rod allows for diverse flexibility in configuring other test equipment and accessories. (optional)


● Safety

▶ Built in thermal shutdown and current limit protection.
▶ Hot top warning Indicator for preventing accidental injuries.
※ CSA except for TM-18QG. ※ RoHS for TM-14SG.

Model

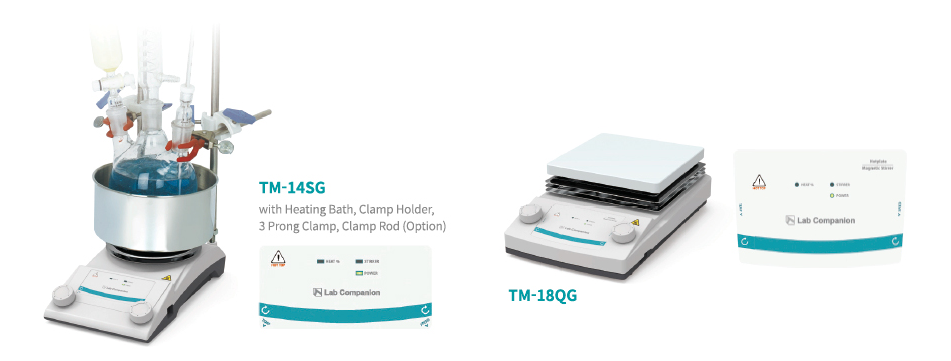

TM-14SG

TM-14RB

TM-17SG

TM-17RB

TM-18QG

Heating

Temperature range (℃ / ℉)

Max. 350 / 662

Control

Scale

Heating power (W)

600

800

Stirring

Speed range (rpm)

50 to 2,000

Capacity

(L / cu ft, H2O)

20 / 0.71

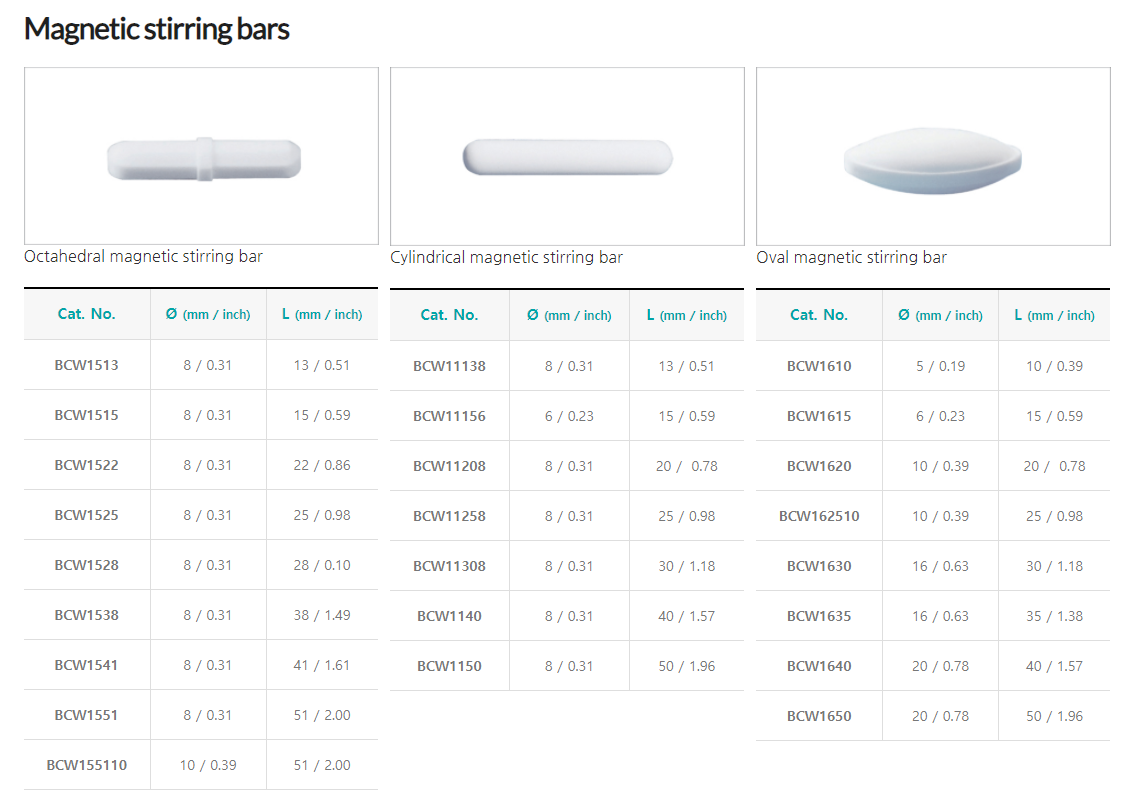

Magnetic bar, Max.
(ØxL, mm / Inch)

8 x 40 / 0.31 x 1.57

Safety

Hot top indicator (℃ / ℉)

Warning lamp (50 / 122)

Over temp.

Top plate / Main body / PCB

Over current

Current limit protection

Motor

BLDC motor

Load, Max. (kg / Ibs)

25 / 55.12

Top plate

Shape

Round type

Square type

Material

Ceramic coated aluminum

Dimension
(Ø or WxD) (mm / inch)

140 / 5.51

170 / 6.69

180x180/ 7.08x7.08

Body

Shape

Straight body

Round handles

Straight body

Round handles

Straight body

Material

Aluminum

Dimension
(WxDxH) (mm / inch)

161x290x100/ 6.34x11.42x3.94

210x294x99/ 8.27x11.57x3.9

191x330x101/ 7.52x12.99x3.98

240x324x100/ 9.45x12.76x3.94

209x326x102/ 8.22x12.83x4.0

Net weight (kg / Ibs)

2.8 / 6.17

3 / 6.61

3.5 / 7.72

3.6 / 7.94

3.8 / 8.37

Electrical requirements

(230V, 50/60Hz)

3.0 A

4.0 A

Cat. No.

AAH34245K

AAH34315K

AAH34275K

AAH34325K

AAH34285K

Electrical requirements

(120V, 60Hz)

5.0 A

6.7A

Cat. No.

AAH34243U

AAH34313U

AAH34273U

AAH34323U

AAH34283U

※ Permissible environmental conditions: temperature (5-40℃) and relative humidity (up to 80%).
※ CSA except for TM-18QG. ※ RoHS for TM-14SG.








Cat. No.

Description

MTT0132

Support rod, M10 (Ø12×400mm / Ø0.47x15.75˝)

AAA37512

Clamp holder, C-10 (Al body, Ø17mm / Ø0.66˝)

AAA37513

Clamp holder, C-7 (Al body, Ø12mm / Ø0.47˝)

AAA37514

Clamp holder, C-5 (PP body, Ø12mm / Ø0.47˝)

BEA1000014

2 Prong clamp (60mm / 2.36˝ grip)




Cat. No.

Description

Suitable for

AAA34501

Temperature Probe (PT 100, Max. 250℃, SN-8-4 connector sensor)

TS series

AAA34502

Temperature Probe (PT 100, Max. 350℃, SN-8-4 connector sensor)

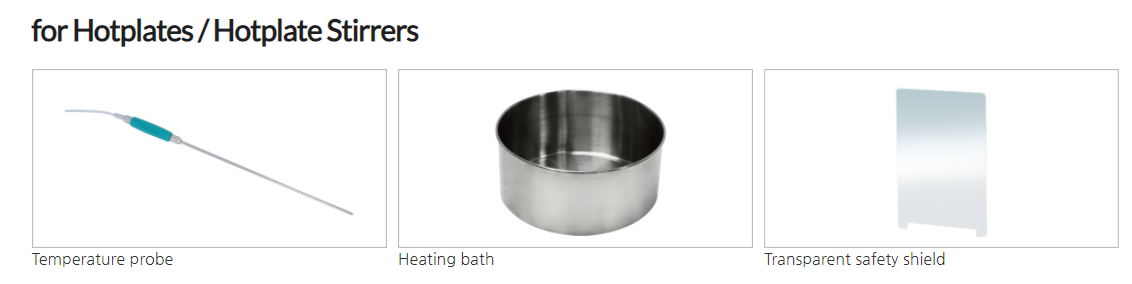

HPS0012

Heating Bath

T-14SG/RB, TM-14SG/RB, TS-14SG

HPS0015

Heating Bath

T-17SG/RG, TM-17SG/RB, TS-14SG

HPS0059

Transparent Safety Shield (PC)

T-14SG/RB, TM-14SG/RB, TS-14SG

HPS0039

Transparent Safety Shield (PC)

T-17SG/RB, TM-17SG/RB, TS-17SG

HPS0137

Sensor Holder (PP body, Hole 1: Ø11mm / Ø0.43˝, Hole 2: Ø10mm / Ø0.39˝, Hole 3: Ø4.2mm / Ø0.16˝)

TS series
