Hotplates





● Performance & Convenience

▶ Microprocessor PID temperature control.
▶ Auto-tuning and temperature calibration functions.
▶ Multi-functional temperature control modes. (optimal / fast / slow / user / point)
▶ Optimum heating level is adjustable from 0 to 100%.
▶ Integrated design of the heater and the top plate provides exceptional heat transfer rate and quick heat up capability.
▶ Precise temperature is set by digital display and optimum heating level is adjustable.
▶ Advanced dual wait on/off timer modes.
- User can set timer to starts immediately after the timer setting or only after reaching the set temp.
▶ Separate operation RUN/STOP button.
▶ Non-slip heating bath with concavo-convex bottom prevents unintentional slips of the bath. (optional)
▶ A transparent safety shield protects users from liquid splashes. (optional)
▶ Support rod allows for diverse flexibility in configuring other test equipment and accessories. (optional)


● Safety

▶ Built in thermal shut off and current limit protection.
▶ High and low temperature limit setting for user convenience and safety.
▶ Hot top warning indicator for preventing accidental injuries.
▶ Keypad lock function prevents accidental changes during operation.

Model

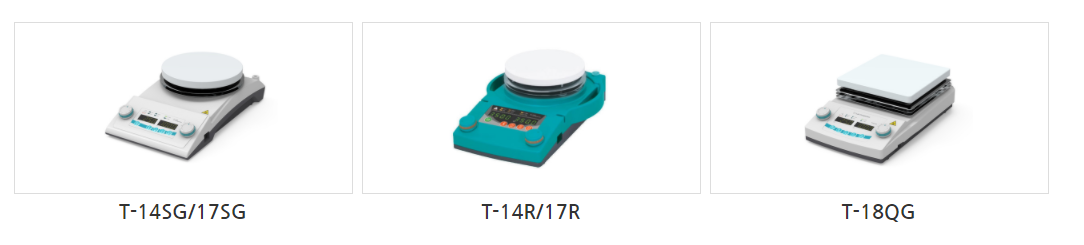

T-14SG

T-14R

T-17SG

T-17R

T-18QG

Heating

Temperature range

(℃ / ℉)

Max. 350 / 662

Control

Feedback control with PID

Display

LED digital (0.1℃ resolution)

Heating power (W)

600

800

Safety

Hot top indicator

(℃ / ℉)

Warning lamp (50 / 122)

Over temp.

Top plate / Main body / PCB

Over current

Current limit protection

Timer

2 type, 1min. to 99 hr. 59 min.

Load, Max. (kg / Ibs)

25 / 55.1

Top plate

Shape

Round type

Square type

Material

Ceramic coated aluminum

Dimension
(Ø or WxD) (mm / inch)

140 / 5.5

170 / 6.7

180x180/ 7.08x7.08

Body

Shape

Straight body

Round handles

Straight body

Round handles

Straight body

Material

Aluminum

Dimension
(WxDxH) (mm / inch)

161x290x100/ 6.34x11.42x3.94

210x294x99/ 8.27x11.57x3.90

191x330x101/ 7.52x12.99x3.98

240x324x100/ 9.45x12.76x3.94

209x326x102/ 8.22x12.83x4.0

Net weight (kg / Ibs)

2.2 / 4.9

2.4 / 5.3

2.9 / 6.4

3 / 6.6

3.8 / 8.37

Electrical requirements (230V, 50/60Hz)

3.0 A

4.0 A

Cat. No.

AAH35045K

AAH35115K

AAH35075K

AAH35125K

AAH35085K

Electrical requirements (120V, 60Hz)

5.0 A

6.7 A

Cat. No.

AAH35043U

AAH35113U

AAH35073U

AAH35123U

AAH35083U

※ Permissible environmental conditions: temperature (5 - 40℃) and relative humidity (up to 80%).
※ CSA except for T-18Q. ※ RoHS for T-14S.


Cat. No.

Description

MTT0132

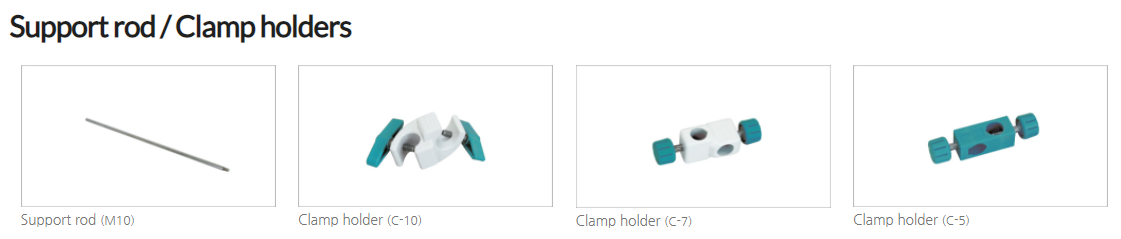

Support rod, M10 (Ø12×400mm / Ø0.47x15.75˝)

AAA37512

Clamp holder, C-10 (Al body, Ø17mm / Ø0.66˝)

AAA37513

Clamp holder, C-7 (Al body, Ø12mm / Ø0.47˝)

AAA37514

Clamp holder, C-5 (PP body, Ø12mm / Ø0.47˝)

BEA1000014

2 Prong clamp (60mm / 2.36˝ grip)





Cat. No.

Description

Suitable for

AAA34501

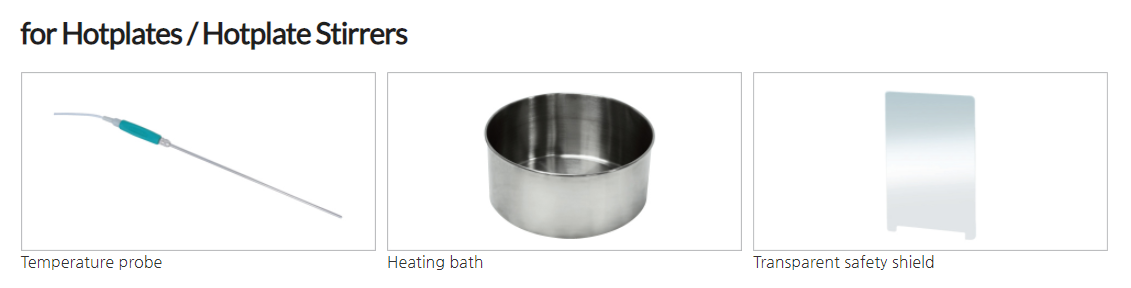

Temperature Probe (PT 100, Max. 250℃, SN-8-4 connector sensor)

TS series

AAA34502

Temperature Probe (PT 100, Max. 400℃, SN-8-4 connector sensor)

HPS0012

Heating Bath

T-14SG/RB, TM-14SG/RB, TS-14SG

HPS0015

Heating Bath

T-17SG/RB, TM-17SG/RB, TS-14SG

HPS0059

Transparent Safety Shield (PC)

T-14SG/RB, TM-14SG/RB, TS-14SG

HPS0039

Transparent Safety Shield (PC)

T-17SG/RB, TM-17SG/RB, TS-17SG

HPS0137

Sensor Holder (PP body, Hole 1: Ø11mm / Ø0.43˝, Hole 2: Ø10mm / Ø0.39˝, Hole 3: Ø4.2mm / Ø0.16˝)

TS series
