Hotplate Stirrers(Advanced)






● Performance & Convenience


▶ Microprocessor PID temperature control.

▶ Feedback control allows constant stirring speed.

▶ Auto-tuning and temperature calibration functions.

▶ Multi-functional temperature control modes. (optimal / fast / slow / user / point)

▶ Optimum heating level is adjustable from 0 to 100%.

▶ Integrated design of the heater and the top plate provides exceptional heat transfer rate and quick heat up capability.

▶ Fast and precise stirring operations are enabled by BLDC motor and special magnet with extremely strong magnetic coupling power.

▶ Smooth-start mechanism provides virtually no decoupling of stir bars even with viscous media.

▶ Instant halt of the stirring operation.

▶ Precise temperature is set by digital display and optimum heating level is adjustable.

▶ Advanced dual wait on/off timer modes.

- User can set timer to starts immediately after the timer setting or only after reaching the set temp.

▶ Separate operation RUN/STOP button.

▶ Provided temperature probe detects the actual temperature of media in real time. (PT100, max. 250℃, SN-8-4 connector sensor)



● Safety


▶ Hot top warning Indicator, built in thermal shut off, current limit protection.

▶ High and low temperature limit setting for user convenience and safety.

※ CSA except for TS-18QG. / ※ RoHS except for TS-17SG, 18QG.


Model

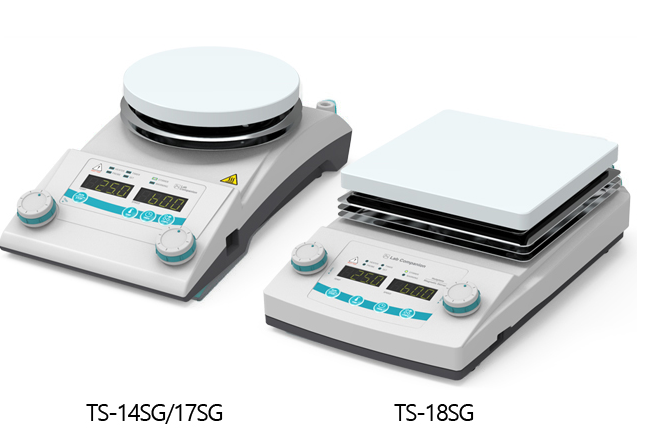

TS-14SG

TS-17SG

TS-18QG

Heating

Temperature range (℃ / ℉)

Max. 350 / 662

Control

Feedback control with PID

Display

LED digital (0.1℃ resolution)

Heating power (W)

600

800

800

Stirring

Speed range (rpm)

30 to 2,000

Capacity (L / cu ft, H2O)

20 / 0.71

Magnetic bar, Max. (ØxL, mm / Inch)

8 x 40 / 0.31 x 1.57

Safety

Hot top indicator (℃ / ℉)

Warning lamp (50 / 122)

Over temp.

Top plate / Main body / PCB

Over current

Current limit protection

Motor

BLDC motor

Timer

2 type, 1min. to 99 hr. 59 min.

Load, Max (kg / Ibs)

25 / 55.1

Top plate

Shape

Round type

Square type

Material

Ceramic coated aluminum

Dimension (Ø or WxD) (mm / inch)

140 / 5.51

170 / 6.69

180x180 / 7.08x7.08

Body

Shape

Straight body

Material

Aluminum

Dimension (WxDxH) (mm / inch)

161x290x100 / 6.34x11.42x3.94

191x330x101 / 7.52x12.99x3.98

209x326x102 /  8.22x12.83x4.0

Net weight (kg / Ibs)

2.8 / 6.17

3.5 / 7.72

3.8 / 8.37

Electrical requirements (230V, 50/60Hz)

3.0 A

4.0 A

Cat. No.

AAH34445K

AAH34475K

AAH34485K

Electrical requirements (120V, 60Hz)

5.0 A

6.7A

Cat. No.

AAH34443U

AAH34473U

AAH34483U

※ Permissible environmental conditions: temperature (5-40℃) and relative humidity (up to 80%).
※ CSA except for TS-18QG.
※ RoHS except for TS-17SG, 18QG.









Cat. No.

Description

MTT0132

Support rod, M10 (Ø12×400mm / Ø0.47x15.75˝)

AAA37512

Clamp holder, C-10 (Al body, Ø17mm / Ø0.66˝)

AAA37513

Clamp holder, C-7 (Al body, Ø12mm / Ø0.47˝)

AAA37514

Clamp holder, C-5 (PP body, Ø12mm / Ø0.47˝)

BEA1000014

2 Prong clamp (60mm / 2.36˝ grip)




Cat. No.

Description

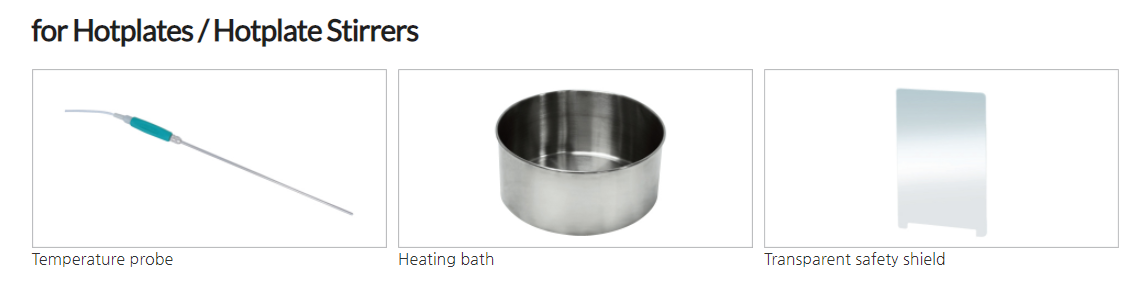

Suitable for

AAA34501

Temperature Probe (PT 100, Max. 250℃, SN-8-4 connector sensor)

TS series

AAA34502

Temperature Probe (PT 100, Max. 350℃, SN-8-4 connector sensor)

HPS0012

Heating Bath

T-14SG/RB, TM-14SG/RB, TS-14SG

HPS0015

Heating Bath

T-17SG/RG, TM-17SG/RB, TS-14SG

HPS0059

Transparent Safety Shield (PC)

T-14SG/RB, TM-14SG/RB, TS-14SG

HPS0039

Transparent Safety Shield (PC)

T-17SG/RB, TM-17SG/RB, TS-17SG

HPS0137

Sensor Holder (PP body, Hole 1: Ø11mm / Ø0.43˝, Hole 2: Ø10mm / Ø0.39˝, Hole 3: Ø4.2mm / Ø0.16˝)

TS series
