Incubators (General)




Performance


▶ Temperature range from ambient +5°C to 70°C.

 Microprocessor PID control / Temperature calibration / Automatic tuning.

 Vibration-free design ideal for yeast cultivation.

- Air-jacked natural convection is beneficial for Uniform temperature distribution and minimal sample contamination caused by external air intrusion.

 Durable incoloy heating element with radiator fans for efficient heat dissipation.



● Convenience


 Intuitive control panel with bright LED display. (0.1℃resolution)

 Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)

 Convenient preset function for 3 most commonly used temperature settings.

 Convenient sample monitoring without affecting chamber temperature via the inner tempered-glass door.

 Corrosion-resistant stainless steel interior with rounded corners for easy cleaning and optimal airflow.

 Fully insulated dual-wall door with magnetic rubber gasket.

 Built-in cable port to use other instruments inside the chamber. (diameter: 38mm)

 RS-232 interface for external control and data collection.

 Stackable up to 2 units using the optional stacking kit. (optional)



● Safety


 Automatic run after power interruption.

 Keypad lock function prevents accidental changes during operation.

 Over-temperature and over-current protection.

 Audible and visible open door alarms.


Model

IB-05G

IB-15G

IB-25G

Chamber volume (L / cu ft)

60 / 2.1

102 / 3.6

151 / 5.3

Temperature

Range (℃ / ℉)

Amb. +5 to 70 / Amb. +9 to 158

Fluctuation 1) at 37℃ (±℃ / ℉)

0.1 / 0.18

0.1 / 0.18

0.2 / 0.36

Variation 1) at 37℃ (±℃ / ℉)

0.6 / 1.08

0.2 / 0.36

0.6 / 1.08

Dimension(W×D×H)

Interior (mm / inch)

400×360×420/ 15.7×14.2×16.5

480×410×520/ 18.9×16.1×20.5

610×460×540/ 24×18×21.3

Exterior (mm / inch)

595×555×745/ 23×22×29

675×605×855/ 27×24×34

805×655×885/ 32×26×35

No. of wire shelf (standard / max.)

 2 / 7

 2 / 11

 2 / 11

Net weight (Kg / lbs)

45 / 99

55 / 121

62 / 136

Electrical requirements (230V, 50 / 60Hz)

1.3A

2.2A

3.1A

Cat. No.

AAH21162K

AAH21172K

AAH21182K

Electrical requirements (120V, 50 / 60Hz)

2.8A

4.6A

6.4A

Cat. No.

AAH21166U

AAH21176U

AAH21186U

1) Technical data according to DIN 12880.

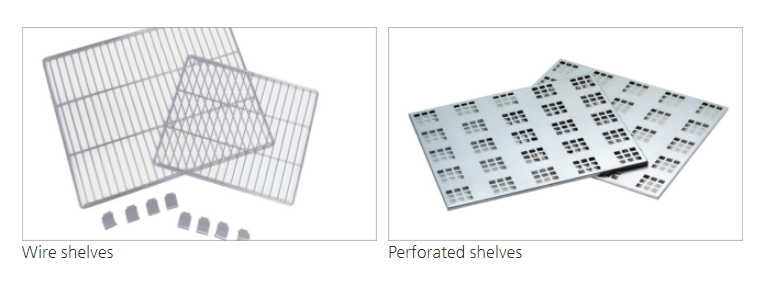

Wire shelves

Stainless steel and electro-polished shelves are readily removed without using tools for easy cleaning.

Cat. No.

Description

Suitable for

Included

Maximum

W×L (mm / inch)

EDA8136

2

4

366×316 / 14.4×12.4

IB-05G

EDA8135

2

6

446×366 / 17.6×14.4

IB-15G

EDA8137

2

7

576×419 / 22.7×16.5

IB-25G

EDA8136

4

8

366×316 / 14.4×12.4

IB-02G-2C

8

16

IB-02G-4C

Perforated shelves

Stainless steel shelves are readily removed without using tools for easy cleaning.

Cat. No.

Description

Suitable for

Maximum

W×L (mm / inch)

AAA12531

4

366×316 / 14.4×12.4

IB-05G

AAA12532

6

446×366 / 17.6×14.4

IB-15G

AAA12535

7

576×419 / 22.7×16.5

IB-25G

AAA12531

8

366×316 / 14.4×12.4

IB-02G-2C

16

IB-02G-4C

Stacking kits

Stackable up to 2 units using exclusive stacking kits for space saving.

Cat. No.

Description

Suitable for

AAA21521

Stacking kits for stackable chambers

IB-05G

AAA21522

Stacking kits for stackable chambers

IB-15G

AAA21523

Stacking kits for stackable chambers

IB-25G
