Incubators (Economy)



● Performance

▶ Temperature range from ambient +3°C to 60°C.
▶ Microprocessor PID control / Temperature calibration / Automatic tuning.
▶ Vibration-free design ideal for yeast cultivation.
- Free from noise, vibration, and mechanical troubles by film type heating method.


● Convenience

▶ Intuitive control panel with bright LED display. (0.1℃resolution)
▶ Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
▶ Convenient preset function for 3 most commonly used temperature settings.
▶ Convenient sample monitoring without affecting chamber temperature via the inner tempered-glass door.
▶ Rounded inner chamber corners for easy cleaning and optimal airflow.
▶ Stackable up to 2 units using the optional stacking kit. (optional)


● Safety

▶ Automatic run after power interruption.
▶ Keypad lock function prevents accidental changes during operation.
▶ Over-temperature and over-current protection.
▶ Audible and visible open door alarms.

Model

IB-01E

IB-11E

IB-21E

Chamber volume (L / cu ft)

65 / 2.3

150 / 5.3

205 / 7.2

Temperature

Range (℃ / ℉)

Amb. +3 to 60 / Amb. +5.4 to 140

Fluctuation 1) at 37℃ (±℃ / ℉)

0.2 / 0.36

0.3 / 0.54

0.1 / 0.18

Variation 1) at 37℃ (±℃ / ℉)

0.6 / 1.08

0.8 / 1.44

1.1 / 1.98

Dimension (W×D×H)

Interior (mm / inch)

423×355×445
/ 16.7×14×17.5
500×515×585
/ 19.7×20.3×23
632×515×630
/ 24.9×20.3×24.8

Exterior (mm / inch)

533×475×725
/ 21×18.7×28.5
595×630×865
/ 23.5×24.8×34
740×630×910
/ 29.1×24.8×35.8

No. of wire shelf (standard/ max.)

2 / 10

2 / 13

2 / 14

Net weight (Kg / lbs)

33 / 72.8

47 / 103.6

57 / 125.7

Electrical requirements (230V, 50 / 60Hz)

1.1A

2.2A

2.4A

Cat. No.

AAH26015K

AAH26025K

AAH26035K

Electrical requirements (120V, 50 / 60Hz)

2.1A

4.2A

4.6A

Cat. No.

AAH26016U

AAH26026U

AAH26036U

1) Technical data according to DIN 12880.

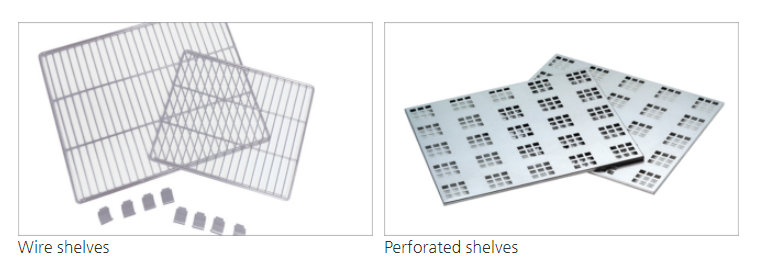

Wire shelves

Stainless steel and electro-polished shelves are readily removed without using tools for easy cleaning.

Cat. No.

Description

Suitable for

Included

Maximum

W×L (mm / inch)

EDA8136

2

5

366×316 / 14.4×12.4

IB-01E

EDA8220

2

7

466×490 / 17.6×19.3

IB-11E

EDA8219

2

7

566×466 / 22.3×17.6

IB-21E

Perforated shelves

Stainless steel shelves are readily removed without using tools for easy cleaning.

Cat. No.

Description

Suitable for

Maximum

W×L (mm / inch)

AAA12531

5

366×316 / 14.4×12.4

IB-01E

AAA12522

7

466×490 / 17.6×19.3

IB-11E

AAA12535

7

566×466 / 22.3×17.6

IB-21E

Stacking kits

Stackable up to 2 units using exclusive stacking kits for space saving.

Cat. No.

Description

Suitable for

AAA26501

Stacking kits for stackable chambers

IB-01E

AAA26502

Stacking kits for stackable chambers

IB-11E

AAA26503

Stacking kits for stackable chambers

IB-21E
