Incubators (2/4-chambers)
● Performance
▶ Temperature range from ambient +5℃ to 70℃.
▶ Independent temperature and timer control of each chamber using microprocessor PID.
▶ Temperature calibration.
▶ Automatic tuning.
▶ Forced air convection generated by a noiseless and powerful sirocco fan ensuring optimal air circulation, temperature uniformity.
● Convenience
▶ Two or four independently controlled 60L chambers merged into a single unit for space saving.
▶ Intuitive control panel with bright LED display. (0.1℃resolution)
▶ Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
▶ Three most commonly used temperature settings programmable.
▶ Corrosion-resistant incoloy sheath heating element and stainless steel interior.
▶ Rounded inner chamber corners for easy cleaning and optimal airflow.
▶ Built-in cable port to use other instruments inside the chamber.
▶ Built-in casters for easy transport and installation.
● Safety
▶ Automatic run after power interruption.
▶ Keypad lock function prevents accidental changes during operation.
▶ Over-temperature and over-current protection.
▶ Audible and visible open door alarms.
Model | IB-02G-2C | IB-02G-4C |
|---|
Chamber volume (L / cu ft) | 60 / 2.1 x 2 chambers | 60 / 2.1 x 4 chambers |
Temperature | Range (℃ / ℉) | Amb. +5 to 70 / Amb. +9 to 158 |
Fluctuation 1) at 37℃ (±℃ / ℉) | 0.1 / 0.18 |
Variation 1) at 37℃ (±℃ / ℉) | 0.6 / 1.08 |
Dimension(W×D×H) | Interior (mm / inch) | 400×360×420 / 15.7×14.2×16.5 x 2 chambers | 400×360×420 / 15.7×14.2×16.5 x 4 chambers |
Exterior (mm / inch) | 570×640×1360 / 22.4×25.2×53.5 | 1170×640×1360 / 46.1×25.2×53.5 |
No. of wire shelf (standard/ max.) | 2 / 7 per chamber | 2 / 7 per chamber |
Net weight (Kg / lbs) | 110 / 242.5 | 168 / 370.4 |
Electrical requirements (230V, 50 / 60Hz) | 4.1A | 4.1A x 2EA |
Cat. No. | AAH2A115K | AAH2A015K |
Electrical requirements (120V, 50 / 60Hz) | 7.5A | 7.5A x 2EA |
Cat. No. | AAH2A116U | AAH2A016U |
1) Technical data according to DIN 12880.

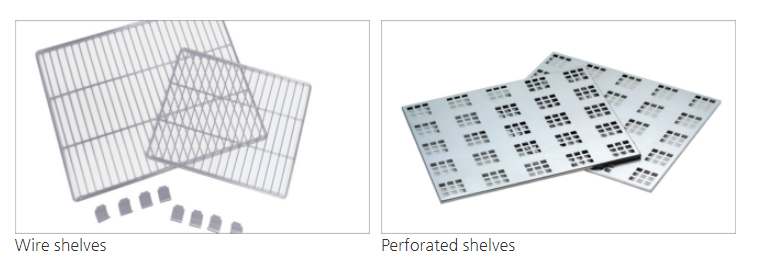

.png "Incubators (2_4-chambers).png")
Wire shelves
Stainless steel and electro-polished shelves are readily removed without using tools for easy cleaning.
Cat. No. | Description | Suitable for |
|---|
Included | Maximum | W×L (mm / inch) |
|---|
EDA8136 | 4 | 8 | 366×316 / 14.4×12.4 | IB-02G-2C |
8 | 16 | IB-02G-4C |
Perforated shelves
Stainless steel shelves are readily removed without using tools for easy cleaning.
Cat. No. | Description | Suitable for |
|---|
Maximum | W×L (mm / inch) |
|---|
AAA12531 | 8 | 366×316 / 14.4×12.4 | IB-02G-2C |
16 | IB-02G-4C |
