Low Temp. Incubators (Forced Convection)




Performance


▶ Temperature range from 0°C to 80°C.

- Silent cooling system reduces water evaporation within the chamber.

▶ Microprocessor PID control.

▶ Three point temperature calibration / Automatic tuning.

▶ Forced air convection using an optimal cross flow fan for chamber temperature uniformity.



● Convenience


▶ Large chamber volume: maximum 242L.

▶ Bright VFD display (0.1℃resolution)

▶ Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.) with heating level indication and quick adjustable dial knob.

▶ Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)

▶ Convenient preset function for 3 most commonly used temperature settings.

▶ Built-in electrical outlet with a safety cover inside the chamber.

▶ Convenient sample monitoring without affecting chamber temperature via the inner tempered-glass door.

▶ Rounded inner chamber corners for easy cleaning and optimal airflow.

▶ Quick-release front grill for easy cleaning of the condenser.

▶ Built-in RS-232 port and USB port for external control and data collection.

▶ Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)



● Safety


▶ Automatic run after power interruption.

▶ Over-current protection.

▶ Triple independent temperature monitor system.

- Temperature deviation alarm (High/Low)

- Electronic temperature limiter (High/Low)

- Mechanical over-temperature limiter (High)

▶ Keypad lock function prevents accidental changes during operation.

▶ Audible and visible open door alarms.


Model

IL3-15

IL3-25

Chamber volume (L / cu ft)

150 / 5.32

242 / 8.5

Refrigerator (Hp)

1 / 6 HBP

1 / 6 HBP

Temperature

Range (℃ / ℉)

0 to 80 / +32 to 176

1)Fluctuation at 37℃ (±℃ / ℉)

0.1 / 0.18

1)Variation at 37℃ (±℃ / ℉)

0.8 / 1.44

1.0 / 0.18

Dimension(W×D×H)

Interior (mm / inch)

600×500×500/ 24×20×20

500×520×930/ 20×20.5×36.6

Exterior (mm / inch)

720×760×1070/ 28.9×29.9×42.1

620×770×1680/ 24.4×30.3×66.1

No. of wire shelf (standard / max.)

2 / 11

3 / 25

Net weight (Kg / lbs)

100 / 220

135 / 297

Electrical requirements (230V)

60Hz, 4.5A

50Hz, 4.5A

60Hz, 6.4A

50Hz, 6.4A

Cat. No.

AAH220412K

AAH220412K

AAH220512K

AAH220512K

Electrical requirements (120V)

60Hz, 8.3A

60Hz, 10.6A

Cat. No.

AAH220462U

AAH220562U

1) Technical data according to DIN 12880.
※ Temperature change may occur during automatic defrost.

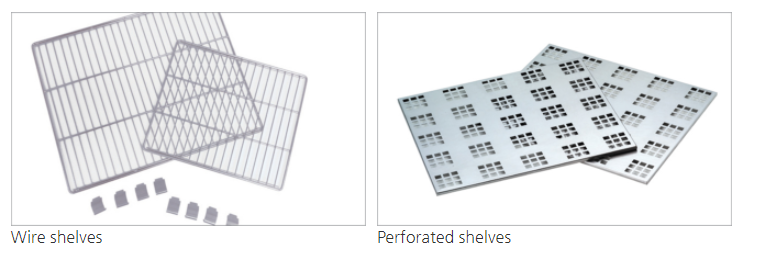

Wire shelves

Stainless steel and electro-polished shelves are readily removed without using tools for easy cleaning.

Cat. No.

Description

Suitable for

Included

Maximum

W×L (mm / inch)

EDA8219

2

6

566×466 / 22.3×17.6

IL3-15/15A

4

24

IL-11-2C

8

48

IL-11-4C

EDA8220

3

13

466×490 / 17.6×19.3

IL3-25/25A

Perforated shelves

Stainless steel shelves are readily removed without using tools for easy cleaning.

Cat. No.

Description

Suitable for

Maximum

W×L (mm / inch)

AAA22521

6

566×466 / 22.3×17.6

IL3-15/15A

24

IL-11-2C

48

IL-11-4C

AAA22522

13

466×490 / 17.6×19.3

IL-25/25A

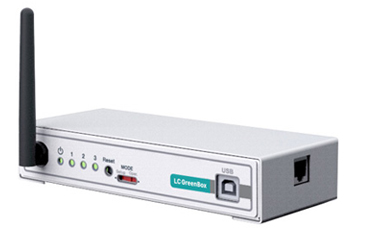

LC GreenBox



Real-time monitoring and control of device operation via mobile app.

Up to 4 devices can be connected at once.

Cat. No.

Description

AAAQ1011

LC GreenBox (2.4GHz, 100~240V, 50/60Hz)
