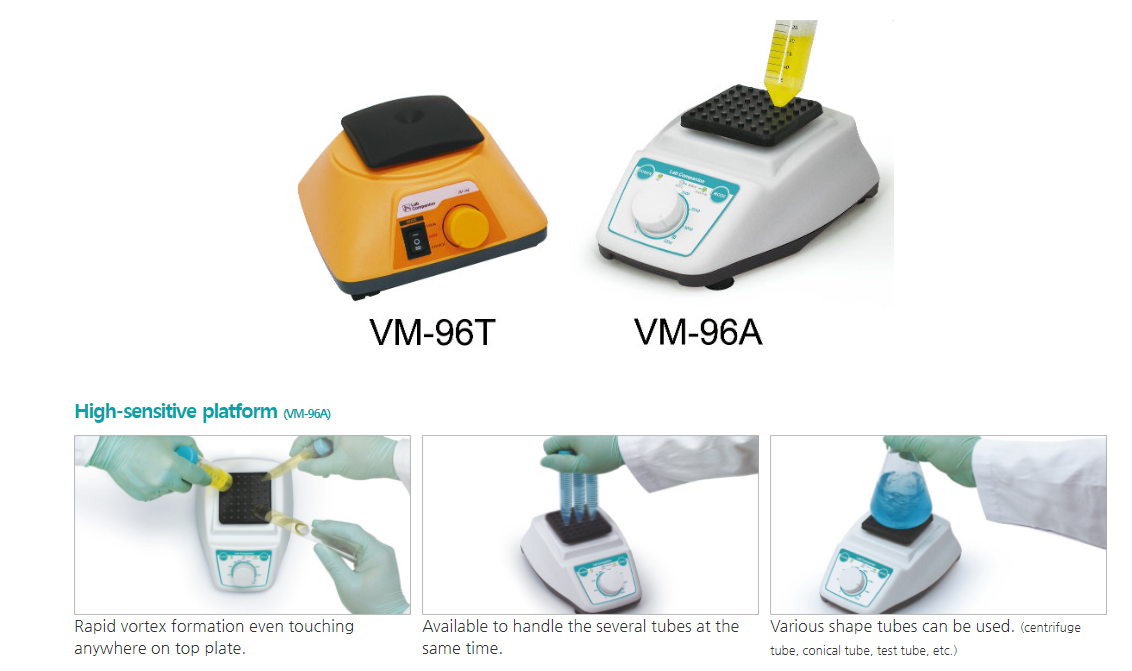

Vortex Mixer





▶ Well-balanced design and optimized safety features.
▶ Low-profile with small footprint ideal for use on lab benches and within fume hoods or clean benches.
▶ On touch operation mode, real-time and dynamic mixing made even with gentle touch.
- Every point of the top surface is highly reactive to gentle touch due to widely built in sensitive sensors.
▶ Selective mixing modes with variable speed control knob.
- VM-96A: Touch / Continuous / High-continuous.
- VM-96T: Touch / Continuous.
▶ Built-in LED lamps in case of VM-96A for easy recognition of the mixing mode selected.
▶ Sparkless BLDC motor adopted for safety, quick acceleration, and low maintenance.
▶ Built-in safety features against overload and over current.
▶ Chemically resistant polypropylene molded exterior.

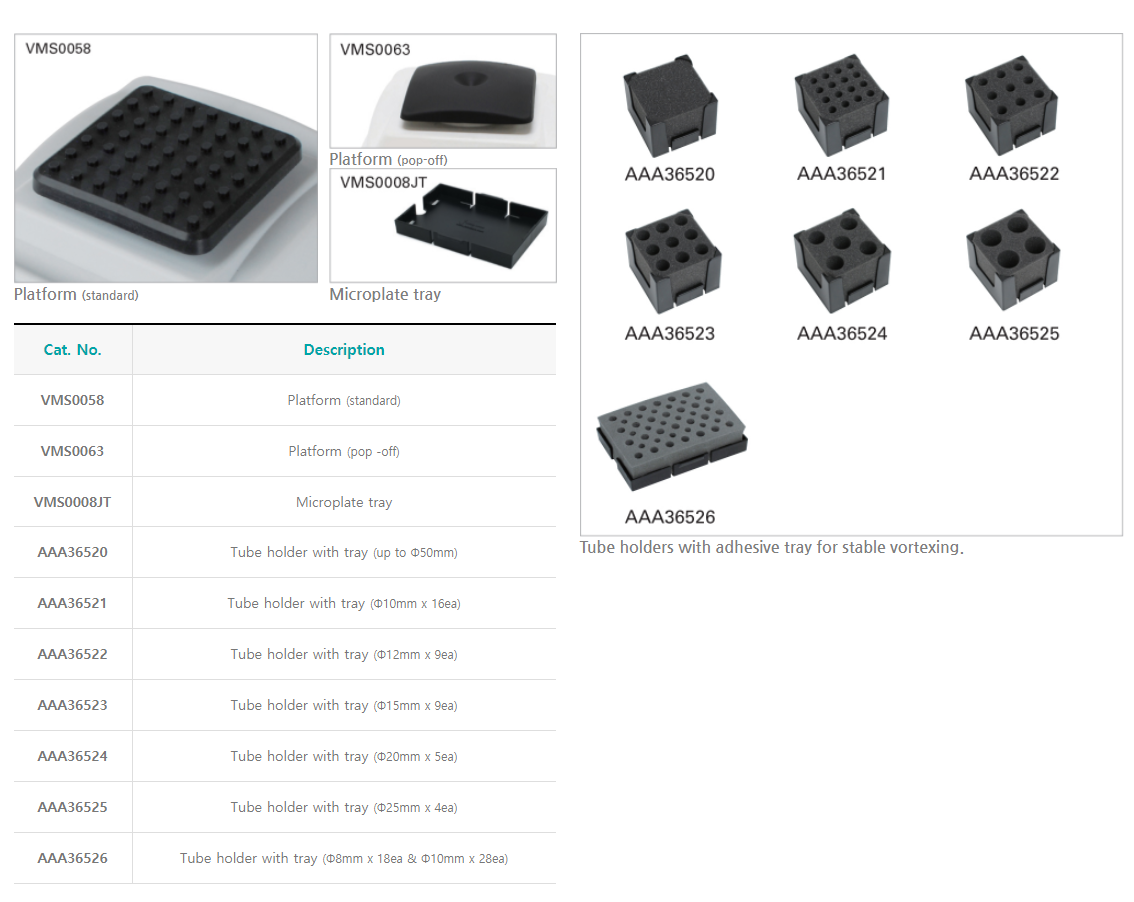

▶ Wide range of accessories available.

Model

VM-96A

VM-96T

Speed range (rpm)

Max. 3000

Speed control

Scale

Operating mode

Touch / Continuous / High-continuous

Touch / Continuous

Motion

Orbital

Orbit size (mm, inch, dia.)

4 / 0.16

Max. load (kg / lbs)

0.5 / 1.1

Motor rating input / output (W)

12 / 6

Material

Platform

Silicone

Body

Polypropylene

Motor type

BLDC (Brushless Direct Current)

Dimensions

Platform (WxD) (mm / inch)

76x76 / 3x3

Exterior 1) (W×D×H) (mm / inch)

154×210×84 / 6.1x8.3x3.3

148x159x77 / 5.8x6.3x3

Net weight (kg / lbs)

3 / 6.6

2.6 / 5.7

Protection class (DIN EN 60529)

IP 42

-

Electrical requirements

AC 100V to 240V, 50/60Hz

Cat. No.

KR plug

AAH360215K

Persian blue

Orange

AAH361215BK

AAH361215RK

US plug

AAH360215U

Persian blue

Orange

AAH361215BU

AAH361215RU

※ Permissible environmental conditions: temperature (5-40℃) and relative humidity (up to 80%)
※ Protection class according to DIN EN 60529: Waterproof, dust production index based on the test level.
※ RoHS except for VM-T.
1) Exterior dimension without accessories
