Magnetic Stirrers (Digital)



● Performance & Convenience

▶ Ergonomic designed, lightweight, easy to operate, and low profile.
▶ Best-in-the-class with broad speed range and suitable for high-speed rotation experimental environment.
▶ Spark-less, silent and durable BLDC motor.
▶ Wide top plate.
▶ Two non-slip silicone plate covers (white & black) provided.
▶ Non-slip strength rubber feet.
▶ Strong magnetic coupling to ensure constant stirring.
▶ Digital PID feedback control for reproducible stirring results.
▶ Convenient program control.
▶ Gradual start-up to protect users against splashing of samples.
▶ Bright and vivid VFD and responsive touch buttons.
▶ Easy-settable digital timer (1 min. to 99hr. 59min.)
▶ M10 threaded hole to hold a support rod.


● Safety

▶ Unit is safely designed to protect internal components from accidental spills.
▶ Built-in thermal shutdown and current limit protection.

Model

MS-17G

MS-22G

Technical data

Speed control

Feedback control with PID

Stirring capacity (Liter, H2O)

4

5

Speed range (rpm)

30 to 2,000

Speed display

VFD

Motor rating input / output (W)

2.9 / 1.6

Magnetic bar, Max. (Ø×L) (mm / inch)

8×40 / 0.31×1.57

10×50 / 0.39×1.97

Load, Max (kg / lbs)

20 / 44.09

25 / 55.12

Top plate

Material

Polypropylene with non-slip silicon cover

Dimension (Ø, mm / inch)

170 / 6.69

220 / 8.66

General data

Body material

Polypropylene

Dimension (W×D×H) (mm / inch)

210×280×72 / 8.3×11×2.8

260×355×72 / 10.2×14×2.8

Net weight (kg / lbs)

1.35 / 2.98

1.75 / 3.86

Electrical requirements

AC 100 ~ 240V, 50 / 60Hz

Power consumption (W)

6

Protection class (DIN EN 60529)

IP42

Cat. No.

Persian blue

KR plug

AAH331215BK

AAH331315BK

US plug

AAH331215BU

AAH331315BU

Yellow

KR plug

AAH331215YK

AAH331315YK

US plug

AAH331215YU

AAH331315YU











Cat. No.

Description

MTT0132

Support rod, M10 (Ø12×400mm / Ø0.47x15.75˝)

AAA37512

Clamp holder, C-10 (Al body, Ø17mm / Ø0.66˝)

AAA37513

Clamp holder, C-7 (Al body, Ø12mm / Ø0.47˝)

AAA37514

Clamp holder, C-5 (PP body, Ø12mm / Ø0.47˝)

BEA1000014

2 Prong clamp (60mm / 2.36˝ grip)

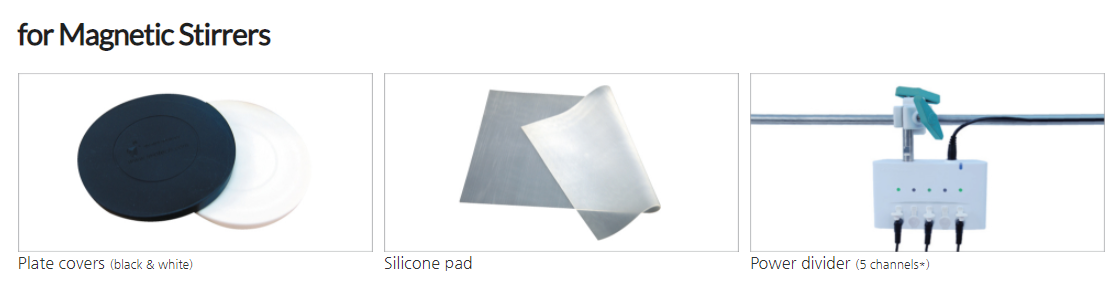

Cat. No.

Description

Suitable for

MTT0144

Plate cover (White color, Silicone Ø115mm / Ø4.53˝)

MS-12T

MTT0146

Plate cover (White color, Silicone Ø165mm / Ø6.49˝)

MS-17T

MTT0002

Plate cover (White color, Silicone Ø120mm / Ø4.72˝)

MS-12B

MTT0003

Plate cover (White color, Silicone Ø170mm / Ø6.69˝)

MS-17B/G

MTT0004

Plate cover (White color, Silicone Ø220mm / Ø8.66˝)

MS-22B/G

MTT0143

Plate cover (Black color, Silicone Ø115mm / Ø4.53˝)

MS-12T

MTT0145

Plate cover (Black color, Silicone Ø165mm / Ø6.49˝)

MS-17T

MTT0005

Plate cover (Black color, Silicone Ø120mm / Ø4.72˝)

MS-12B

MTT0006

Plate cover (Black color, Silicone Ø170mm / Ø6.69˝)

MS-17B/G

MTT0007

Plate cover (Black color, Silicone Ø220mm / Ø8.66˝)

MS-22B/G

MTS0015

Silicone pad (355×475×1mm / 13.98x18.70x0.04˝)

MS-53M

MTS0016

Silicone pad (235×475×1mm / 9.25x18.70x0.04˝)

MS-52M

MTS0017

Silicone pad (115×475×1mm / 4.53x18.70x0.04˝)

MS-51M

MTS0041

Silicone pad (235×310×1mm / 9.25x12.20x0.04˝)

MS-32M

MTS0042

Silicone pad (355×310×1mm / 13.98x12.20x0.04˝)

MS-23M/33M

MTT0001

Power adapter (100~240V, 50/60Hz)

MS-12B/T, MS-17B/T

AAH33501

Power divider (5 channels) 1) with M10 rod, adapter(100~240V, 50/60Hz), five DC plugs

1) Power supply to max. five units at the same time.
