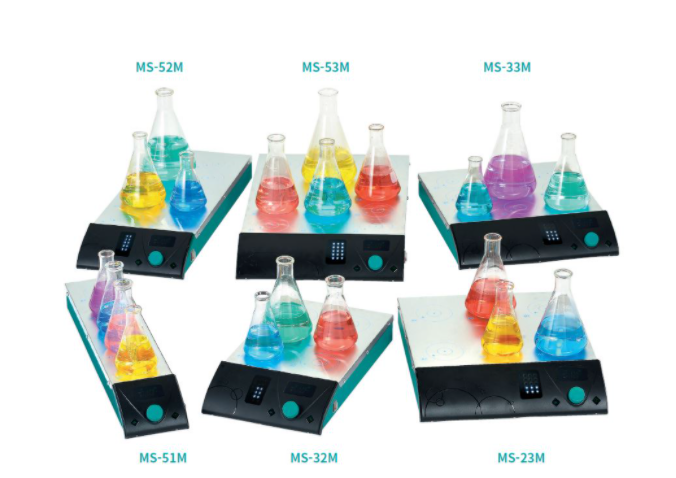

Magnetic Stirrers (Multi Position)







● Performance & Convenience


▶ Ergonomic designed, lightweight, easy to operate, and low profile.

▶ Best-in-the-class with broad speed range and suitable for high-speed rotation experimental environment.

▶ Spark-less, silent and durable BLDC motor.

▶ Wide top plate.

▶ Non-slip strength rubber feet.

▶ Strong magnetic coupling to ensure constant stirring.

▶ Digital PID feedback control for every single point, separately.

▶ User-friendly operation and time setting modes allowing various ways of multi-position stirring to meet users’ demands:

▶ single point, multiple point, whole row, whole column, etc.

▶ Easy-to-read VFD and intuitive control panel.

▶ Bright and vivid LED position indicating lamps.

▶ Non-slip see-through silicon plate mat. (optional)

▶ Chemical-resistant #304 grade stainless steel top-plate.



● Safety


▶ Unit is safely designed to protect internal components from accidental spills.

▶ Built-in thermal shutdown and current limit protection.



Model

MS-23M

MS-32M

MS-33M

MS-51M

MS-52M

MS-53M

Technical data

Speed control

Feedback control with PID

Stirring

Position

6

6

9

5

10

15

Speed range (rpm)

30 to 2,000

Stirring point distance (W×D)

(mm / inch)

117×170 /4.6×6.69

117×90 /4.6×3.54

117×90 /4.6×3.54

90 / 3.54

117×90 /  4.6×3.54

Timer

1 min. to 99 hr. 59 min.

Speed display

VFD

Motor rating input/ output (W)

per each point

2.9 / 1.6

Load, Max (kg / lbs)

30 / 66.14

General data

Dimension (W×D×H)

(mm / inch)

377×436×82/ 14.8×17.2×3.2

254×436×82/ 10×17.2×3.2

377×436×81/ 14.8×17.2×3.2

131×603×82/ 5.2×23.7×3.2

254×602×82/ 10.0×23.27×3.2

377×599×82/ 14.9×23.6×3.2

Weight (kg / lbs)

6 / 13.23

5 / 11.02

7 / 15.43

4 / 8.82

8 / 17.64

11 / 24.25

Electrical requirements

AC 100 ~ 240V, 50 / 60Hz

Power consumption (W)

45

45

54

45

85

135

Protection class (DIN EN 60529)

IP 21

Cat. No.

KR plug

AAH332115K

AAH332215K

AAH332315K

AAH332415K

AAH332515K

AAH332615K

US plug

AAH332115U

AAH332215U

AAH332315U

AAH332415U

AAH332515U

AAH332615U








Cat. No.

Description

MTT0132

Support rod, M10 (Ø12×400mm / Ø0.47x15.75˝)

AAA37512

Clamp holder, C-10 (Al body, Ø17mm / Ø0.66˝)

AAA37513

Clamp holder, C-7 (Al body, Ø12mm / Ø0.47˝)

AAA37514

Clamp holder, C-5 (PP body, Ø12mm / Ø0.47˝)

BEA1000014

2 Prong clamp (60mm / 2.36˝ grip)



Cat. No.

Description

Suitable for

MTT0144

Plate cover (White color, Silicone Ø115mm / Ø4.53˝)

MS-12T

MTT0146

Plate cover (White color, Silicone Ø165mm / Ø6.49˝)

MS-17T

MTT0002

Plate cover (White color, Silicone Ø120mm / Ø4.72˝)

MS-12B

MTT0003

Plate cover (White color, Silicone Ø170mm / Ø6.69˝)

MS-17B/G

MTT0004

Plate cover (White color, Silicone Ø220mm / Ø8.66˝)

MS-22B/G

MTT0143

Plate cover (Black color, Silicone Ø115mm / Ø4.53˝)

MS-12T

MTT0145

Plate cover (Black color, Silicone Ø165mm / Ø6.49˝)

MS-17T

MTT0005

Plate cover (Black color, Silicone Ø120mm / Ø4.72˝)

MS-12B

MTT0006

Plate cover (Black color, Silicone Ø170mm / Ø6.69˝)

MS-17B/G

MTT0007

Plate cover (Black color, Silicone Ø220mm / Ø8.66˝)

MS-22B/G

MTS0015

Silicone pad (355×475×1mm / 13.98x18.70x0.04˝)

MS-53M

MTS0016

Silicone pad (235×475×1mm / 9.25x18.70x0.04˝)

MS-52M

MTS0017

Silicone pad (115×475×1mm / 4.53x18.70x0.04˝)

MS-51M

MTS0041

Silicone pad (235×310×1mm / 9.25x12.20x0.04˝)

MS-32M

MTS0042

Silicone pad (355×310×1mm / 13.98x12.20x0.04˝)

MS-23M/33M

MTT0001

Power adapter (100~240V, 50/60Hz)

MS-12B/T, MS-17B/T

AAH33501

Power divider (5 channels) 1) with M10 rod, adapter(100~240V, 50/60Hz), five DC plugs


1) Power supply to max. five units at the same time.
