Forced Convection Ovens (Programmable)




● Intelligent program control


▶ 10 programs available for temperature ramp up and dwell control.

▶ 10 steps per a program and 99 hours 59 minutes per a step.

▶ Stored programs are easily linkable.

▶ Programs can be repeated up to 99 cycles.

▶ Pre-heating and heating time are settable before program starts.



● Performance


▶ Temperature range from ambient +10°C to 250°C.

▶ Microprocessor PID control.

▶ Three point temperature calibration / Automatic tuning.

▶ Forced air convection ensures optimal air circulation, temperature uniformity, and short heat-up time.

▶ Fan speed control by an analog dial prevents powdered samples from blowing away. (optional)

▶ Adjustable dual slide vents for inner vapor circulation.



● Convenience


▶ Intuitive touch screen LCD controller with easy icons and logical menus.

▶ Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)

▶ Digital input and output control function for interlocking external devices.

▶ Rounded inner chamber corners for easy cleaning and optimal airflow.

▶ Corrosion-resistant incoloy sheath heating element and stainless steel interior.

▶ Threefold tempered-glass window provides clear inside view of the chambers. (optional)

▶ RS-232 interface for external control and data collection.

▶ Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)



● Safety


▶ Keypad lock function prevents accidental changes during operation.

▶ Automatic run after power interruption.

▶ Over-temperature and over-current protection.

▶ Audible and visible open door alarms.




Model

Solid door (without window)

OF-02P

OF-12P

OF-22P

Window door

OF-02PW

OF-12PW

OF-22PW

Chamber volume (L / cu ft)

60 / 2.1

102 / 3.6

151 / 5.3

Temperature

Range (℃ / ℉)

Amb. +10 to 250 / Amb. +18 to 482

Fluctuation1) at 100℃ (±℃ / ℉)

0.5 / 0.9

0.6 / 1.08

0.8 / 1.44

Variation1) at 100℃ (±℃ / ℉)

1 / 1.8

1.3 / 2.3

1.7 / 3.1

Dimension (W×D×H)

Interior (mm / inch)

400×360×420 / 15.7×14.2×16.5

480×410×520 / 18.9×16.1×20.5

550×460×600 / 22×18×23.6

Exterior (mm / inch)

577×642×760 / 22.7×25.3×30

657×692×870 / 25.9×27.2×34.3

727×742×974 / 28.7×29.2×38.3

No. of wire shelf (standard / max.)

2 / 4

2 / 6

2 / 7

Net weight (Kg / lbs)

53 / 117

63 / 139

72.5 / 160

Electrical requirements (230V, 50 / 60Hz)

4.4A

6.1A

7.4A

Cat. No.

Solid door (without window)

AAH12555K

AAH12565K

AAH12575K

Window door

AAH12655K

AAH12665K

AAH12675K

Electrical requirements (120V, 50 / 60Hz)

6.8A

8.4A

10.1A

Cat. No.

Solid door (without window)

AAH12553U

AAH12563U

AAH12573U

Window door

AAH12653U

AAH12663U

AAH12673U



1) Technical data according to DIN 12880.

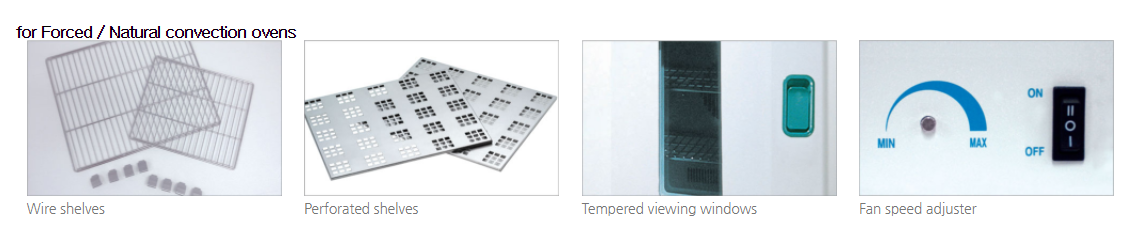

Wire shelves

Stainless steel and electro-polished shelf system is removed easily without using tools for easy cleaning.

Cat. No.

Description

Suitable for

Included

Maximum

W×L (mm / inch)

EDA8136

2

4

366×316 / 14.4×12.4

OF-02G/P

EDA8135

2

6

446×366 / 17.6×14.4

OF-12G/P

EDA8134

2

7

516×416 / 20.3×16.4

OF-22G/P

Perforated shelves

Stainless steel shelf system is removed easily without using tools for easy cleaning.

Cat. No.

Description

Suitable for

Maximum

W×L (mm / inch)

AAA12531

7

366×316 / 14.4×12.4

OF-02G/P

AAA12532

6

446×366 / 17.6×14.4

OF-12G/P

AAA12533

7

516×416 / 20.3×16.4

OF-22G/P

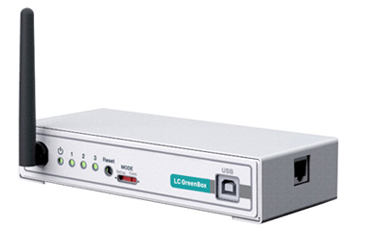

LC GreenBox



Real-time monitoring and control of device operation via mobile app.

Up to 4 devices can be connected at once.

Cat. No.

Description

AAAQ1011

LC GreenBox (2.4GHz, 100~240V, 50/60Hz)
