Forced Convection Ovens (General)
● Performance
▶ Temperature range from ambient +10°C to 250°C.
▶ Microprocessor PID control / Temperature calibration / Automatic tuning.
▶ Forced air convection ensures optimal air circulation, temperature uniformity, and short heat-up time.
▶ Fan speed control by an analog dial prevents powdered samples from blowing away. (optional)
▶ Adjustable dual slide vents for inner vapor circulation.
● Convenience
▶ Intuitive control panel with bright LED displays. (0.1°Cresolution)
▶ Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
▶ Convenient presetting function for 3 most commonly used temperature settings.
▶ Rounded inner chamber corners for easy cleaning and optimal airflow.
▶ Corrosion-resistant incoloy sheath heating element and stainless steel interior.
▶ Threefold tempered-glass window provides clear inside view of the chambers. (optional)
● Safety
▶ Keypad lock function prevents accidental changes during operation.
▶ Automatic run after power interruption.
▶ Over-temperature and over-current protection.
▶ Audible and visible open door alarms.
Model | Solid door (without window) | OF-02G | OF-12G | OF-22G | |
|---|---|---|---|---|---|
Window door | OF-02GW | OF-12GW | OF-22GW | ||
Chamber volume (L / cu ft) | 60 / 2.1 | 102 / 3.6 | 151 / 5.3 | ||
Temperature | Range (℃ / ℉) | Amb. +10 to 250 / Amb. +18 to 482 | |||
Fluctuation1) at 100℃ (±℃ / ℉) | 0.5 / 0.9 | 0.6 / 1.08 | 0.8 / 1.44 | ||
Variation1) at 100℃ (±℃ / ℉) | 1 / 1.8 | 1.3 / 2.3 | 1.7 / 3.1 | ||
Dimension (W×D×H) | Interior (mm / inch) | 400×360×420 / 15.7×14.2×16.5 | 480×410×520 / 18.9×16.1×20.5 | 550×460×600 / 22×18×23.6 | |
Exterior (mm / inch) | 577×642×760 / 22.7×25.3×30 | 657×692×870 / 25.9×27.2×34.3 | 727×742×974 / 28.7×29.2×38.3 | ||
No. of wire shelf (standard / max.) | 2 / 4 | 2 / 6 | 2 / 7 | ||
Net weight (Kg / lbs) | 53 / 117 | 63 / 139 | 72.5 / 160 | ||
Electrical requirements (230V, 50 / 60Hz) | 4.4A | 6.1A | 7.4A | ||
Cat. No. | Solid door (without window) | AAH12155K | AAH12165K | AAH12175K | |
Window door | AAH12255K | AAH12265K | AAH12275K | ||
Electrical requirements (120V, 50 / 60Hz) | 6.8A | 8.4A | 10.1A | ||
Cat. No. | Solid door (without window) | AAH12156U | AAH12166U | AAH12176U | |
Window door | AAH12256U | AAH12266U | AAH12276U | ||
1) Technical data according to DIN 12880.
.png "Forced Convection Ovens (General).png")

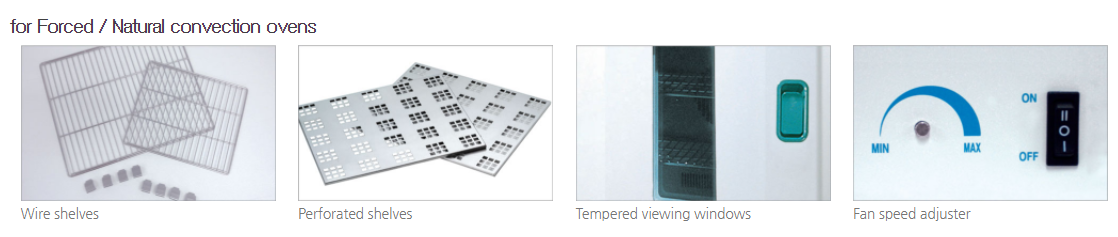

Wire shelves
Stainless steel and electro-polished shelf system is removed easily without using tools for easy cleaning.
Cat. No. | Description | Suitable for | ||||
|---|---|---|---|---|---|---|
Included | Maximum | W×L (mm / inch) | ||||
EDA8136 | 2 | 4 | 366×316 / 14.4×12.4 | OF-02G/P | ||
EDA8135 | 2 | 6 | 446×366 / 17.6×14.4 | OF-12G/P | ||
EDA8134 | 2 | 7 | 516×416 / 20.3×16.4 | OF-22G/P | ||
Perforated shelves
Stainless steel shelf system is removed easily without using tools for easy cleaning.
Cat. No. | Description | Suitable for | |
|---|---|---|---|
Maximum | W×L (mm / inch) | ||
AAA12531 | 7 | 366×316 / 14.4×12.4 | OF-02G/P |
AAA12532 | 6 | 446×366 / 17.6×14.4 | OF-12G/P |
AAA12533 | 7 | 516×416 / 20.3×16.4 | OF-22G/P |
Fan speed adjuster
Adjustable inner air circulation speed, which protects spreading out powder sample. (for OF-G)
Recorders
Easy recognizable digital recorders for efficient temperature indicating.
