Aspirator Pumps
● Electrical Aspirator Pump
▶ Portable dual-channel water-jet aspirator pumps
- Creating a vacuum by means of venturi effect, aspirator pumps are suitable for rotary vacuum evaporation, decompression distillation, vacuum drying, and vacuum filtering.
▶ Built-in circulating pump and water tank make the unit portable.
▶ Circulating pump continuously pumps water quietly across a set of aspirators, and is therefore clean and efficient.
▶ Built-in check valve prevents backflow of water into the aspirator pump.
▶ Corrosion-resistant construction of all wetted parts with 304 stainless steel, polypropylene, silicone, or nickel-coated brass.
▶ Water tank features a drain port and a spigot for easy changing of water.
Model | VE-11 | ||
|---|---|---|---|
Bath volume (L / cu ft) | 9.5 / 0.3 | ||
Max. vacuum (Mpa / mmHg) | 0.0906 / 680 | ||
Free-air capacity | 18L / minute (0.6 cfm) ×2ea | ||
Material (bath / aspirator) | Polypropylene / Nickel-coated brass × 2ea | ||
Bath interior (W×L , D) (mm / inch) | 298×210, 227 / 11.7×8.3 ,8.9 | ||
Exterior (W×L×H) (mm / inch) | 330×265×390 / 13×10.4×15.4 | ||
Inhale nozzle | External Ø9.5mm (0.4”) ×2ea | ||
Drain cook, Over flow nozzle (Ø, mm / inch) | 17 / 0.7 | ||
Net weight (kg / lbs) | 5.7 / 12.6 | ||
Electrical requirements | 230V, 60Hz / 0.7A | 230V, 50Hz / 0.7A | 120V, 60Hz / 1.4A |
Cat. No. | AH71011K | AAH71015K | AAH71016U |

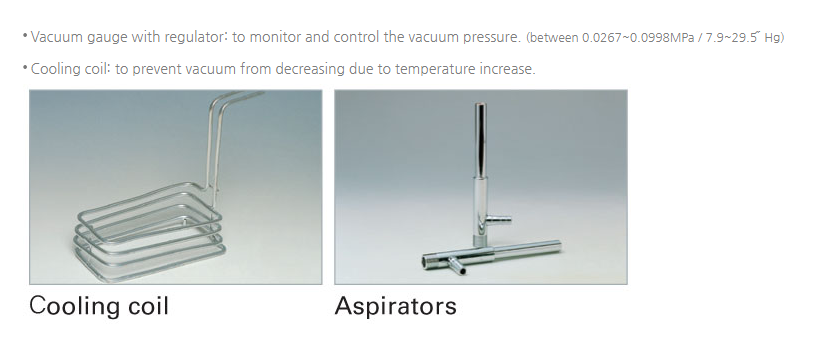

Description | Cat. No. |
|---|---|
Vacuum gauge with regulator | AAA71531 |
Cooling coil | AAA71501 |
Aspirator (1 ea) | EFA9111 |
Aspirator (10 ea) | AAH71122 |
