Open-air Shakers (Dual-action)



● Performance

▶ Dual-action shaking motion: Orbital / Reciprocating.
▶ Microprocessor PID control / Shaking speed calibration.
▶ Competitive high shaking speed up to 500 rpm.
▶ Shaking motion in various amplitude.
- 12.7mm or 19.1mm for OS-2000
- 19.1mm or 25.4mm for OS-3000
- 19.1mm or 25.4mm for OS-4000
▶ Wide speed range even with heavy workload.
- Equipped with a maintenance-free BLDC motor to generate smooth, quiet, uniform, and yet powerful shaking motion.
▶ Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity.
▶ Pleasant test environment by the smooth acceleration and deceleration control.
▶ Low-profile design minimizes vibration or sliding caused by the high speed shaking motion.


● Convenience

▶ User friendly control panel.
- Lab Companion’s unique VFD-bright, clear, easy to read.
- Durable membrane touch switch and control knob.
▶ Easy-set digital timer. (1 min. to 999 hr. 59 min.)
▶ Repetitive task can be easily performed as the platform stops where it starts.
- Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process.
▶ Speed is basically set and displayed in increments of 1 rpm. Also speed increment interval can be set among 1, 5, 10 rpm according to users preference.
▶ RS-232 port and USB port for external control and data collection.
▶ Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)



● Safety

▶ Automatic run after power interruption.
▶ Shaking speed deviation alarm.
▶ Over-current protection, Stalled platform check.

Model

OS-2000

OS-3000

OS-4000

Shaking system

Motion type

Orbital / Reciprocal

Orbital / Reciprocal

Orbital

Reciprocal

Speed range (rpm)

20 to 500

20 to 500

20 to 500

20 to 450

Max. speed per
permissible load 1)

500rpm (max. 10 kg)
300rpm (max. 16 kg)

500rpm (max. 10 kg)
300rpm (max. 18 kg)

500rpm (max. 14 kg)
400rpm (max. 21 kg)

450 rpm (max. 10 kg)
300 rpm (max. 21 kg)

Amplitude size
(mm / inch, dia.)

19.1 / 0.8
(12.7 / 0.5 available)

19.1 / 0.8
(25.4 / 1 available)

19.1 / 0.75 (default)

25.4 / 1 (available)

Speed stability 2) (rpm, %)

1

1

1

Timer (count-down)

999hr 59min

999hr 59min

999hr 59min

Dimension

Platform (W×D) (mm / inch)

320×260 / 12.6×10.2

350×350 / 13.8×13.8

450×450 / 17.7×17.7

Body 1) (W×D×H) (mm/inch)

354x388x146/ 13.9x15.3x5.7

409x508x141/ 16.1x20x5.6

510x632x156 / 20.1x24.9x6.1

Net weight (Kg / lbs)

22 / 48.5

28 / 61.7

43 / 94.8

43 / 94.8

Electrical requirements (230V, 50 / 60Hz)

0.3A

0.3A

0.3A

0.4A

Cat. No.

AAH3D1115K

AAH3D1215K

AAH3D1315K

Electrical requirements (120V, 50 / 60Hz)

0.6A

0.6A

0.6A

0.8A

Cat. No.

AAH3D1165U

AAH3D1265U

AAH3D1365U

1) In Orbital Shaking mode, Regarding the maximum controllable RPM and amplitude by weight, the measurement is performed based on the default value.

2) Actual rpm allowable error for set rpm is 1rpm if setting is less than 100 rpm, ±1% if setting is higher than 100rpm.

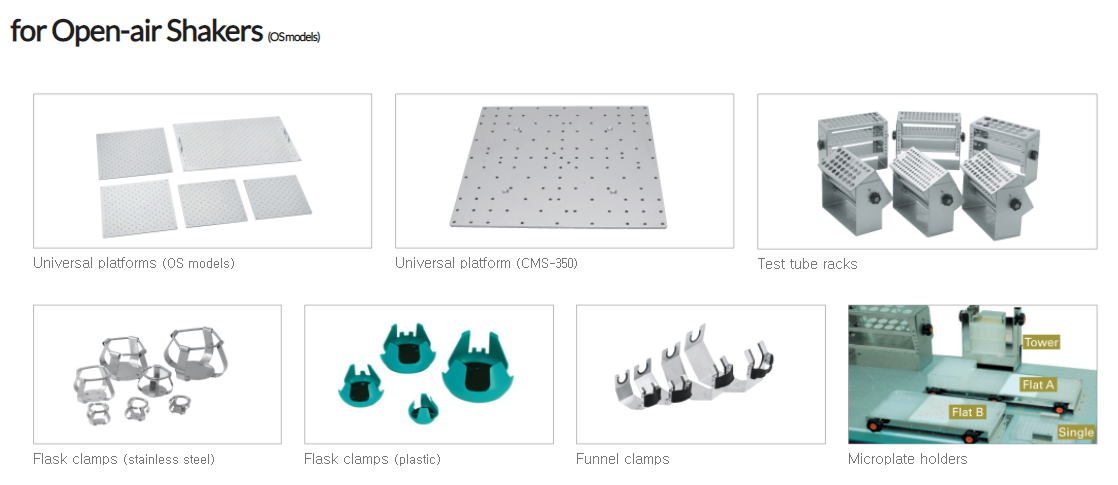

Description

OS-2000

OS-3000

OS-4000

OS-7000

Series

Cat.No.

Universal platform

AAA3A501-V2

AAA23501-V3

AAA23502-V3

AAA23503-V3

-

Flask clamps(Stainless steel)

Erlenmeyer flask size

Max. mountable flask clamps

AAA23550

for 50 ml

20

36

49

88

AAA23551

for 100 ml

16

28

39

68

AAA23552

for 250 ml

8

14

24

39

AAA23556

for 300 ml

8

14

24

39

AAA23553

for 500 ml

6

10

16

28

AAA23554

for 1L

3

6

9

18

AAA23555

for 2L

-

4

6

11

AAA23557

for 2.8L

-

3

5

8

AAA23558

for 4L

-

1

4

6

AAA23559

for 6L

-

1

3

5

-

Flask clamps(plastic)

Erlenmeyer flask size

Max. mountable flask clamps

AAA30570

for 50 ml

20

36

49

88

AAA30571

for 100 ~ 125 ml

12

19

29

48

AAA30572

for 200 ml

8

13

21

35

AAA30573

for 250 ml

8

13

19

35

AAA30574

for 300 ml

6

12

19

35

AAA30575

for 500 ml

6

9

12

24

AAA30576

for 1L

3

5

9

12

AAA30577

for 2L

-

4

5

8

-

Funnel clamps

Separating funnel size

Max. mountable funnel clamps

AAA23562

for 250 ml

4

4

6

15

AAA23563

for 500 ml

3

3

4

10

AAA23564

for 1L

3

3

3

7

AAA23565

for 2L

-

2

2

5

-

Test Tube Racks 1)

Test tube size

Mountable capacity of racks

AAA23581

for 86 test tubes, ø8mm

2

2

4

7

AAA23582

for 86 test tubes, ø10mm

AAA23583

for 58 test tubes, ø12mm

AAA23584

for 58 test tubes, ø14mm

AAA23585

for 32 test tubes, Ø17mm

AAA23586

for 19 test tubes, Ø25mm

AAA23587

for 10 test tubes, Ø30mm

AAA23594

for 10 test tubes, Ø35mm

AAA23593

for 4 test tubes, Ø50mm

-

Microplate holders

Max. mountable microplate holders

AAA23654

Single

6

8

15

25

AAA23651

Tower

4

6

10

21

AAA23652

Flat A (large)

-

-

2

4

AAA23653

Flat B (small)

1

2

3

6

1) No declination.
※ Above accessories need to be mounted on a universal platform which is sold separately.

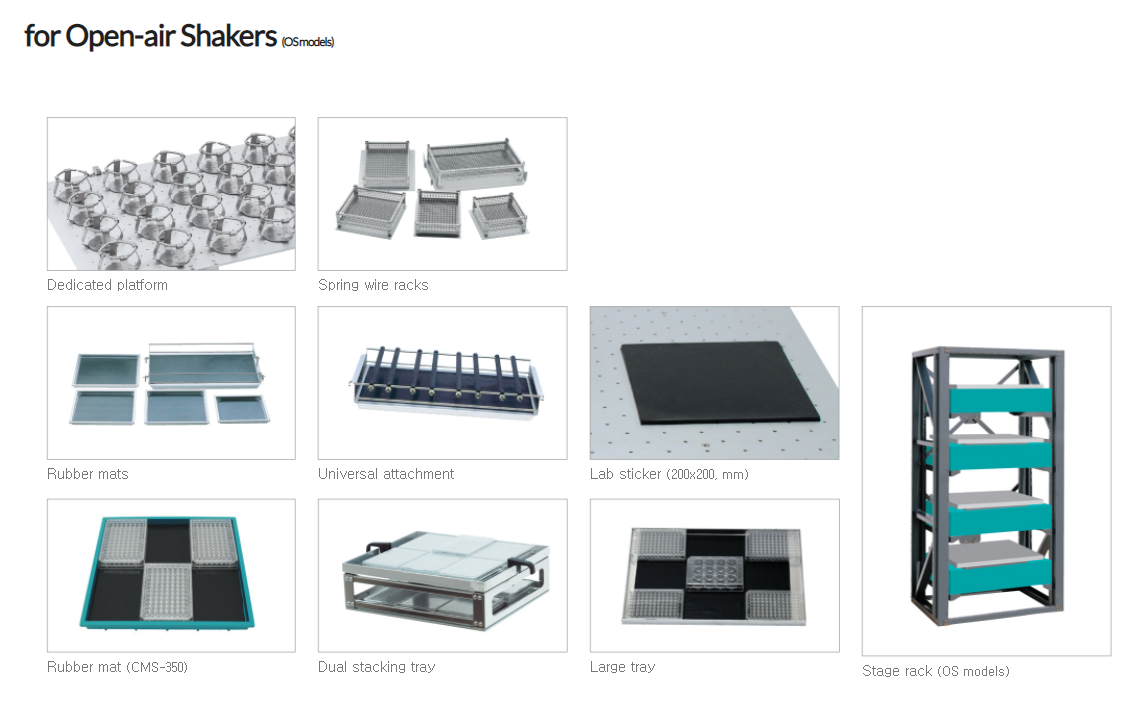

Description

OS-2000

OS-3000

OS-4000

OS-7000

Series

Spring wire racks

-

AAA3A521

AAA31521-V1

AAA31522-V1

AAA23514

Erlenmeyer flask size

Max. inserting flasks

for 50 ml

15

16

25

45

for 100 ml

9

9

16

28

for 250 ml

4

4

9

18

for 300 ml

4

4

9

18

for 500 ml

4

4

5

15

for 1L

2

2

4

10

for 2L

-

1

2

6

for 2.8L

-

1

2

4

Rubber mat

AAA3A531-V1

AAA23531-V1

AAA23532-V1

AAA23534

Universal attachments

AAA3A511-V1

AAA23511-V1

AAA23512-V1

AAA23505

Lab sticker

AAA30551

Dimpled mat

AAA3A532

-

-

-

Microplate tray

Dual stacking

AAA3A541

-

-

-

Large tray

AAA3A542

-

-

-

Stage racks

4 stage rack

-

AAA31541-V1

AAA31542-V1

AAA31702-V1

3 stage rack

-

-

-

AAA31703-V1



Starter Kit


- Consisting of plastic clamps that are commonly used on Universal Platforms.

- 50ml, 100ml, 250ml, 500ml, 1L, 2L

Description

Composition of Clamp

Cat. No.

Starter Kit I

50 ml (2), 100 ml (2), 250 ml (4), 500 ml (4), 1L (2), 2L (2)

AAA30581

Starter Kit II

50 ml (3), 100 ml (3), 250 ml (6), 500 ml (6)

AAA30582

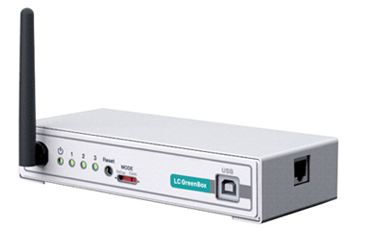

LC GreenBox


Real-time monitoring and control of device operation via mobile app.

Up to 4 devices can be connected at once.
