● Performance
▶ Microprocessor PID control maintaining constant speed
▶ Competitive high shaking speed up to 500 rpm.
▶ Orbital shaking motion in various diameter.
- 19mm for SKC-6075/7075
- 25mm for SKC-6100/7100
- 50mm for SKC-6200/7200
▶ Wide speed range even with heavy workload.
- Ideal DD(Direct Drive) Brushless Motor and triple cam system support heavy load, quiet, maintenance free operation and deliver high torque at high speeds and smooth rotation.
▶ Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity.
- Automatic shaking speed adjustment in case of excessive workload such as unbalanced load placement, unusual vibrations caused from unstable floor or external shock.
▶ Pleasant test environment by the smooth acceleration and deceleration control.
- Smooth start and smooth stop function prevent chemical spills from flasks or test tubes.
▶ Exceptional low-profile design (only 12cm from bottom to platform) minimizes vibration or sliding caused by the high speed shaking motion.
● Convenience
▶ User friendly control panel.
- Lab Companion’s unique VFD-bright, clear, easy to read.
- Durable membrane touch switch and control knob.
▶ Easy-exchangeable slide type universal platform reduces physical fatigue when handling the heavy load samples. (optional)
▶ Repetitive task can be easily performed as the platform stops where it starts.
- Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process.
▶ Variety of accessories are available to meet application demands.
● Safety
▶ Shaking speed deviation alarm.
▶ Over-current protection.
(1).png "Open-air Shakers (Advanced)(1).png")
Model | SKC-6075 | SKC-6100 | SKC-6200 | SKC-7075 | SKC-7100 | SKC-7200 |
|---|
Control system | PID feedback control |
Display | VFD |
Shaking system | Motion type | Orbital |
Amplitude size(mm / inch, dia) | 19 / 0.75 | 25 / 1 | 50 / 2 | 19 / 0.75 | 25 / 1 | 50 / 2 |
Speed range2)(rpm) | 30 to 500 |
Accuracy at 100 rpm | ±1 |
Dimension | Platform(W×D) (mm / inch) | Small | 580×520 / 22.8×20.5 | 755×520 / 29.7×20.5 |
Large | 660×520 / 26×20.5 | 885×520 / 34.8×20.5 |
Body1)(W×D×H) (mm / inch) | 582.8×618 ×122.2 | 754.8×662×122.2 |
22.9×24.3×4.8 | 29.7×26.1×4.8 |
Net weight(kg / Ibs) | 65 / 143.3 | | 75 / 165.4 |
Electric requirements(230V, 50 / 60Hz) | 0.4A |
Cat. No. | AAH30105K | AAH30115K | AAH30125K | AAH30205K | AAH30215K | AAH30225K |
Electric requirements(120V, 60Hz) | 0.8A |
Cat. No. | AAH30106U | AAH30116U | AAH30126U | AAH30206U | AAH30216U | AAH30226U |
※ Permissible environmental conditions: temperature (5-40°C) and relative humidity (up to 80%).
1) Main body dimension without accessories.
2) In case of operating at high speed (350 to 500 rpm), it is recommended to use wight increaser be fixed on the working surface.
Description | SKC - 6000 models | SKC - 7000 models |
|---|
Small | Large | Small | Large |
|---|
Cat.No. | Universal platform | Single | AAA30501 | AAA30503 | AAA30502 | AAA30504 |
|---|
Dual 1) | - | - | AAA30541 | AAA30542 |
|---|
- | Flask Clamps(stainless steel) | Erlenmeyer flask size | Max. mountable flask clamps |
AAA23550 | for 50 ml | 84 | 96 | 108 | 126 |
108 per each step | 126 per each step |
AAA23551 | for 100 ml | 54 | 66 | 72 | 84 |
72 per each step | 84 per each step |
AAA23552 | for 250 ml | 33 | 39 | 42 | 51 |
42 per each step | 51 per each step |
AAA23556 | for 300 ml | 28 | 32 | 36 | 40 |
AAA23553 | for 500 ml | 20 | 24 | 27 | 30 |
AAA23554 | for 1L | 14 | 16 | 18 | 20 |
AAA23555 | for 2L | 8 | 11 | 12 | 13 |
AAA23557 | for 2.8L | 6 | 7 | 9 | 11 |
AAA23558 | for 4L | 4 | 6 | 8 | 9 |
AAA23559 | for 6L | 3 | 4 | 6 | 7 |
- | Flask clamps(plastic) | Erlenmeyer flask size | Max. mountable flask clamps |
AAA30570 | for 50 ml | 56 | 64 | 72 | 80 |
AAA30571 | for 100 ~ 125 ml | 42 | 48 | 54 | 60 |
AAA30572 | for 200 ml | 25 | 39 | 30 | 32 |
AAA30573 | for 250 ml | 25 | 30 | 30 | 32 |
AAA30574 | for 300 ml | 25 | 30 | 30 | 32 |
AAA30575 | for 500 ml | 20 | 20 | 24 | 28 |
AAA30576 | for 1L | 10 | 12 | 12 | 15 |
AAA30577 | for 2L | 6 | 6 | 6 | 9 |
- | Funnel clamps | Separating funnel size | Max. mountable funnel clamps |
AAA23562 | for 250 ml | 14 | 16 | 18 | 20 |
AAA23563 | for 500 ml | 9 | 10 | 11 | 14 |
AAA23564 | for 1L | 7 | 8 | 9 | 12 |
AAA23565 | for 2L | 5 | 6 | 7 | 8 |
- | Test Tube Racks 2) | Test tube size | Mountable capacity of racks |
AAA23581 | for 86 test tubes, ø8mm | 8 | 9 | 9 | 12 |
AAA23582 | for 86 test tubes, ø10mm |
AAA23583 | for 58 test tubes, ø12mm |
AAA23584 | for 58 test tubes, ø14mm |
AAA23585 | for 32 test tubes, ø16mm |
AAA23586 | for 19 test tubes, ø25mm |
AAA23594 | for 10 test tubes, ø35mm |
- | Microplate holders | Holder type | Max. mountable microplate holders |
AAA23654 | Single | 20 | 23 | 25 | 28 |
AAA23651 | Tower | 16 | 19 | 22 | 25 |
AAA23652 | Flat A(large) | 3 | 4 | 4 | 5 |
AAA23653 | Flat B(small) | 4 | 5 | 6 | 7 |
1) Universal platform attachments are mounted on the dual universal platform, Under the dual universal platform are mounted only 50ml, 100ml 250ml
- Refer to the above chart (Distance between platforms is 175mm).
2) No declination
※ Above accessories need to be mounted on a universal platform which is sold separately.

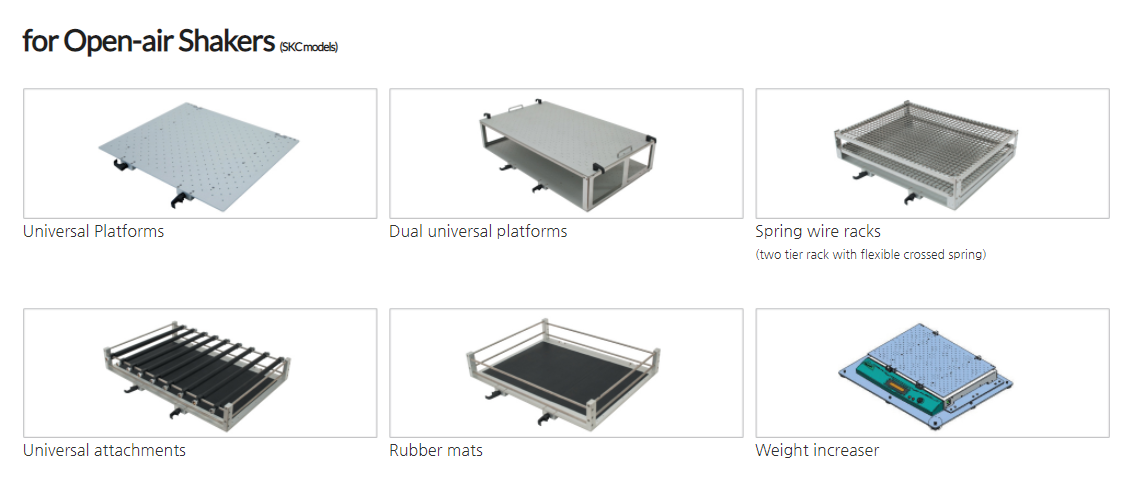

Description | SKC - 6000 models | SKC - 7000 models |
|---|
Small | Large | Small | Large |
|---|
Spring wire rack | AAA30521 | AAA30522 | AAA30523 | AAA30524 |
Universal attachment | AAA30511 | AAA30512 | AAA30513 | AAA30514 |
Rubber mat | AAA30531 | AAA30532 | AAA30533 | AAA30534 |
Lab Sticker | AAA30551 |
Weight increaser | AAA30562 | AAA30561 |
Starter Kit
- Consisting of plastic clamps that are commonly used on Universal Platforms.
- 50ml, 100ml, 250ml, 500ml, 1L, 2L
Description | Composition of Clamp | Cat. No. |
|---|
Starter Kit I | 50 ml (2), 100 ml (2), 250 ml (4), 500 ml (4), 1L (2), 2L (2) | AAA30581 |
Starter Kit II | 50 ml (3), 100 ml (3), 250 ml (6), 500 ml (6) | AAA30582
|
