Mini Shaker




● Performance


▶ Suitable for low rpm sensitive applications.

- Hybridization, immunocytochemistry, gel staining/destaining, and other bioscience applications.

▶ Microprocessor PID control.

▶ Wide speed range from 50 to 300 rpm.

▶ Orbital shaking motion in13mm diameter.

▶ Equipped with a maintenance-free BLDC motor to generate smooth, quiet, uniform, and yet powerful shaking motion.


● Convenience


▶ Vivid and colorful vacuum fluorescent display (VFD) with touch–sensitive keypad.

▶ One-touch timer for time-dependent shaking operation. (1 min. to 99 hr. 59 min.)

▶ Removable tray for easy transport of well-plates (max. 6 ea) and dishes. (optional)

▶ Compact and lightweight design allow for use in cold rooms or incubators.

▶ Variety of accessories are available to meet application demands.



● Safety


▶ Self-diagnostic function identifying errors.

▶ Its polypropylene main body is highly chemical-resistant and easy-to-clean.

▶ Over-current protection.




Model

CMS-350

Control system

PID feedback control

Display

VFD

Shaking system

Motion type

Orbital

Speed range(rpm)

50 to 300

Accuracy at 100 rpm

±5

Timer

1min. to 99hr. 59min.

Orbit size(mm / inch, dia)

13 / 0.51

Max. load(kg / Ibs)

up to 5.2 / 11.46

Dimension

Tray(W×D) (mm / inch)

276×276 / 10.87×10.87

Platform(W×D) (mm / inch)

250×250 / 9.8×9.8

Body1)(W×D×H) (mm / inch)

249×325×109 / 9.8×12.8×4.3

Net weight(kg / lbs)

8 / 17.6

Electrical requirements

AC 100 ~ 240 V, 50 / 60 Hz

Cat. No.

KR Plug

AAH3B1115K

US Plug

AAH3B1115U

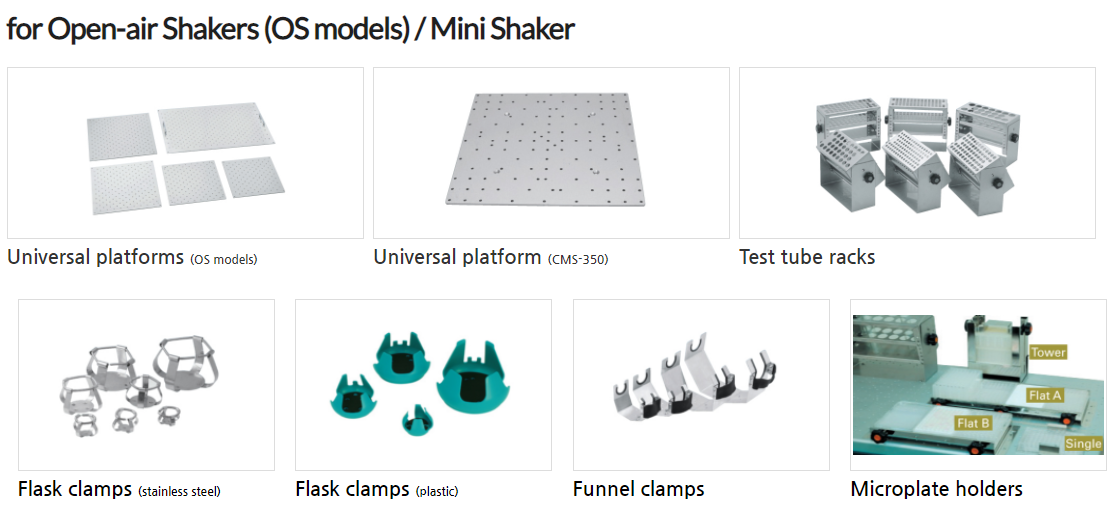

Description

CMS-350

Cat.No.

Universal platform

AAA3B501

-

Flask clamps(Stainless steel)

Erlenmeyer flask size

Max. mountable flask clamps

AAA23550

for 50 ml

16

AAA23551

for 100 ml

9

AAA23552

for 250 ml

9

AAA23556

for 300 ml

9

AAA23553

for 500 ml

5

AAA23554

for 1L

4

AAA23555

for 2L

1

AAA23557

for 2.8L

-

AAA23558

for 4L

-

AAA23559

for 6L

-

-

Flask clamps(plastic)

Erlenmeyer flask size

Max. mountable flask clamps

AAA30570

for 50 ml

16

AAA30571

for 100 ~ 125 ml

9

AAA30572

for 200 ml

9

AAA30573

for 250 ml

9

AAA30574

for 300 ml

9

AAA30575

for 500 ml

5

AAA30576

for 1L

4

AAA30577

for 2L

1

-

Funnel clamps

Separating funnel size

Max. mountable funnel clamps

AAA23562

for 250 ml

3

AAA23563

for 500 ml

2

AAA23564

for 1L

2

AAA23565

for 2L

-

-

Test Tube Racks1)

Test tube size

Mountable capacity of racks

AAA23581

for 86 test tubes, ø8mm

2

AAA23582

for 86 test tubes, ø10mm

AAA23583

for 58 test tubes, ø12mm

AAA23584

for 58 test tubes, ø14mm

AAA23585

for 32 test tubes, Ø17mm

AAA23586

for 19 test tubes, Ø25mm

AAA23587

for 10 test tubes, Ø30mm

AAA23594

for 10 test tubes, Ø35mm

AAA23593

for 4 test tubes, Ø50mm

-

Microplate holders

Max. mountable microplate holders

AAA23654

Single

6

AAA23651

Tower

6

AAA23652

Flat A (large)

-

AAA23653

Flat B (small)

-

1) No declination.
※ Above accessories need to be mounted on a universal platform which is sold separately.

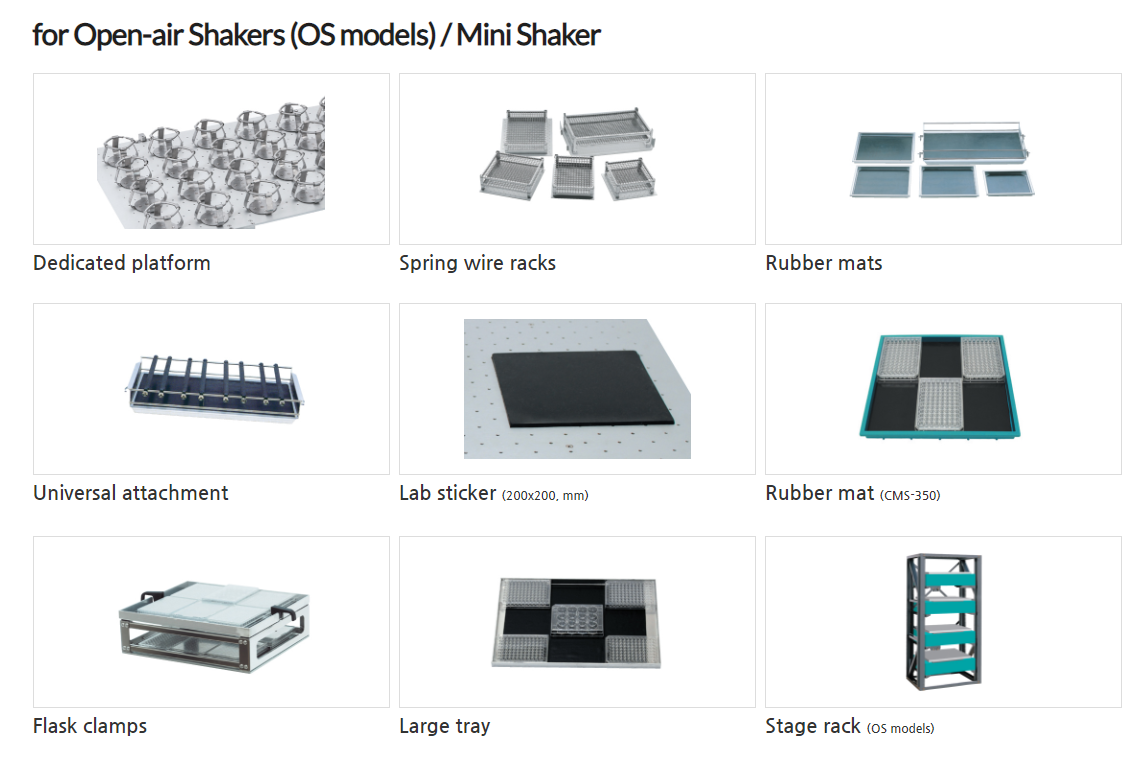

Description

CMS-350

Spring wire racks

-

AAA3B511

Erlenmeyer flask size

Max. inserting flasks

for 50 ml

15

for 100 ml

9

for 250 ml

4

for 300 ml

4

for 500 ml

4

for 1L

2

for 2L

-

for 2.8L

-

Rubber mat

AAA38501

Universal attachments

AAA3B521

Lab sticker

AAA30551

Dimpled mat

AAA38502

Microplate tray

Dual stacking

AAA3B531

Large tray

AAA3B532

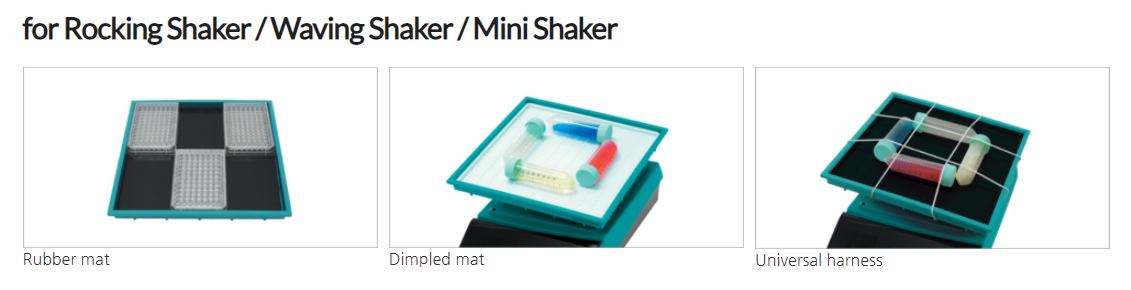

Cat. No.

Description

Component

AAA38501

Rubber mat

Tray, Sticky pad

AAA38502

Dimpled mat

Tray, Silicone pad

AAA38503

Universal harness

Tray, Sticky pad, Rubber band (6ea)
