Recirculating Coolers (Low Temp.)


● Performance


▶ Temperature range from -20°Cto 40°C.

▶ High cooling capacity up to 7.1kW at 20°C.

▶ Powerful circulating pumps up to70L/min., 6 bar.

▶ Refrigerating system is designed to reduce energy consumption and maximize refrigerating efficiency.



● Convenience


▶ Designed to simplify operation with a touch screen type display.

- Easy-to-read VFD display with interactive touch keys.

- Setting and resolution indication 0.1°C/°F.

- Quick keypad lock prevents accidental parameter changes.

- Signal indicator for operation status.

▶ Bright LED water level indicator can be seen from a distance.

▶ Built in pressure gauge for checking pump pressure at a glance.

▶ High/low pressure gauges for condition diagnosis of refrigerating system at a glance. (for H type)

▶ Wide filling inlet for easy and safe pouring of solution into the unit.

▶ Double service valve prevents refrigerant leakage for easy maintenance.

▶ Removable gridded vent for easy maintenance of condenser.

▶ Built-in casters for easy transport and installation.



● Safety


▶ Self-diagnostic function identifying errors.

▶ Complete safety protection system with warning alarms.

- Low fluid level and dry-running protection; when triggered shows an error symbol on the display and an audible buzzer sound.

- Over-temperature protection; If the equipment operates at over maximum temperature due to external environment, user can simply identify the error with a visual signal or an audible buzzer sound.

- Over-current circuit breaker.

▶ Eco-friendly R-404A / R-507 refrigerant use for environmental protection.

▶ Splash-proof keypad.


● specifications




Model

HL-05

HL-10

HL-15

HL-20

HL-15H

HL-20H

HL-25H

HL-35H

2)HL-45H

2)HL-55H

Temperature 1) (bath fluid : ethylene glycol mix 1:1 water)

Working temp. range (℃ / ℉)

-20 to 40 / -4 to 104

Temp. stability at15℃, (±℃ / ℉)

1 / 1.8

Cooling capacity(bath fluid : ethylene glycol mix 1:1 water)

at 20℃ (kw)

0.6

0.7

1.45

1.8

1.45

1.8

2.5

3.3

6.5

7.1

at 10℃ (kw)

0.5

0.6

1.15

1.5

1.15

1.5

1.8

2.3

4.5

6

at 0℃ (kw)

0.35

0.42

0.86

1.15

0.86

1.15

1.1

1.7

3

4.1

at -10℃ (kw)

0.18

0.32

0.62

0.85

0.62

0.85

0.65

1

2.1

2.5

at -20℃ (kw)

0.04

0.14

0.3

0.40

0.3

0.4

0.4

0.55

1.2

1.5

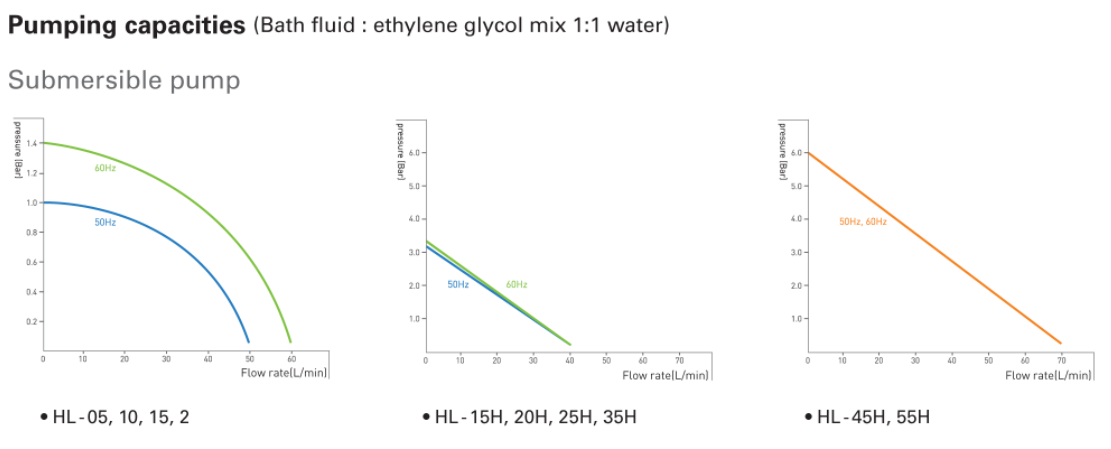

Pump

Max. flow rate

(L / min, gal / min)

50 / 13.2

40 / 10.57

70 / 18.49

Max. pressure

(bar / psi)

1 / 14.5

3.3 / 47.9

6 / 87

Dimension

Max,. filling Capacity

(L, cu ft)

7.5 / 0.26

13.5 / 0.47

25 / 0.88

39 /1.37

For tubing dia.

(mm / inch)

20 / 3/4

Filling inlet

(Ø, mm / inch)

120 / 4.7

Overall

(WxLxH, mm / inch)

405×620×710

/15.9×24.4×28

515×715× 835

/20.3×28.1×32.9

550×900×1140

/21.7×35.4×44.9

605×1045×1300

/23.8×41.4×51.2

Net weight

(kg / Ibs)

62.85

/138.6

64.85

/143

86.5

/190.7

87.35

/192.9

91.8

/202.4

92.65

/204.3

141.3

/310.9

146.3

/321.9

171±10

/377±22

176±10

/388±22

Electric requirement (230V, 60Hz)

5A

5.5A

6.5A

7.5A

6.5A

7.5A

9.5A

13.5A

Cat. No.

AAH

65001K

AAH

65011K

AAH

65021K

AAH

65031K

AAH

65121K

AAH

65131K

AAH

65141K

AAH

65151K

-

-

Electric requirement (230V, 50Hz)

4.5A

5A

6A

7A

6A

7A

7.5A

12.5A

Cat. No.

AAH

65002K

AAH

65012K

AAH

65022K

AAH

65032K

AAH

65122K

AAH

65132K

AAH

65142K

AAH

65152K

-

-

Electric requirement (120V, 60Hz)

10A

11A

13A

15A

Cat. No.

AAH

65003U

AAH

65013U

AAH

65023U

AAH

65033U

-

-

-

-

-

-

Electric requirement (380V, 60Hz)

5.5A

7A

Cat. No.

-

-

-

-

-

-

-

-

AAH

65169K

AAH

65179K

Electric requirement (380V, 50Hz)

5A

6A

Cat. No.

-

-

-

-

-

-

-

-

AAH

65168K

AAH

65178K

1) Technical data according to DIN 12876.
2) HL-45H, 55H is recorded by 380V, 60Hz.
※ Above specification value is recorded by 50Hz.
※ Product performance may be affected by ambient temperatures.
※ CE except for HL-45H/55H.
