Recirculating Coolers (Advanced Low Temp.)



● Performance

▶ Temperature range from -20°Cto 40°C.
▶ High cooling capacity up to 7.1kW at 20°C.

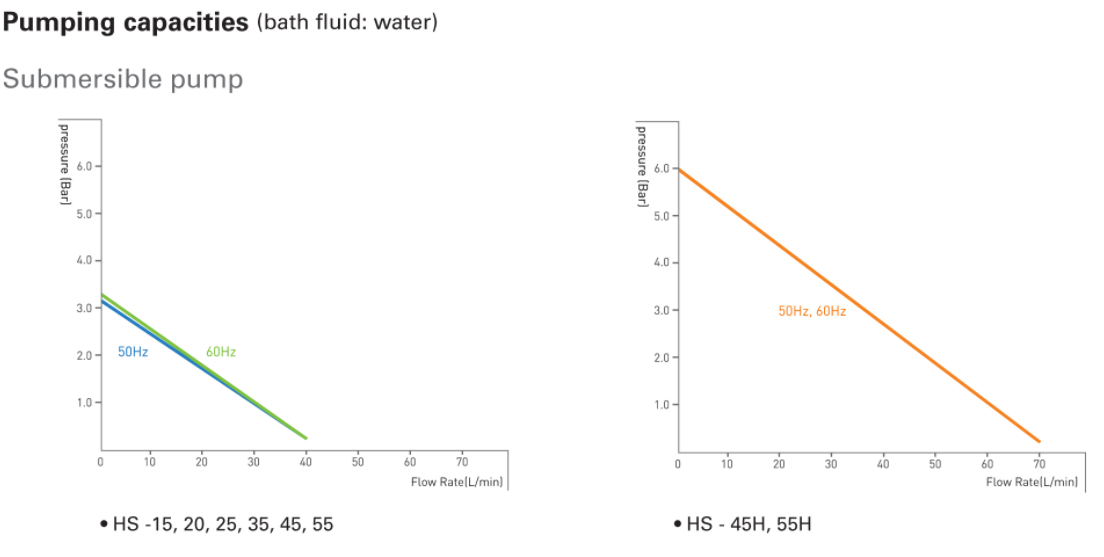

▶ Powerful circulating pumps up to70L/min., 6 bar.
▶ Precise temperature stability ± 0.2°C(at 15°C) without heater.
- Innovative and exclusive controller can adjust the cooling capacity from 1% to 100%.
▶ Refrigerating system is designed to reduce energy consumption and maximize refrigerating efficiency.


● Convenience

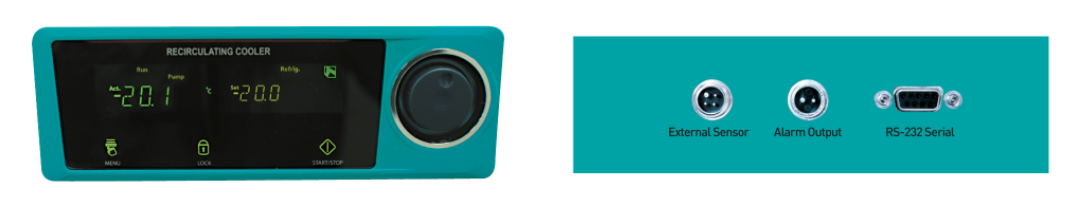

▶ Designed to simplify operation with a touch screen type display.
- Setting and resolution indication 0.1°C/°F.
- Quick keypad lock prevents accidental parameter changes.
▶ Bright LED water level indicator can be seen from a distance.
▶ Optional external sensor can be connected for more actual temperature control.
▶ Built in pressure gauge for checking pump pressure at a glance.
▶ High/low pressure gauges for condition diagnosis of refrigerating system at a glance. (for H type)
▶ Wide filling inlet for easy and safe pouring of solution into the unit.
▶ Double service valve prevents refrigerant leakage for easy maintenance.
▶ Removable gridded vent for easy maintenance of condenser.
▶ Built-in casters for easy transport and installation.
▶ RS-232 interface for external control and data collection.
▶ Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)




● Safety

▶ Self-diagnostic function identifying errors.
▶ Complete safety protection system with warning alarms.
- Low fluid level and dry-running protection; when triggered shows an error symbol on the display and an audible buzzer sound.
- Over-temperature protection; If the equipment operates at over maximum temperature due to external environment, user can simply identify the error with a visual signal or an audible buzzer sound.
- Over-current circuit breaker.
▶ Eco-friendly R-404A / R-507 refrigerant use for environmental protection.
▶ Splash-proof keypad.


● specifications


Model

HS-15

HS-20

HS-25

HS-35

HS-45

HS-55

HS-45H 2)

HS-55H 2)

Temperature 1) (bath fluid : ethylene glycol mix 1:1 water)

Working temperature range (℃ / ℉)

-20 to 40 / -4 to 104

Temperature stabilityat 15℃, (±℃ / ℉)

0.2 / 0.36

Cooling capacity(bath fluid : ethylene glycol mix 1:1 water)

at 20℃ (kw)

1.45

1.8

2.5

3.3

6.5

7.1

6.5

7.1

at 10℃ (kw)

1.15

1.5

1.8

2.3

4.5

6

4.5

6

at 0℃ (kw)

0.86

1.15

1.1

1.7

3

4.1

3

4.1

at -10℃ (kw)

0.62

0.85

0.65

1

2.1

2.5

2.1

2.5

at -20℃ (kw)

0.3

0.4

0.4

0.55

1.2

1.5

1.2

1.5

Pump

Max. flow rate(L / min, gal / min)

40 / 10.57

70 / 18.49

Max. pressure(bar / psi)

3.3 / 47.86

6 / 87

Dimension

Max. filling Capacity (L, cu ft)

13.5 / 0.47

25 / 0.88

39 /1.37

For tubing dia.(mm / inch)

20 / 3/4

Filling inlet(Ø, mm / inch)

120 / 4.7

Overall(W×L×H, mm / inch)

515×715× 835/ 20.3×28.1×32.9

550×900×1140/ 21.7×35.4×44.9

605×1045×1300/ 23.8×41.4×51.2

Net weight (kg / Ibs)

91.8/ 202.4

92.65/ 204.3

141.3/ 310.9

146.3/ 321.9

168 ±10/ 370 ±22

173±10/ 381 ±22

171 ±10/ 377 ±22

176 ±10/ 388 ±22

Electric Requirement (230V, 60Hz)

6.5 A

7.5 A

9.5 A

13.5 A

Cat. No.

AAH66011K

AAH66021K

AAH66031K

AAH66041K

-

-

-

-

Electric Requirement (230V, 50Hz)

6 A

7 A

7.5 A

12.5 A

Cat. No.

AAH66012K

AAH66022K

AAH66032K

AAH66042K

-

-

-

-

Electric Requirement (380V, 60Hz)

5.5 A

7 A

5.5 A

7 A

Cat. No.

-

-

-

-

AAH66259K

AAH66469K

AAH66359K

AAH66569K

Electric Requirement (380V, 50Hz)

5 A

6 A

5 A

6 A

Cat. No.

-

-

-

-

AAH66258K

AAH66468K

AAH66358K

AAH66568K

1) Technical data according to DIN 12876.
2) HS-45H, 55H is recorded by 380V, 60Hz.
※ Above specification value is recorded by 50Hz.
※ Product performance may be affected by ambient temperatures.
