Recirculating Coolers (High Temp.)



● Performance

▶ Wide temperature range from -20°Cto 80°C.
▶ High cooling capacity up to 7.1kW at 20°C.
▶ Powerful circulating pumps up to to70L/min., 6 bar.
▶ Precise temperature stability ± 0.1°C(at 15°C) with integrated heaters.
▶ Refrigerating system is designed to reduce energy consumption and maximize refrigerating efficiency.

● Convenience

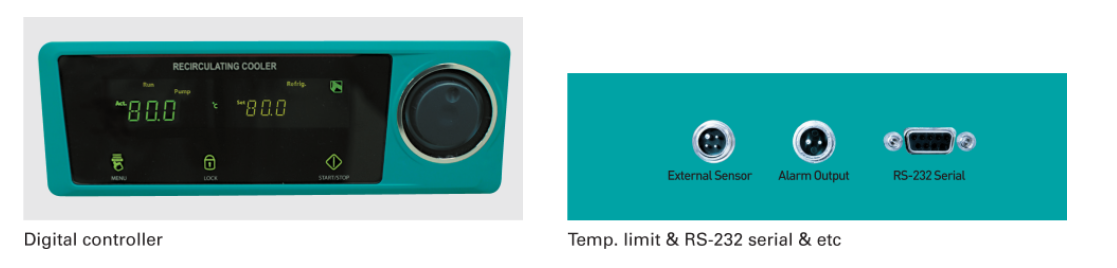

▶ Designed to simplify operation with a touch screen type display.
- Setting and resolution indication 0.1°C/°F.
- Quick keypad lock prevents accidental parameter changes.
▶ Bright LED water level indicator can be seen from a distance.
▶ Optional external sensor can be connected for more actual temperature control.
▶ Built in pressure gauge for checking pump pressure at a glance.
▶ High/low pressure gauges for condition diagnosis of refrigerating system at a glance. (for H type)
▶ Wide filling inlet for easy and safe pouring of solution into the unit.
▶ Double service valve prevents refrigerant leakage for easy maintenance.
▶ Removable gridded vent for easy maintenance of condenser.
▶ Built-in casters for easy transport and installation.
▶ RS-232 interface for external control and data collection.
▶ Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)



● Safety

▶ Self-diagnostic function identifying errors.
▶ Complete safety protection system with warning alarms.
- Low fluid level and dry-running protection; when triggered shows an error symbol on the display and an audible buzzer sound.
- Over-temperature protection; If the equipment operates at over maximum temperature due to external environment, user can simply identify the error with a visual signal or an audible buzzer sound.
- Over-current circuit breaker.
▶ Eco-friendly R-404A / R-507 refrigerant use for environmental protection.
▶ Splash-proof keypad.



● specifications



Model

HH-15

HH-20

HH-25

HH-35

HH-45H 2)

HH-55H 2)

Temperature 1) (bath fluid : ethylene glycol mix 1:1 water)

Working temperature range (℃ / ℉)

-20 to 80 / - 4 to 176

Temperature stabilityat 15℃ (±℃ / ℉)

0.1 / 0.2

Cooling capacity(bath Fluid : ethylene glycol mix 1:1 water)

at 80℃ (kw)

2

2.5

3.5

4

6

7.5

at 40℃ (kw)

0.9

1

2.4

2.5

4.5

5

at 20℃ (kw)

1.45

1.8

2.5

3.3

6.5

7.1

at 0℃ (kw)

0.86

1.15

1.1

1.7

3

4.1

at -20℃ (kw)

0.3

0.4

0.4

0.55

1.2

1.5

Heating capacity(kw)

2

4

8.4

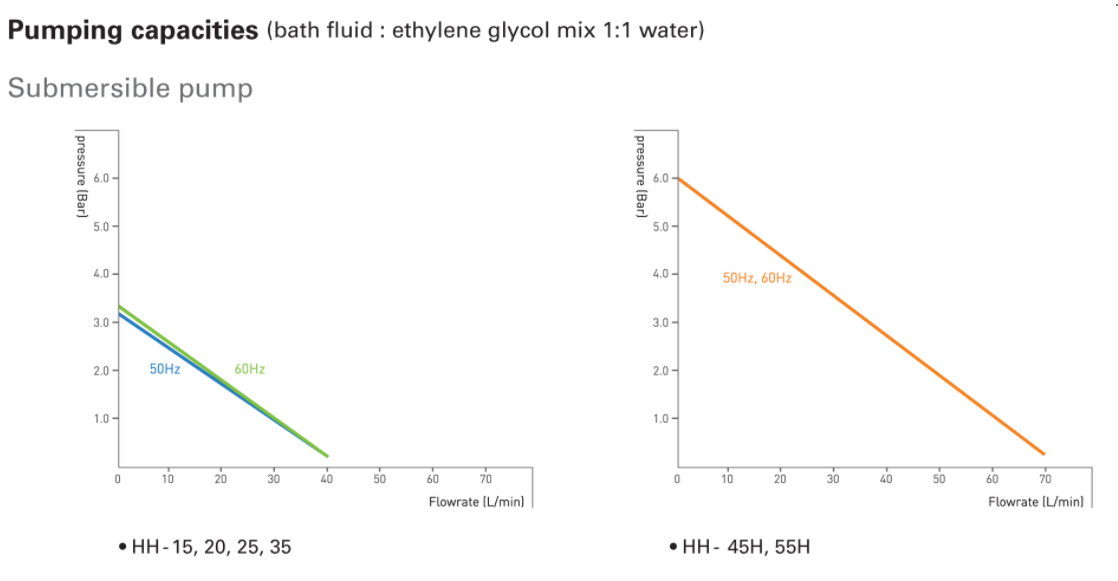

Pump

Max. flow rate(L / min, gal / min)

40 / 10.6

70 / 18.5

Max. pressure (bar / psi)

3.3 / 47.9

6 / 87.02

Dimension

Max. filling capacity (L, cu ft)

13.5 / 0.47

25 / 0.88

39 / 1.37

For tubing dia. (mm / inch)

20 / 3/4

Filling inlet (Ø, mm / inch)

120 / 4.7

Overall (WxDxH, mm / inch)

515×715× 835/ 20.3×28.1×32.9

550×900×1140/ 21.7×35.4×44.9

605×1045×1300/ 23.8×41.4×51.2

Net weight (kg / Ibs)

92 / 202.8

93 / 205

142 / 313

147 / 324

171±10/ 377±22

176±10/ 388±22

Electric requirement (230V, 60Hz)

15A

16A

27A

31A

Cat. No.

AAH67012K

AAH67021K

AAH67031K

AAH67041K

-

-

Electric requirement (230V, 50Hz)

14.5A

15.5A

25A

30A

Cat. No.

AAH67012K

AAH67022K

AAH67032K

AAH67042K

-

-

Electric requirement (380V, 60Hz)

18.3

19.8

Cat. No.

-

-

-

-

AAH67159K

AAH67169K

Electric requirement (380V, 50Hz)

17.8

19.3

Cat. No.

-

-

-

-

AAH67158K

AAH67168K

1) Technical data according to DIN 12876.
2) HS-45H, 55H is recorded by 380V, 60Hz.
※ Above specification value is recorded by 50Hz.
※ Product performance may be affected by ambient temperatures.
※ Under the condition of no-load operation, cooling capacity should be lower than heating capacity.
