Laboratory Refrigerator (CLG3-70)




● Structural functional features


▶ Stable temperature control with excellent insulation and sealing structure.

▶ Clean construction with no condensation on outer walls.

▶ Interior has excellent corrosion resistance as made of stainless steel.

▶ Magnetic packing door with smooth opening and closing.

▶ Casters for easy movement / installation. (except for 150 model)

▶ Space-efficient configuration with double stackable. (for 150 model)

▶ Auto defrost function eliminates the need for separate defrosting.



● Use Convenience Features


▶ Stable control with JEIO TECH's exclusive controller.

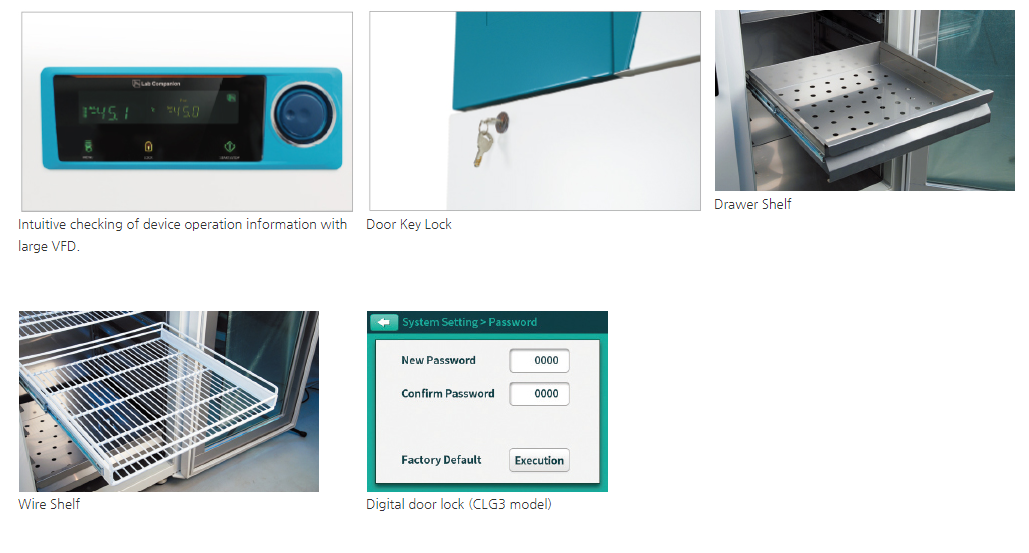

▶ Easy to use with Clear VFD and Touch Key.

▶ Simultaneously displays set temperature and actual temperature.

▶ Calibration function minimizes temperature difference.

▶ Height-adjustable and strong shelf provided as standard.

▶ Built-in fluorescent lamps. (except for 150 model)

▶ Glass door model for easy storage status checking.

▶ Convenient connecting external devices through Ø50 mm cable port. (optional) (except for 70,150 model)



● Outstanding Safety


▶ The 850 and 1400 model are equipped with two refrigeration systems to maintain temperature even in the event of a single refrigeration system failure.

▶ Temperature deviation notification. (Hi & Low Temperature)

▶ Malfunction prevented by controller lock function.

▶ Door lock with key as standard.

▶ Enhanced security with digital door lock. (CLG3)



● Satisfies the requirements for safe cold storage of pharmaceuticals


▶ Temperature fluctuation and variation meets the requirements of ICH Guideline Q1A. (R2)

▶ Stable temperature control for long-term operation.



● Accessories provided for convenient use


▶ Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection.

(when purchased LC GreenBox, CLG3-70 Only)

▶ Voice alarm system transmits voice messages to designated phone if there is an abnormality in operation (optional).

▶ Convenient use with drawer type shelf (optional).

▶ Selection of various temperature recorders. (optional) (Dot, Chart, Thermal Line)




● specifications


Model

CLG3-70

CLG-150

CLG-300

CLG-650

CLG-850

CLG-1400

Temperature range (℃ / ℉)

2 to 10 / 35.6 to 50

2 to 10 / 35.6 to 50

2 to 10 / 35.6 to 50

2 to 10 / 35.6 to 50

2 to 10 / 35.6 to 50

2 to 10 / 35.6 to 50

Chamber volume (L / cu ft)

73 / 2.6

156 / 5.5

303 / 10.7

603 / 21.3

805 / 28.4

1327 / 46.9

Dimension

Interior (W x D x H, mm / inch)

418 x 440 x 400
/ 16.5 x 17.3 x 15.7

550×580×490 / 21.7×22.8×19.3

550x550x1000 / 21.7×21.7×39.4

650x640x1450 / 25.6×25.2×57.1

750x740x1450 / 29.5×29.1×57.1

1430x640x1450 / 56.3×25.2×57.1

Exterior (W x D x H, mm / inch)

522 x 600 x 725
/ 20.6 x 23.6 x 28.5

683×791×870 / 26.9×31.1×34.4

670x770x1515 / 26.4×30.3×59.6

770x865x1965 / 30.3×34.1×77.4

870x965x1965 / 34.3×37.9×77.4

1550x865x1965 / 61×34.1×77.4

Net weight (kg / Ibs)

67 / 147.7

100 / 220.5

130 / 286.6

210 / 463

260 / 573.2

350 / 771.6

Shelf

Quantity of wire shelf (standard / max.)

2 / 3

2 / 6

3 / 11

3 / 17

3 / 17

6 / 34

Quantity of wire shelf (slide) (max.)

3

4

7

11

11

22

Quantity of drawer shelf (slide) (max.)

2

3

5

8

8

16

Load per shelf (kg / lbs)

30 / 66.1

26 / 57.3

30 / 66.1

Fluorescent lamp

4.2W, 1ea

-

18W, 1ea

18W, 1ea

32W, 1ea

32W, 1ea

Electrical requirements (230V, 60Hz)

1.1A

2A

2.3 A

4A

5A

6A

Cat. No.

Solid door

-

AAHE1001K

AAHE1011K

AAHE1021K

AAHE1031K

AAHE1041K

Glass door

AAHE1301K

AAHE1101K

AAHE1111K

AAHE1121K

AAHE1131K

AAHE1141K

Electrical requirements (230V, 50Hz)

1.1A

2A

2.3 A

4A

5A

6A

Cat. No.

Solid door

-

AAHE1002K

AAHE1012K

AAHE1022K

AAHE1032K

AAHE1042K

Glass door

AAHE1302K

AAHE1102K

AAHE1112K

AAHE1122K

AAHE1132K

AAHE1142K

Electrical requirements (120V, 60Hz)

2.9A

4A

4.5 A

6.5 A

9A

13A

Cat. No.

Solid door

-

AAHE1003U

AAHE1013U

AAHE1023U

AAHE1033U

AAHE1043U

Glass door

AAHE1303U

AAHE1103U

AAHE1113U

AAHE1123U

AAHE1133U

AAHE1143U
