Filtering Storage Refrigerator (FSR)

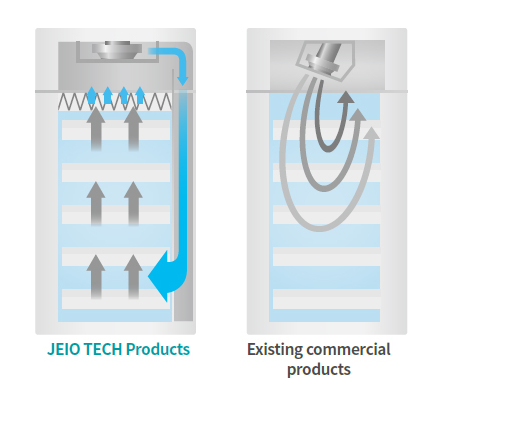

● Optimized air flow
- Excellent temperature uniformity and effective removal of hazardous gas through uniform air circulation throughout the cabinet.
● Brightness control LED lamp
- Easy to observe the inside with LED lamp, and possible to adjust the brightness to 5 levels.
● Filter check notification function
- Filter maintenance notification function of 1-24 month cycle makes it easy to manage the filter according to the usage environment.
● Real-time monitoring (Option)
- Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection.
(when purchased LC GreenBox)
● Easy to use as a drawer-type shelf
- Drawer-type shelf for convenient handling of inner samples installed as standard.
● Structure convenient for moving and installation
- Structure allows it to be moved and fixed and it can be also be safely installed horizontally.
● JEIO TECH exclusive controller
- Easy to use with touch, and displays useful information in real time such as VOC, temperature, humidity, filter check notifications, etc.
● Filter configuration customizable for application
- Various custom filter configurations supported depending on the chemical nature of the reagents to be stored.
.png "Filtering Storage Refrigerator (FSR).png")
 2.png "Filtering Storage Refrigerator (FSR) 2.png")
● specifications
Model | FSR-650G | FSR-1400G |
|---|
Temperature range (℃ / ℉) | 0 ~ 15 / 32 ~ 59 | 0 ~ 15 / 32 ~ 59 |
volume | Capacity (1 L bottle *ea) | 100 | 200 |
Internal volume(L / cu ft) | 660 / 23.3 | 1327 / 46.7 |
Dimensions | External (WⅹDⅹH, mm / inch) | 770 x 850 x 1955
/ 30.3 x 33.5 x 77 | 1550 x 850 x 1955
/ 61 x 33.5 x 77 |
Internal (WⅹDⅹH, mm / inch) | 650 x 640 x 1450
/ 25.6 x 25.2 x 57.1 | 1430 x 700 x 1450
/ 56.3 x 27.6 x 57.1 |
Drawer (WⅹDⅹH, mm / inch) | 600 x 595 x 100
/ 23.6 x 23.4 x 3.9 | 500 x 595 x 100
/ 19.7 x 23.4 x 3.9 |
Spill tray (WⅹDⅹH, mm / inch) | 602 x 550 x 35
/ 23.7 x 21.7 x 1.4, 1ea | 602 x 550 x 35
/ 23.7 x 21.7 x 1.4, 2ea |
Quantity of drawer (standard/max.) | 4 / 8 | 8 / 16 |
Weight (kg / lbs) | 320 / 705.5 | 640 / 1411 |
230V/60Hz, A | 3 | 4 |
Cat. No. | AAHF13112K | AAHF13122K |
230V/50Hz, A | 3 | 4 |
Cat. No. | AAHF13112K | AAHF13122K |
120V/60Hz, A | 3.7 | 7.3 |
Cat. No. | AAHF13113U | AAHF13123U |
