Laboratory Refrigerators



● Performance

▶ Fully insulated chamber ensuring minimal chamber’s temperature fluctuation.
▶ High thermal efficiency evaporation system, made of low corrosive materials.
▶ Optimizing defrost systems
- Innovative auto-defrost system automatically activated- Innovation auto-defrost system automatically activated on detecting amount of frost accumulated in the evaporator for CLG-150, 300, 650.
- None defrost system needed for CLG-850, 1400 due to its dual refrigerating system.
▶ None defrost system needed for CLG-850, 1400 due to its dual refrigerating system.

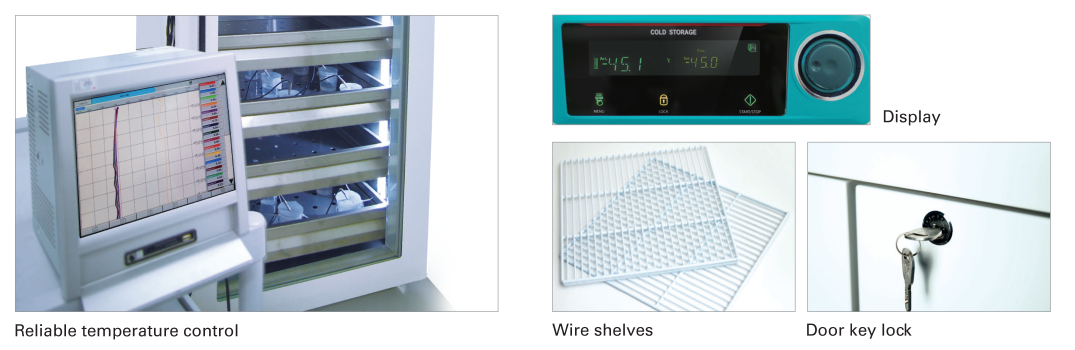

● Convenience

▶ Intuitive and easy-to-operate control panel with VFD and touch-sensitive buttons.
- Easy temperature unit conversion between ℃and ℉
▶ Clear observation of stored samples.
- Tempered glass door with built in heating wire. (for the models with glass doors only)
- Built-in bright fluorescent lighting. (except for CLG-150)
▶ High-quality 304 grade stainless steel interior.
▶ Efficient internal space use with height adjustable wire shelves.
▶ Built-in 50mm diameter cable port for external probes or wires. (except for CLG-150)
▶ Dedicated stand with casters and stacking kit for CLG-150 for use in labs with limited space. (optional)
▶ Three types of recorders to choose from (optional)
- Dot recorder (6 point)
- Chart recorder (6”, 24hr/7days)
- Thermal line recorder


● Safety

▶ High/low temperature protection, Over current protection.
▶ Open door alarm and automatic fan stop interlocked with door opening for minimization of heat loss.
▶ Keypad lock function, Built in door lock with a key.



● specifications

Model

CLG-150

CLG-300

CLG-650

CLG-850

CLG-1400

Chamber volume (L / cu ft)

156 / 5.5

303 / 10.7

603 / 21.3

805 / 28.4

1327 / 46.9

Temperature range (℃ / ℉)

2 to 10 / 35.6 to 50

Refrigerator (Hp)

1/ 8

1/ 6

1/ 4

1/ 6×2ea

1/ 4×2ea

No. of wire shelf (standard / max.)

2 / 6

3 / 11

3 / 17

3 / 17

6 / 34

No. of wire shelf, slide (max., optional)

4

7

11

11

22

No. of drawer shelf, slide

(max., optional)

3

5

8

8

16

Max. load per shelf (kg / Ibs)

26 / 57.3

30 / 66.1

Material

Interior

Stainless steel #304

Exterior

Steel, 1 mm, powder coating

Insulation

60mm, Polyurethane foam

Dimension (W×D×H)

Interior (mm / inch)

550×580×490 / 21.7×22.8×19.3

550x550x1000 / 21.7×21.7×39.4

650x640x1450 / 25.6×25.2×57.1

750x740x1450 / 29.5×29.1×57.1

1430x640x1450 / 56.3×25.2×57.1

Exterior (mm / inch)

683×791×870 / 26.9×31.1×34.4

670x770x1515 / 26.4×30.3×59.6

770x865x1965 / 30.3×34.1×77.4

870x965x1965 / 34.3×37.9×77.4

1550x865x1965 / 61×34.1×77.4

Net weight (kg / Ibs)

100 / 220.4

130 / 286.6

210 / 463

260 / 573.2

350 / 771.6

Electrical requirements (230V, 60Hz)

2A

2.3 A

4A

5A

6A

Cat. No.

Solid door type

AAHE1001K

AAHE1011K

AAHE1021K

AAHE1031K

AAHE1041K

Glass door type

AAHE1101K

AAHE1111K

AAHE1121K

AAHE1131K

AAHE1141K

Electrical requirements (230V, 50Hz)

2A

2.3 A

4A

5A

6A

Cat. No.

Solid door type

AAHE1002K

AAHE1012K

AAHE1022K

AAHE1032K

AAHE1042K

Glass door type

AAHE1102K

AAHE1112K

AAHE1122K

AAHE1132K

AAHE1142K

Electrical requirements (120V, 60Hz)

4A

4.5 A

6.5 A

9A

13A

Cat. No.

Solid door type

AAHE1003U

AAHE1013U

AAHE1023U

AAHE1033U

AAHE1043U

Glass door type

AAHE1103U

AAHE1113U

AAHE1123U

AAHE1133U

AAHE1143U

※Technical data according to DIN 58345.
