Acid / Corrosive Cabinets


● Convenient and safe ventilation system.

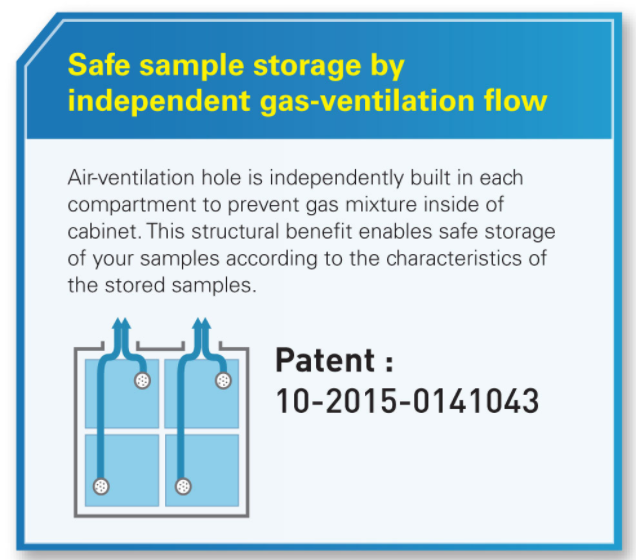

Built-in ventilation hole.

- Ventilation hole on the top and exhaust holes at the back prevent the accumulation of explosive gas.

Exhaust system connection.

- Cabinet can be connected to an in-house laboratory exhaust system to efficiently exhaust the vapor inside of the cabinet. (except for SC-C0706D1)



● Safe storage of corrosive substances.


▶ Corrosion-resistant interior material.

- Phenol resin coated panel is suitable for long-term storage of acid / base substance.

▶ Robust metal structure.

- Sturdy steel frame prevents deformation.

- Epoxy coated surface provides excellent chemical resistance.

▶ Space-efficient interior design.

- Internal compartment structure is beneficial for practical and safe space use by organizing the inner space efficiently according to the characteristics of the stored samples. (except for SC-C0706D1)





● Sturdy and secure shelf structure.


▶ Sturdy shelf structure.

- Max. 80kg heavy load sustainable shelf.

- Designed to perfectly fastened to both walls.

▶ Safe shelf design.

- Shelf with the height of 30mm blocks spreading leakage from accidental sample spillage.

▶ Optimum shelf selection according to the stored samples.

- The unit comes together with epoxy powder coated steel shelves and polypropylene spill tray for high chemical resistance.(except for SC-C0706D1)



● specifications


ModelSC-C1912D4SC-C1912D2SC-C1906D2SC-C1906D1SC-C0706D1 1)
Internal volume (L / cu ft)213 / 7.5 x 4ea447 / 15.9 x 2ea213 / 7.5 x 2ea445 / 15.7115 /  4.1
No. of spill tray (standard)4221-
No. of shelf (standard / max.)4 / 86 / 122 / 43 / 6-
Distance of between shelf(mm / inch)120 / 4.7100 / 3.9130 / 5.1100 / 3.9-
Max. load per shelf (kg / lbs)80 / 176.4
MaterialsInteriorEpoxy powder coated steel
ExteriorPhenol resin coated steel
Dimension(W×D×H)

Interior

(mm / inch)

561x466x818 x 4ea

/ 22.1x18.3x32.2 x 4ea

561x466x1712 x 2ea

/ 22.1x18.3x67.4 x 2ea

561x466x818 x 2ea

/ 22.1x18.3x32.2 x 2ea

558x466x1712

/ 21.9xx18.3x67.4

505x421x542

/ 19.9x16.6x21.3

Exterior

(mm / inch)

1255x555x1900

/ 49.4x21.9x74.8

1255x555x1900

/ 49.4x21.9x74.8

655x555x1900/ 25.8x21.9x74.8655x555x1900/ 25.8x21.9x74.8

600x510x650

/ 23.6x20.1x25.6

Shelf

555x426x30

/ 21.9x16.8x1.2

-
Bottom collecting sump-

502x420x40

/ 19.8x16.5x1.6

Tray (PP)545x419x33 / 21.5x16.5x1.3-

Net weight

(kg / lbs)

284 / 626.1257 / 566.6160 / 352.7146 / 321.952 / 114.6
Cat. No.AAAF60043AAAF60025AAAF60023AAAF60011AAAF60012

1) No shelf and spill tray for SC-C0706D1. Sample is directly stored on the bottom collecting sump. (max. load 80kg)
※ It is recommended to use with an in-house ventilation system to efficiently exhaust the vapor inside of the cabinet.
Using it alone may cause product durability affected from inflammable vapor stayed inside during acid/corrosive sample storage.
