Rubber rolls for textile dyeing




● Merserizing M/C




Name of Rolls

Hardness Hs A,D

Properties

Application Area

S-SO

A 70-85

Abrasion resistance,
Chemical-resistance

Washing mangle

S-RHC

A 60-98

chemical-resistance 150℃

S-RHF

A 50-94

Abrasion resistance,
Chemical-resistance

CPB Mangle, Padding mangle

S-ENⅠ

D 84

Abrasion resistance,
Chemical-resistance

CPB Mangle, Padding mangle

S-ENⅡ

D 89

Abrasion resistance,
Chemical-resistance,
Temperature resistance 200℃

Desizing mangle, High heat washing mangle

S-WO

A 30-90

Abrasion resistance,
Heat resistance

Washing mangle,
Squeezing washing mangle



● Production Introduction

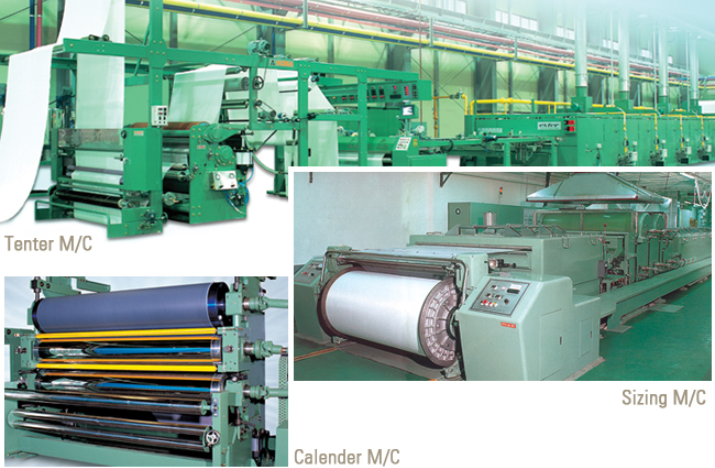

Tenter M/C

Name of Rolls

Hardness Hs A

Properties

Application Area

STM

60~95

 · Excellent resistance against
   softening agent and variable oils.
 · Excellent elasticity and small
   dynamic calorification.

Tenta mangle, Padding mangle



 Sizing M/C

Name of Rolls

Hardness Hs A

Properties

Application Area

SSZ

50~85

 · Excellent resistance against
   water and oil solutions.
 · Temperature up to 100℃

Sizing rolls, Immersion rolls, Pushing rolls, etc.



 Calender M/C

Name of Rolls

Hardness Hs D

Properties

Application Area

TEMP - ROK

84~87

 · Excellent resistance against
   high temperature up t 200℃
 · Good chemical-resistance.
 · produce good quality of up to
   a double number compared
   with paper toll at using cire-
   calender roll.

Various kinds of high-temperature embossing rolls, Cire-calender roll.




● Other Production Introduction


Name of Rolls

Hardness Hs A

Application Area

Comfit belt
Sanforizing belt
Comfit roll

35-45

  Very excellent Elasticity
  Excellent heat resistance and abrasion resistance
  Longer of grinding cycle

Drum print roll

65-98

  Excellent elasticity and chemical resistance

60-95

  Material with further strengthened elasticity

60-95

  Material with maximum strengthened heat resistance and elasticity

Rolling M/C

55-80

  Material with excellent slip resistance and abrasion resistance

45-60

  Material with excellent slip resistance and abrasion resistance to
  be applied to the place with mass generation of static electricity

60-85

  Material with excellent abrasion resistance

Electric -
Conductive roll

60-80

  Material with excellent abrasion resistance and chemical
  resistance to be applied to the place with mass generation of static
  electricity

70

  Material with excellent abrasion resistance and heat resistance to
  be applied to the place with mass generation of static electricity

Laminating roll

40-95

  Applied to the place requiring various polar solvents
