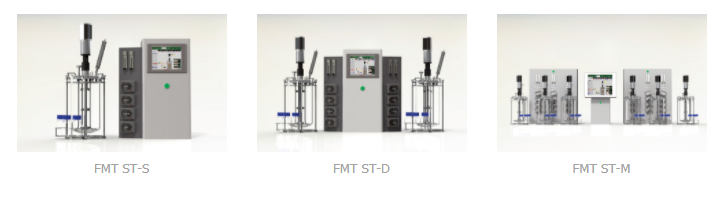

FMT ST SERIES
BENCH TOP FERMENTOR: FMT ST Series
- Credibility and precise control are important for the lab scale fermentor.
The FMT ST series control system, a touch screen computer loaded with HMI, can easily and accurately control diverse variables. This system, which is a standard-type fermentor for experiments, was produced in a way that enables data to be easily input-output and processed.
1. Features
· Structured in a single shell vessel, with a cartridge heater & cooler applied
· 8.4" touch screen computer with HMI allows for easy operation
· PLC adopted as a main control system
· Loaded with an interlocking control program to enable the cultivation of various conditions
DO interlocking function - Agitation Speed
FEED interlocking function - dissolved oxygen, supply time
PH interlocking function - feed rate, dissolved oxygen
· A controller whose reliability can be guaranteed has been adopted.
· Cylinder borosilicate vessel (Pyrex glass)
· Agitation system: mechanical seal used
· Various nozzles made with precisely processed STS 316L and parts guarantee the highest level of confidence.
· Elegant design considered for easy repair and cleaning

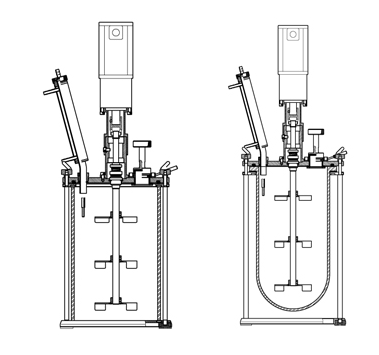

2. VesselType

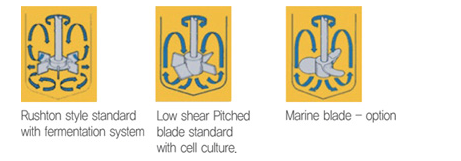

3. Impeller
4. Specifications
· Autoclavable single shell borosilicate glass vessel
· 3~14L total volume
· Electro polished STS316L head plate & bottom plate
· Nozzles
-Inoculum port : Flaming (option: Septum nozzle or aseptic inoculation valve)

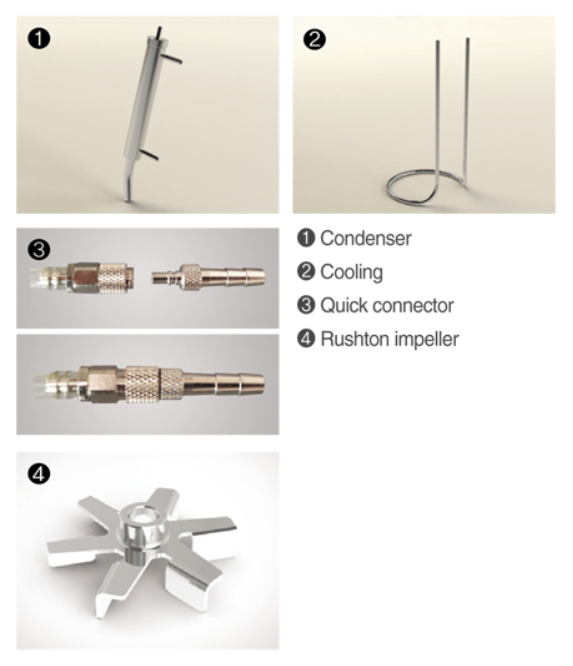

-Cartridge heater & cooler
-Temperature, pH, DO, foam sensor (option : ORP, level, OD sensor)
-Exhaust & condenser
-Agitation
-4 media feeds
-Sampling & harvest (option: Aseptic transfer valve)
· Agitation
-Single mechanical seal
-High torque 60 W BLDC motor (30~1,200 rpm)
-3 baffles or more
· Aeration
-Ring sparger (option : 1~10㎛ micro sparger)
-0.2㎛ disposable hydrophobic filter with check valve
· Removable addition bottles support
-Peristaltic pump with tubings
· Impeller
-Rushton type/Pitched blade/Marine blade
· Gas flow
-2 gas control rotameters
(option : 4 rotameters or 1~4 mass flow controller)
-Flow rate
0.3~3 L/min
0.7~7 L/min
1~10 L/min
1.4 ~ 14 L/min
5. Control
· 8.4" or 17" touch screen computer
· 1 to 12 vessels intelligent control
· 16 control loop per vessel
· Temperature control : heating/cooling (option : water chiller)
· pH control : acid/base agent
· Agitation control : 30 ~ 1,200 rpm
· DO control : PID cascade control with agitation, feeding and gas flow rate
· Feed control : fed-batch control by time, DO, pH
· 4 pump control : acid, base, anti-foam, feeding easily calibrated pump
· 8 multi trend log data per vessel
· Easily calibrated sensors
