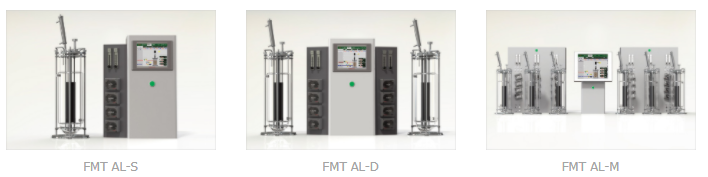

FMT AL SERIES
LAB FERMENTOR : FMT AL Series
- This air-lift bioreactor for cultivating cells that are sensitive to shear stress was designed to maximize the stirring effect following the circulation of injected air.
This control system can control the type and amount of injected gas.
1. Features
· Air-lift type bioreactor in double shell structure
· Aeration system (L/D) in various types
· An 8.4" touch screen computer with HMI that can be conveniently operated
· PLC adopted as a main control system
Loaded with an interlocking control program to enable the cultivation of various conditions
DO interlocking function
FEED interlocking function - dissolved oxygen, supply time
PH interlocking function - feed rate, dissolved oxygen
· A controller whose reliability can be guaranteed has been adopted
· Cylinder borosilicate vessel (Pyrex glass)
· Various nozzles made with precisely processed STS 316L and parts guarantee the highest level of confidence
· Elegant design considered for easy repair and cleaning

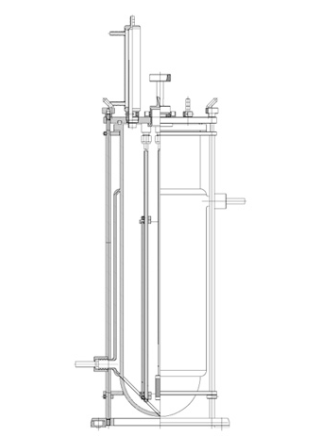

2. VesselType
3. Specifications
· Aeration based circulation minimizes shear stress
· Double shell vessel perfect for cell culture: precisely controls temperature
· Various L/D
· Autoclavable double shell borosilicate glass vessel
· 3~14L total volume
· Electro polished STS316L head plate & bottom plate
· Nozzles
-Inoculum port : Flaming (optional : Septum nozzle or aseptic inoculation valve)
-Temperature, pH, DO, foam sensor (option : ORP, level, OD sensor)
-Exhaust & condenser
-4 media feeds
-Sampling & harvest (optional : Aseptic transfer valve)
· Aeration
-1~10㎛ micro sparger
-0.2㎛ disposable hydrophobic filter with check valve
· Removable addition bottles support
-Peristaltic pump with tubing
· Gas flow
-2 gas control rotameters (option : 4 rotameters or 1 ~ 4 mass flow controller)
-Flow rate
0.3~3 L/min
0.5~5 L/min
0.7~7 L/min
1~10 L/min
1.4~14 L/min
4. Control
· 8.4" or 17" touch screen computer
· 1 to 12 vessels intelligent control
· 16 control loop per vessel
· Temperature control : heating/cooling (option : water chiller)
· pH control : acid/base agent feeding control
· DO control : fed-batch control by time, DO, pH
· 4 pump control : acid, base, anti-foam, feeding easily calibrated pump
· Flow control (option) : 1~4 mass flow control
· 8 multi trend log data per vessel
· Easily calibrated sensors
