FMT PL Series

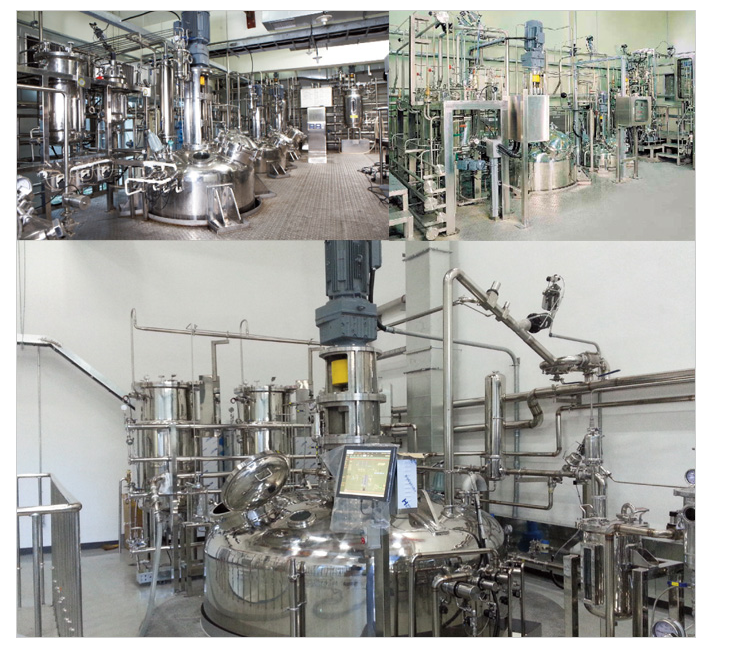

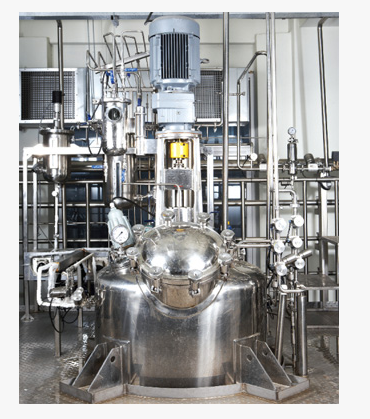

PLANT(INDUSTRIAL) FERMENTOR : FMT PL Series
1. Features
A graphic HMI program that is easy-to-use and a reliable PLX system have been adopted.
Through the use of an HMI program that is suitable for 21CFR PART 11, only approved users can change control variables.
The highest-level of credibility and safety are guaranteed through the use of the PLC system.
Pollution is prevented during a blackout. This product can work normally after a blackout by using a program to compensate for a blackout.
2. Specifications
· High performance design
· Vessel with water jacketed and insulation (STS316L vessel + STS304 jacket)
· Automatic sterilization
· 1~100KL total volume or more
· Top plate
-Inoculum port : Flaming(option : Aseptic inoculation valve)
-Pressure gauge and transmitter port
-Foam sensor port
-Exhaust port & condenser
-Agitation (top drive only)
-Light and spare ports
-Sight glass
-Manhole
· Upper side wall
-3 media port
-Gas overlay port and spare port
-Transfer port
· Lower side wall
-Sampling port
-Temperature, pH, DO sensor port and spare port
· Bottom
-Harvest
-Agitation (bottom drive only)
· Agitation
-Double mechanical seal
-High torque AC geared motor
-4 baffles or more
· Aeration
-Ring sparger (option : 1~10㎛ micro sparger)
-0.2㎛ disposable hydrophobic filter with check valve
· Impeller
-Rushton type/Pitched blade/Marine blade
· Gas flow
-FIC + bypass rotameter
-Flow rate : max 1 vvm or more
-2 or more FIC(option)
3. Control
· 17" touch screen computer
· 1 to 255 vessels intelligent control
· 16 control loop per vessel
· Temperature control : PID control with water jacket heat exchanger(or heater) and circulation loop
· pH control : acid/base agent
· Agitation control : speed control
· DO control : PID cascade control with agitation, feeding and gas flow rate
· Antifoam control : antifoaming agent
· Feed control : fed-batch control by time, DO, pH
· 8 multi trend log data per vessel
· Easily calibrated sensors
· Level control : electrode type Hi/Low level control load cell type weight control(option)
· Optional sensing unit : ORP, OD, 2nd pH, 2nd DO
