TENAC / TENAC-C (Asahi Kasei)

Production and sales began in May 1972 for homopolymer and in December 1985 for copolymer. Asahi Kasei is the world only producer of both homopolymer and copolymer polyacetal.

Capacity
- Okayama, Japan 44,000 T/y(20,000 T/y homopolymer, 24,000 T/y copolymer).
- Zhangjiagang, China　20,000 T/y copolymer.

1. TENAC (Homopolymer)

GRADE

Features

Typical Uses

2010

Super high-impact grade. Highest molecular weight category.

Ski binding parts, clips

SH210

Similar to 2010, but comparable to Tenac-C copolymer in molding-process
thermal stability.

Ski binding parts, clips

3010

High-impact, high-elongation grade. 2nd-highest molecular weight category.

Ski binding parts, rollers

SH310

Similar to 3010, but comparable to Tenac-C copolymer in molding-process
thermal stability.

Ski binding parts, rollers

4010

High-impact, high-elongation grade. Medium viscosity.

Tape recorder and VCR parts,
seat belt parts

SH410

4Similar to 4010, but comparable to Tenac-C copolymer in molding-process
thermal stability.

Tape recorder and VCR parts,
seat belt parts

4060

Medium-viscosity grade with reduced sliding noise.

Motor parts

5010

General-purpose grade. Balanced flowability and mechanical properties.

Gears, cams

SH510

Similar to 5010, but comparable to Tenac-C copolymer in molding-process
thermal stability.

Gears, cams

7010

High-flow grade. Suited for thin-wall, long-flow-distance moldings.

Fasteners, aerosol valve parts,
other multi-cavity molded parts

SH710

Similar to 7010, but comparable to Tenac-C copolymer in molding-process
thermal stability.

Fasteners, aerosol valve parts,
other multi-cavity molded parts

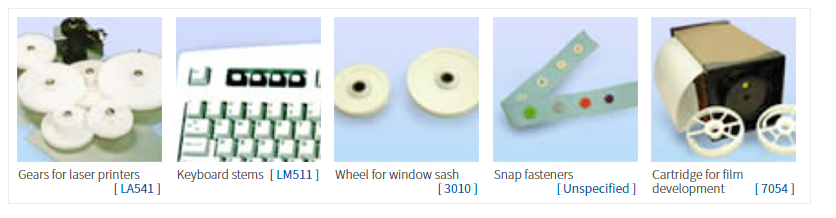

● TENAC APPLICATION EXAMPLE




2. TENAC-C (Co-polymer)

GRADE

Features

Typical Uses

3510

High-impact, high-elongation grade. Increased molecular weight.

Rollers, conveyor parts

4520

General-purpose grade.
Characterized by balanced flowability and mechanical properties.

Gears, cams, hose joints, clips, switches,
mechanical parts for audio/video equipment

5520

Similar to 4520, but with higher flow.

Gears, cams, hose joints, clips, switches,
mechanical parts for audio/video equipment

7520

High-flow grade. Suited for thin-wall, long-flow-distance moldings.

Lighters, aerosol valves, fasteners

8520

Super high-flow grade.

Lighters, aerosol valves, fasteners

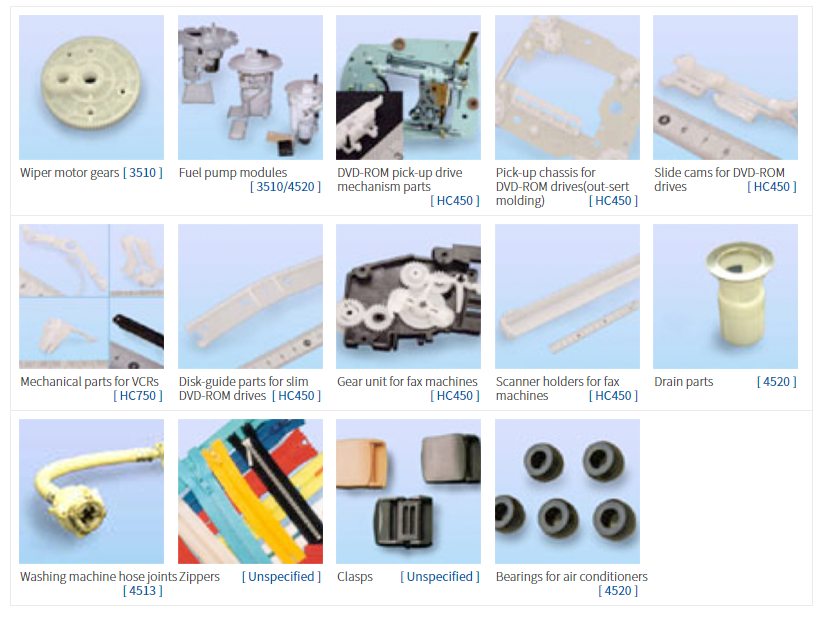

● TENAC-C APPLICATION EXAMPLE

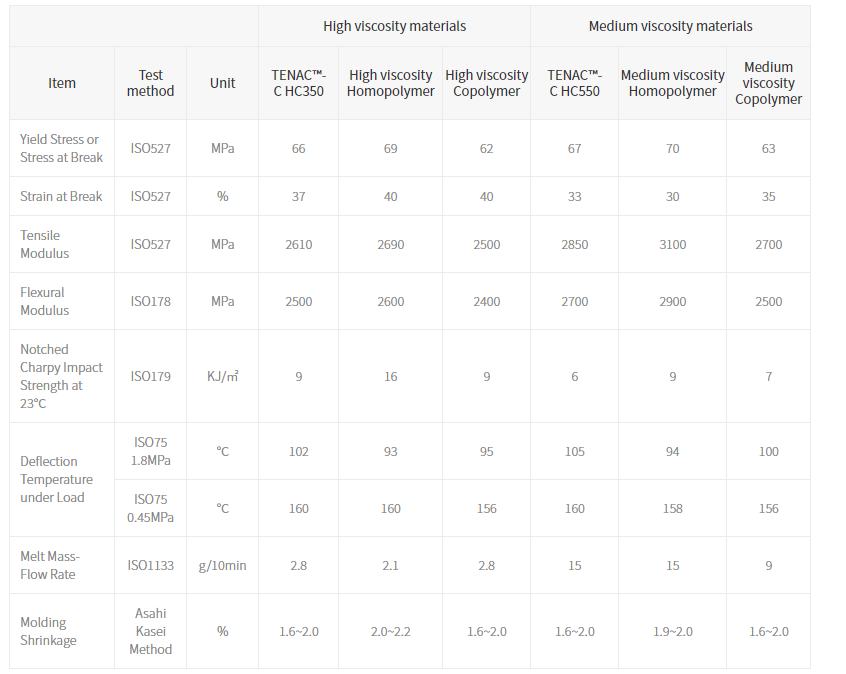

● TENAC-C HC series

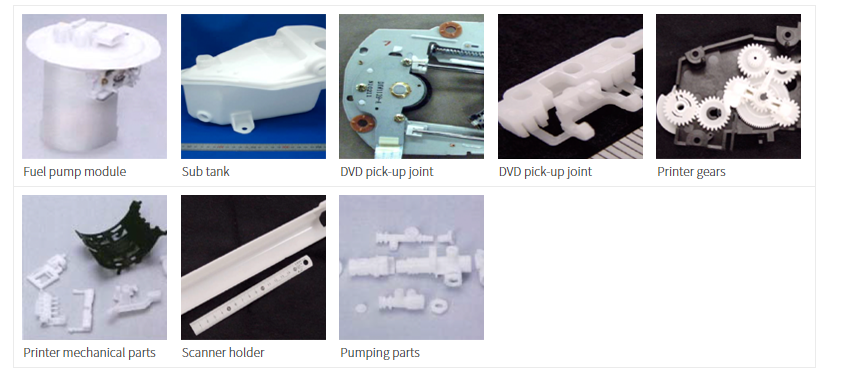

● TENAC-C HC series Applications
