XYRON (Asahi Kasei)

Production and sales began in March 1979. Grades include PPE/PS alloys, PPE/PA alloys, and PPE/PP alloys.

  -   Features: Excellent heat resistance, flame retardance, dimensional stability, and mechanical properties.
  -   Application fields: Automotive parts, electrical & electronic parts, industrial parts.
  -   High-performance grade example: L series - with greatly improved flowability and exceptionally low gas evolution.
  -   Capacity: 83,000 tons/year (35,000 tons/year in Japan, 48,000 tons/year in Singapore).

1. Classification for XYRON GRADES

Type

GRADE

Characteristic

Main application

Polymers

Filler

PPE

PS

-

100V, 100Z, 220V, 220Z

Flammability, mold ability, Recycles

OA,
electric Products Housing

300H, 500H, 300V, 500V, 300Z,
500Z

Electrical properites, Flammability,
Heat stabilities

Electrical and
Electronic Case

1000H, SZ800

High DTUL (150℃ ~ 170℃)

Electrical, Electronic Case, Trays

X0715, X5516, X0718, X0708,
X0722, X0700, X9653

Heat stability (110℃ ~ 128℃)
Impact strength

Interior &
Exterior for Automotive

GF

G701H, G702H, G703H

Hot Water Stability GF10~30％ Reinforced

Water Line Components

G701V, G702V, G703V

Electrical, Flammability Stiffness,
Heat stability

Electrical and
Electronic parts

SPECIAL MF

X1511, X1711, X334V, X334Z,
X534V, X534Z

Dimension stability Stiffness, Flammability, Low Density

Precision case

MF

X332V, X332Z, X333V, X333Z,
X532V, X532Z, X533V, X533V

Low-Warp Dimensional stability Stiffness,
Flammability, Low Density

OA Equipment Chassis

CF

X8400, X8600

Electrically Conductive; High Stiffness,
Flammability

Chassis parts

PA

-

X5402, X5403, A1400

Oil resistance Dimensional stability
Electrical properites,

Electrical and Electronic,
Chassis

X9803, A0100, A0501, A0210

Heat Resistance, High impact, Oil resistance

Interior &
Exterior for Automotive

AT600, AT610

Good Flow; High Heat Resistance

Exterior(Auto)

GF

G010H, G010Z, G020H, G020Z

Oil resistance, High Stiffness, Dimensional
stability Electrical properites

Electrical and Electronic,
Chassis

AG511, AG512, AG211, AG213

Heat Resistance (200℃),
Oil resistance Dimensional stability Stiffness

Interior &
Exterior for Automotive

PO

-

FL50V, FT31V

Flammability, Sliding

Sliding parts

2. Classification by Heat Resistance & Flammability

● Non Reinforced Grades

TM
DTUL (°C)
1.82 MPa

ISO
DTUL (°C)
1.80 MPa

Flammability (UL94)

HB

V-1

V-2

V-0

76

70

1950J, 1951J

85

78

-

100V

-

100Z

90

83

200H

240V

240W

240Z

100

94

300H

340V

340W

340Z

110

104

400H

-

-

440Z

106

-

-

-

PV40Z

120

114

500H

540V

-

540Z

130

124

600H

640V

-

640Z

140

129

-

-

-

644Z

134

-

740V

-

-

150

144

-

-

-

SZ800

170

164

1000H(Eq.to HB)

-

-

-

* Equivalent to UL94


● Xyron™ application examples



● Reinforced Grades

ASTM
DTUL

ISO
DTUL

Flammability

Glass
Fiber

High-Stiffness
Low-Warp
High-Flow

High-Stiffness
Low-Warp

High-Stiffness
Ultralow-Warp

Good
Appearance
Low-Warp

Electro
conductive

Acoustic
Damping

97

100

HB

X352H

V-1

X331V
X332V

X1509
X1508

X351V
X352V

VN30V
VT31V

V-0

X1561

110

108

HB

X444H

X304H
X404H

V-1

V-0

X1712

120

118

HB

X552H

V-1

L542V
L543V
X1744
L544V
L554V
L564V
L565V

X531V

L524V

X551V
X552V

X8610

V-0

L542Z
L543Z
L564Z
L574Z

X531Z

X8401

130

128

HB

G701H

X604H

V-1

G701V

X603V

130

133

V-1

L654V

140

139

HB

G702H
G703H

V-1

G702V
G703V


● examples

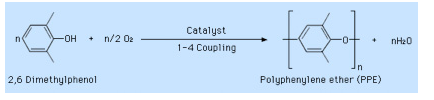

● PPE Base Resin

▶ Characteristics

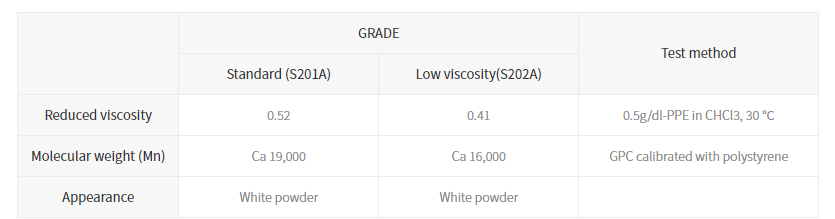

 - Noncrystalline polymer
 - High heat resistance (Tg: 214 ℃ by DSC)
 - Low specific gravity (1.06 )
 - Good electrical properties (Dielectric constant: 2.45 at 1 MHz, Dielectric loss: 0.0007 at 1 MHz)
 - Flame retardant
 - Dissolves well in aromatic hydrocarbons (Toluene, Xylene, etc.) and halogenated hydrocarbons (Chloroform, etc.)


● Applications
- Base resin for polymer alloys.

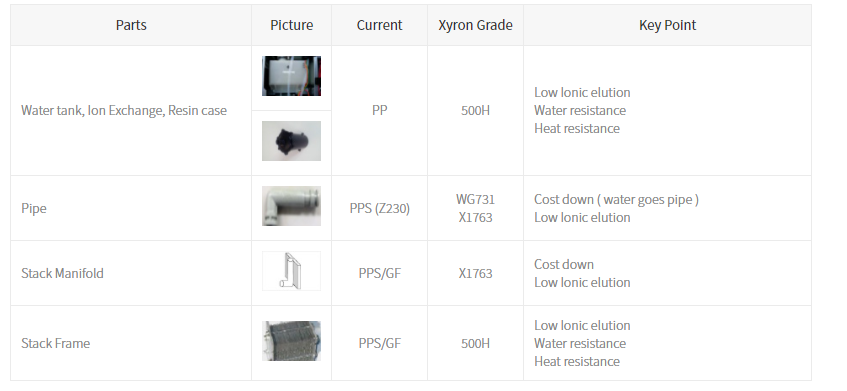

● Fuel cell for Xyron Grades


3. XYRON Li-Ion cell

Property

PP/PPE type
Alloy

PA/PPE type
Alloy

PPE/PS type
Alloy

PBT
Flame resisting
Grade
non-filler

PP
Flame resisting
Grade
Non-filler

Xyron™ TF700
(developed)

Xyron™ AF700

Xyron™ 340Z

Specific Gravity

ISO1183

1.07

1.09

1.08

1.32

1.02

Tensile Strength

MPa

ISO527

53

58

54

50

18

Tensile
Elongation

%

ISO527

12

32

13

10

84

Flexural Strength

MPa

ISO178

77

93

88

80

39

Flexural Modulus

MPa

ISO178

2270

2400

2400

2800

1680

Charpy Impact
Strength
(notched)

KJ/㎡

ISO179

7

8

15

3

6

Relative Thermal Index

℃

ISO75,1.8MPa

109

98

94

80

60

ISO75,0.45MPa

122

192

110

160

102

Flammability

UL94

V-0 (1.6mm)
V-1 (0.8mm)

V-0(1.6mm)

V-0(1.6mm,
0.8mm)

V-0

V-0(1.5mm)
V-2(0.5mm)

Mold Shrinkage

%

Flowing
direction

0.8

1.5

0.5

-

1.6

Right angle
direction

1.2

2.0

0.8

-

1.4

Flatness

Mn

ASAHI
KASEI method

0.92

0.30

0.12

-

-

breakdown
voltage(UL746A)

kV / MM

Dry

36

25

29

18

33

Tracking

V

IEC-60112∙2003

>600상당

>600

225

175-250

>600

ATF OIL

-

ASAHI
KASEI method

NO fracture

NO fracture

fracture

-

-

characteristics

Oil resistance, Electrolyte,
electric
insulation

Heat
resistance,
Thermal
stiffness

Dimension,
Acid
resistance,
Alkali
resistance

-

-


● Application
  -   Case/Holder: XYRON L543Z,X532Z
  -   Spacer/Insulating board: XYRON 340Z


● Solar cell (junction box & connecter)
- Product physical properties

Characteristic

Unit

Test method

Test condition

540Z

644Z

PV40Z

Specific Gravity

ISO1183

23℃

1.08

1.09

-

moisture absorption

%

ISO62

Immersion
for 24Hr

0.10

0.10

-

Thermal
Property

DTUL Relative Thermal Index

℃

ISO75-1

1.80MPa

114

129

106

ASTM D648

1.80MPa

120

-

-

coefficient of
linear expansion

mm/
mm/
℃

ISO11359

-30℃-65℃

7.0 x 10-5

7.0 x 10-5

-

Percentage of contraction

%

ASTM D648

1.82MPa

120

-

-

Machinery
Property

Tensile Strength

MPa

ISO527

23℃ 50% RH

60

74

56

Tensile yielding

%

ISO527

23℃ 50% RH

13

9

18

Flexural Strength

MPa

ISO178

23℃ 50% RH

98

110

88

Flexural Modulus

MPa

ISO178

23℃ 50% RH

2430

2440

2060

Charpy Impact strength

KJ/㎡

ISO179

4mm
Notched

15

21

46

Electronic
Property

Flammability

UL94

Black

0.66mm V-0 1.5mm 5VB
2.5MM 5VA

0.75mmV-0 2.0mm5VA

0.75mmV-0 2.0mm5VB 2.5mm5VA

CTI

UL PLC rank

0

2

0

RTI

℃

Elec/Imp/Str(1.5mm)

110/105/110

125/125/125

105/105/105

HWI

UL PLC rank

0(1.5mm)

2(1.0mm)

1(0.75mm)

HAI

UL PLC rank

0(1.5mm)

0(1.0mm)

2(0.75mm)

HVTR

UL PLC rank

2

4

-

Weather Resistance

UL746C

Black

f1 0.75mm V-0 2.5mm 5VA

f1 1.0mm V-0 2.0mm 5VA

f1 0.75mm V-0 2.5mm 5VA

Mold
contraction

Resins Temperature

℃

240-290

280-320

280-320

Metallic mold Temperature

℃

50-80

60-100

50-90

Reserved Dry temperature

℃

90-100

90-100

90-110

Reserved Dry time

℃

2-4

2-4

2-4

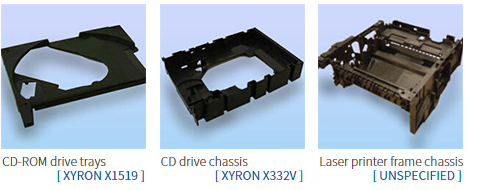

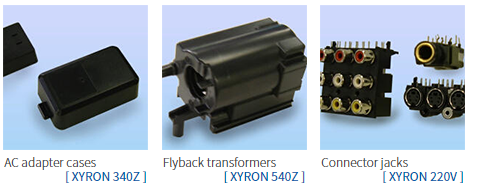

● XYRON application example
