PHENOLIC MOLDING COMPOUNDS (Panasonic)

Phenol-formaldehyde resins, as a group, are formed by a step-growth polymerization reaction that can be either acid- or base-catalyzed. Hexamethylenetetramine or "hexamine" is a hardener added to crosslink novolac. Base-catalyzed phenol-formaldehyde resins are made with a formaldehyde to phenol ratio of greater than one, these resins are called resoles. PHENOL resin in pulp, wood flour such as fillers, coloring agents, denaturing agents are added to make the PHENOL MOLDING COMPOUND.

RADE

APPLICATION

CHARATERISTICS

MOLDING CONDITION

CN4404

Automotive parts(small), Home appliance, OA, AV

Good for Plastic machinability
(small size commutator)

Transfer, Compression

CN6442

Automotive parts(starter),
Power tool Vacuum cleaner

Heat resistance (swirling strength),
Ammonia free

Transfer, Compression

CN6548

Automotive parts (DC Motor B/H)

Heat resistance, dimensional stability

Injection , Compression

CN6556

Automotive parts(starter, wiper),
Power tool Vacuum cleaner

Heat resistance (swirling strength)

Transfer, Compression

CN6575

Automotive parts(starter, wiper),
Power tool Vacuum cleaner

Dimensional stability

Transfer, Compression

CN6590

Automotive parts(starter/small commutator)

Good for Plastic machinability,
Elongates in shaft insertion

Transfer, Compression

CN6621

Automotive parts(fuel pump)

Fuel resistance

Transfer, Compression

CN6641

Automotive parts(small, stator),
Home appliance

Good for Plastic machinability
(small commutator)

Transfer, Compression

CN6741

Home appliance, Power tool,
Automotive parts(small, stator)

Elongates in shaft insertion Heat and
moisture resistance

Transfer, Compression

CN6771

Automotive parts(starter, wiper),
Power tool Vacuum cleaner

Heat and moisture resistance
(Excellent dimensional stability)

Transfer, Compression

CN6776

Automotive parts(commutator), Vacuum cleaner

Heat resistance, Dimensional change is low

Injection , Compression

CN6853

Automotive parts(commutator), Vacuum cleaner

Heat resistance, Dimensional change is low

Transfer, Compression

CN6957

Fuel pump commutator

Fuel resistance

Transfer, Compression

CY4200

Housing/Insulator, PWI, Master cylinder piston,
Pulley

Heat resistance

Injection , Compression

CY4713

Automotive parts(engine parts)

Heat resistance strength,
dimensional stability chemical resistance

Injection

CY4717

Automotive parts(starter), Vacuum cleaner,
Vacuum cleaner

Heat resistance , Dimensional change is low

Injection , Compression

CY6456

Automotive parts(fuel pump impeller, pulley)

Excellent dimensional stability,
Fuel resistance

Transfer, Compression

CY6548

Fuel pump impeller housing, Diesel rotor case

Excellent dimensional stability,
Fuel resistance

Injection

CY6786

Fuel pump impeller housing, Diesel rotor case,
PWI

Excellent dimensional stability

Injection

CY8611

Automotive parts(ignition switch)

Ammonia free

Injection

CY9177

Master cylinder piston

Dimensional stability

Injection

CYD100

PWI

Dimensional stability, Heat resistance

Injection , Compression

● BY APPLICATION CHARACTERISTICS

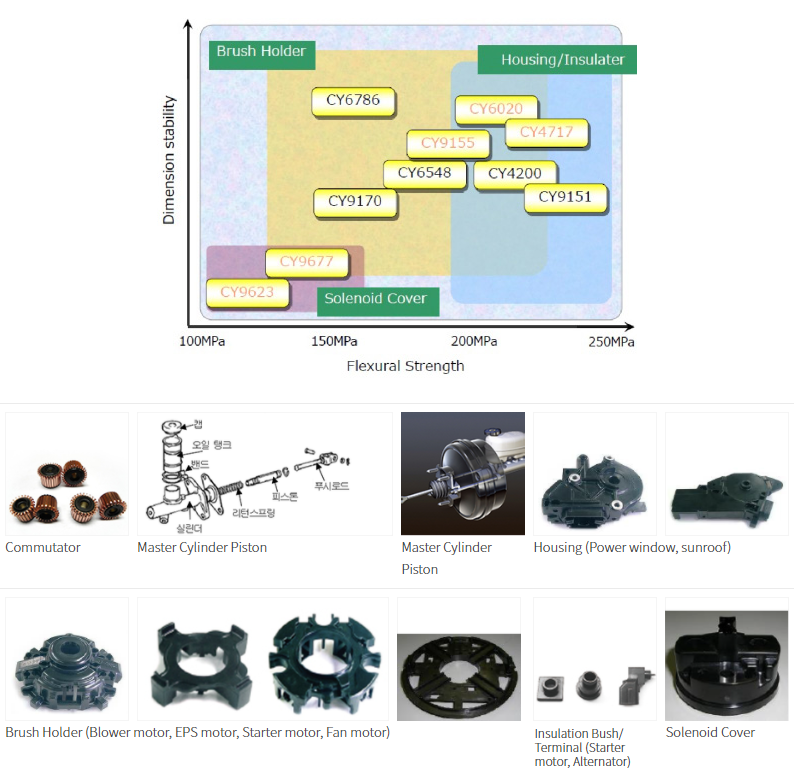

1. Automotive
- Characteristics : Superior in heat resistance, Strength and creep resistance
- Applications : Commutator, Pulley, Stator, Gear, Brush holder, Master cylinder Piston, PWI(Pad Wear Indicator), Fuel pump impeller case, Insulator(Insulation)

* Master cylinder Piston
Characteristics : High strength, High modulus, Dimensional stability (at the high humidity)



2. Electrical and electronic products
- Characteristics : High arc resistance and tracking resistance
- Applications : For coil bobbin, Breaker, Commutator for vacuum, DC motor commutator


* Commutator for vacuum


3. Dish , Commodity
- Characteristics : Highly woody feel with superior mold ability and boiling resistance
- Applications : For table ware and others
