Agricultural spray hose - B06
● Purpose

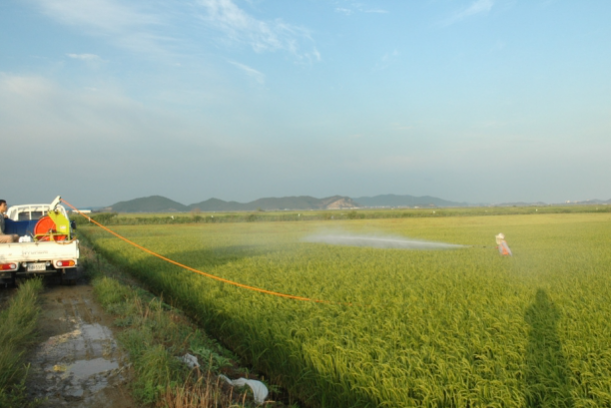

- High pressure agricultural spraying of insecticides and fertilizers Heavy duty air, water & light chemical solution spray Agriculture, nursery, vineyard, lawn & pest control industries
● Features
- Abrasion & chemical resistant
- Weather resistant
- Flexible & lightweight
- Multiple color selection

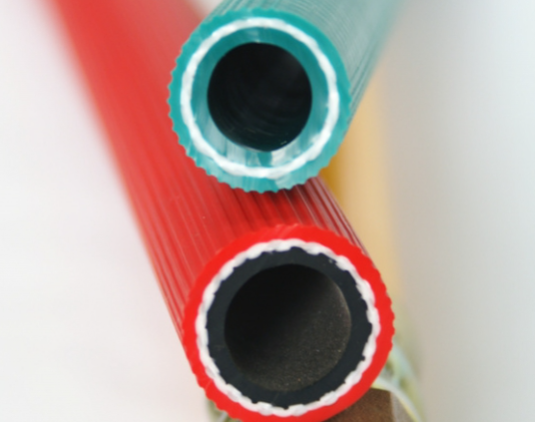

- High grade polyester yarn reinforcement
● Specification
Nomal Size | I.D | O.D | Std.Length | W.P(at20˚C) | |||||
mm | inch | mm | inch | mm | inch | m | ft | kg/㎠ | psi |
7.5 | 3/10 | 7.5 | 0.295 | 13.5 | 0.531 | 100~300 | 300~900 | 40 | 570 |
8.5 | 5/16 | 8.5 | 0.344 | 14.5 | 0.570 | 100~300 | 300~900 | 40 | 570 |
10.0 | 3/8 | 10.0 | 0.393 | 16.0 | 0.629 | 50~200 | 150~600 | 40 | 570 |
13.0 | 1/2 | 13.0 | 0.511 | 20.0 | 0.787 | 50~200 | 150~600 | 30 | 425 |
16.0 | 5/8 | 16.0 | 0.629 | 24.0 | 0.944 | 50~100 | 150~300 | 30 | 425 |
19.0 | 3/4 | 19.0 | 0.748 | 28.0 | 1.102 | 50~100 | 150~300 | 30 | 425 |
25.0 | 1 | 25.0 | 0.984 | 33.0 | 1.299 | 50~100 | 150~300 | 20 | 285 |
