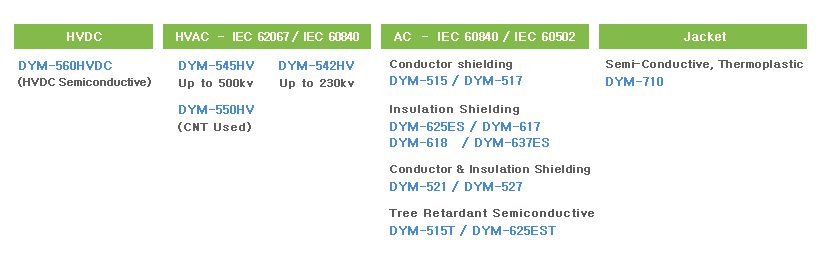

Semiconductive Compound for Extra-High Voltage and High Voltage Power Cables



Grade

Density (g/cm³)

Volume Resistivity
(Ω·m) (23°C/90°C)

Application

Special Features

Extra High Voltage

DYM-545HV

1.12

0.30/1.20

EBA resin, Acetylene Black
Up to 500kV

Conductor & Bonded Insulation Shield Excellent heat resistance

High Voltage

DYM-542HV

1.14

0.50/1.50

EBA resin,Super Clean Furnace Black
Up to 230kV

Ethyene-propylene Rubber Very suitable to use in high voltage power cable

HVDC

DYM-560HVDC

1.11

0.30/1.30

EBA resin, Acetylene Black
Semiconductive screens of XLPE
HVDC cables

Excellent surface smoothness
Low space charge accumulation

CNT HV

DYM-550HV

1.00

0.50/2.00

Polyolefin resin, Carbon Nano Tube
Up to 230kV

Carbon Nano Tube Technology
Excellent surface smoothness

*. Data should not be used for specification work. Values are typical, and not to be construed as specifications.




Semiconductive Compound for Medium Voltage Power Cables



Grade

Density (g/cm³)

Volume Resistivity
(Ω·m) (23°C/90°C)

Application

Special Features

Conductor
Shield

DYM-511

1.11

4.50/13.00

Bonded Type-Outdoor Cable

Reduced Viscosity Good Fluidity and
High Resistance to Scorch

DYM-515

1.14

0.50/5.50

Bonded Conductor Shielding Compound

Good Fluidity and High Resistance to Scorch

DYM-517

1.14

1.00/4.50

Bonded Conductor Shielding
Compound

Good Fluidity High Resistance to Scorch

DYM-518

1.11

1.50/10.00

Bonded Conductor Shielding Compound

Good adhesion to Al Conductor High Resistance to scorch and Good Fluidity

DYM-515T

1.14

0.30/3.00

Tree Retardant Bonded Insulation Shielding Compound

Good Fluidity and Electrical Conductivity High Resistance to Scorch

Conductor
& Insulaton
Shield

DYM-521

1.15

0.60/6.00

Conductor and Insulation Shielding Compound

Good Surface smoothness
High Resistance to Scorch

DYM-527

1.15

0.30/4.00

Conductor and Insulation Shielding Compound

Good Surface smoothness
High Resistance to Scorch

Insulation
Shield

DYM-625ES

1.17

1.00/10.00

Easy Strippable Insulation Shielding Compound

Good strip force over a wide temperature High Resistance to Scorch

DYM-617

1.17

3.00/7.00

Strippable Insulation Shielding Compound

Good Fluidity
High Resistance to Scorch

DYM-618

1.18

0.70/3.00

Easy Strippable Insulation Shielding Compound

Good strip force over a wide temperature High Resistance to Scorch

DYM-626

1.17

1.80/15.00

Easy strippable Insulation Shielding Compound

Strippable for long run extrusion without Scorch

DYM-637ES

1.19

3.00/7.00

Strippable Insulation Shielding Compound

Very easy strippable for EPR Insulation

DYM-625EST

1.15

1.00/3.50

Tree Retardant Insulation Shielding Compound

Good Fluidity and Electrical Conductivity High Resistance to Scorch

*. Data should not be used for specification work. Values are typical, and not to be construed as specifications.


Semiconductive Jacketing Compound for Power Cables



Grade

Density (g/cm³)

Volume Resistivity
(Ω·m) (23°C/90°C)

Application

Special Features

Semicon Shield

DYM-710

1.05

1.50/2.00

Thermoplastic Semiconductive Jacketing Compound

Excellent electrical · physical properties

*. Data should not be used for specification work. Values are typical, and not to be construed as specifications.
