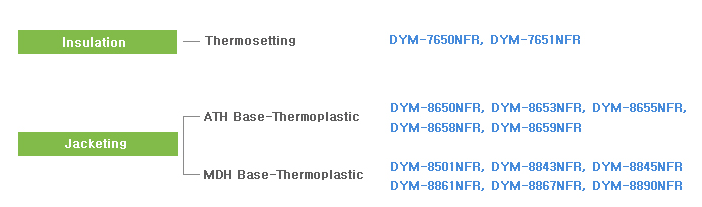

HFFR COMPOUND



Halogen Free Flame Retardant Compound



Grade

Density (g/cm³)

Oxygen Index

Application

Special Features

Jacketing Compound

DYM-7650NFR

1.54

45

HFFR Insulation (105°C)

Thermosetting Insulation Compound
(Electric Beam Crosslinking) UL 10368

DYM-7651NFR

1.46

37

HFFR Insulation (105°C)

Thermosetting Insulation Compound
(Electric Beam Crosslinking)

DYM-8650NFR

1.45

33

Power Cable, Offshore & Shipboard Cable, Telecom

Thermoplastic IEC 60092-360 SHF 1, IEC 60502-1 ST8, VDE 0207 Part24 HM2, BS 7655 Section 6.1 LTS1 & LTS3 Good mechanical and processing properties

DYM-8653NFR

1.45

32

Power Cable, Offshore & Shipboard Cable, Telecom

Thermoplastic IEC 60092-360 SHF1, IEC 60502-1 ST8, VDE 0207 Part24 HM2, BS 7655 Section 6.1 LTS1 & LTS3

DYM-8655NFR

1.52

41

Power Cable, Offshore & Shipboard Cable, Telecom

Thermoplastic IEC 60092-360 SHF 1, IEC 60502-1 ST8, VDE 0207 Part24 HM2, BS 7655 Section 6.1 LTS1 & LTS3 Good mechanical and processing properties

DYM-8658NFR

1.52

36

Power Cable, Offshore & Shipboard Cable, Telecom

Thermoplastic IEC 60092-360 SHF1, IEC 60502-1 ST8, VDE 0207 Part24 HM2, BS 7655 Section 6.1 LTS1 & LTS3
Excellent flame retardant

DYM-8659NFR

1.48

37

Power Cable, Offshore & Shipboard Cable, Telecom

Thermoplastic IEC 60092-360 SHF1, IEC 60502-1 ST8, Termite repellent compound

DYM-8660NFR

1.30

36

Power Cable (FR CNCO-W)

Thermoplatsic ES 126-661-664(KEPCO), IEC 60502-1 ST8, Excellent mechanical properties and low smoke

DYM-8843NFR

1.35

38

Power Cable & Telecommunication

IEC 60092-360 SHF1 Flame retardant,
IEC 60502-1 ST9 (6/10kV Sheath)
Thermoplastic S4002 0001(KT)

DYM-8845NFR

1.36

41

Telecommunication & Power Cable

Thermoplastic S4002 00 01(KT)
IEC 60092-360 SHF1 Flame retardant,
IEC 60502-1 ST8.(6/10kV Sheath)

DYM-8861NFR

1.31

36

Power Cabel (FR CNCO-W)

Thermoplastic ES 126-661-664(KEPCO), IEC 60502-1 ST8, Excellent mechanical properties and low smoke

DYM-8867NFR

1.28

32

Power Cable

Thermoplastic IEC 60502-1 ST7 Hardness Shore D (>58)

DYM-8890NFR

1.40

41

Telecom & Optical Fiber Cable
Power Cable / Shipboard Cable

Thermoplastic IEC 60092-360 SHF1, VDE 0207 Part24 HM2, BS 7655 Section 6.1 LTS1 & LTS3 Excellent flame retardant

*. Data should not be used for specification work. Values are typical, and not to be construed as specifications.
