ELcoat® AS
- High durability Anti-static coating
- Highly durable anti-static coating materials are permanent antistatic coating materials that can be applied to various fields of highly functional parts and materials requiring severe heat resistance and light resistance, as well as a conventional antistatic function.
● Products
- ELcoat® CNT-100P : Coating solution for semiconductor process anti-static (PI) film / 1010~11Ω/■, Heat resistance(150℃, 120hr)
- ELcoat® IMO 1003 : Coating solution for mobile protective anti-static film / 109~10Ω/■, Solvent resistance, Hardness
- ELcoat® HY 512 : Coating solution for anti-static release film / 104~5Ω/■
● Features
- Remarkable optical property(Transparency)
- Permanent anti-static
- Excellent heat resistance and light resistance
● Property – Inorganic Metal Oxide & SWCNT & PEDOT:PSS
Dilution ratio | ELcoat® IMO | ELcoat® CNT | ELcoat® HY |
|---|---|---|---|
Surface Resistance (Ω/■) | 104~11 | 105~11 | 104~11 |
Haze (%) | < 1.0 | < 1.0 | < 1.0 |
Transmittance (%) | > 90 | > 88 | > 90 |
Pencil Hardness | 2H~3H | > B | > B |
Taping Test | 100/100 | 100/100 | 100/100 |
Coating Method | Gravure & Slot die | Gravure | Gravure |
Curing Condition (Lab) | 60℃Ⅹ1min → UV 500mJ/㎠ | 100℃Ⅹ1min | |
Demand Property | Permanent Anti-static | Permanent Anti-static | Cost saving |
Durability | Excellent | Excellent | Very good |
Coating property measured with PET film (100㎛)

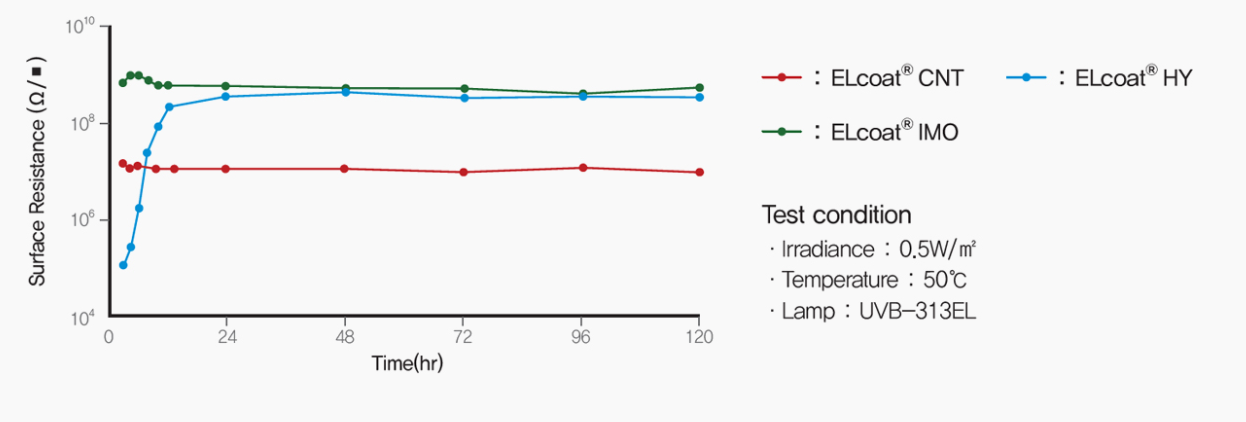

● Durability - QUV test

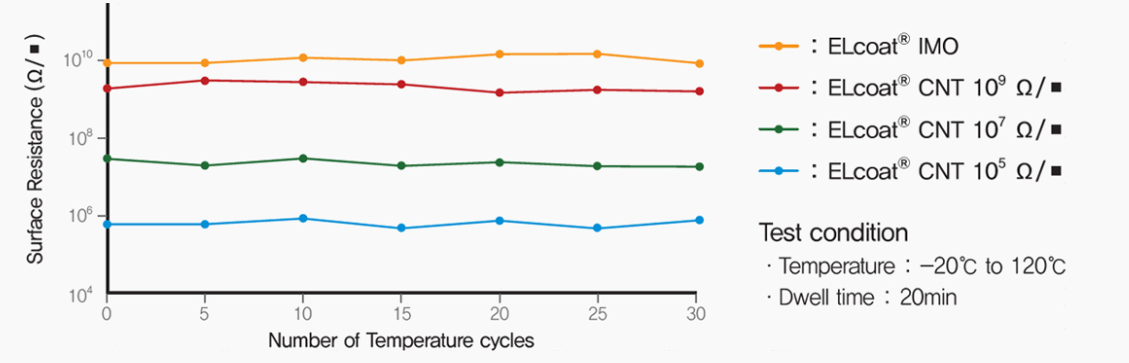

● Durability - Temperature Cycling Test
