JYHS-series
- Hybrid Sheet
[Features]

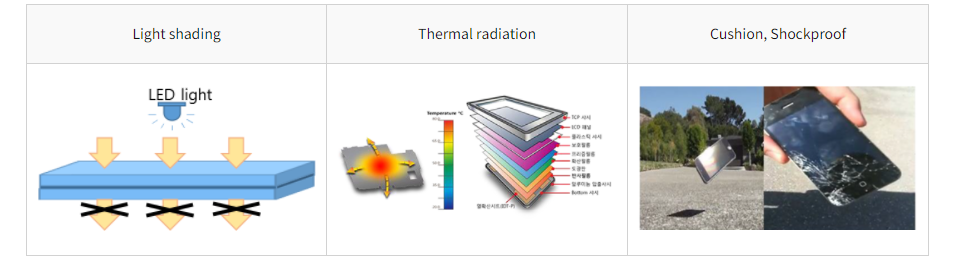

• High functional laminated sheet which functions as EMI shielding, electric conduction, thermal radiation, light shading, and cushion
• Functions and thickness are adjustable as per customers’ requirements

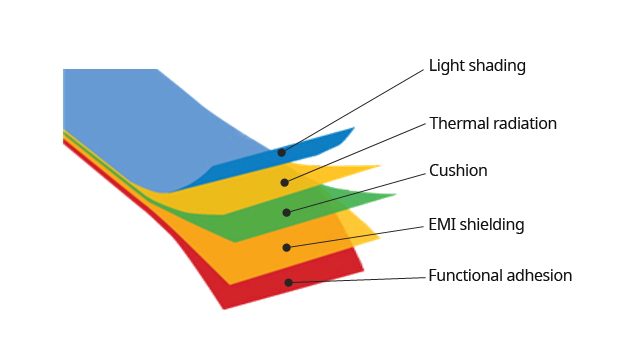

※ Multi Layer/Function
[ Product information ]
Grade | P/N | Function | Thickness | Adhesion | Resistance (mΩ/in2) | Thermal conductivity (through) | Liner | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Light | Cushion | Heat | EMI | Conductive type | Heat conductive type | Horizontal | Vertical | PET | Paper | ||||
High-end | NCW35 | ◎ | – | ◎ | ◎ | 35±20% | 800↑ | X | 100↓ | 50↓ | X | ◎ | X |
NCW50 | ◎ | – | ◎ | ◎ | 50±10% | 1,000↑ | X | 100↓ | 50↓ | X | ◎ | X | |
NCW-C160 | ◎ | ◎ | ◎ | ◎ | 160±15% | 1,000↑ | X | 100↓ | X | X | X | ◎ | |
Middle- end | NW40 | – | – | ◎ | ◎ | 40±10% | 800↑ | X | 100↓ | 50↓ | X | ◎ | X |
NW50 | – | – | ◎ | ◎ | 50±10% | 1,000↑ | X | 100↓ | 50↓ | X | ◎ | X | |
NW-C150T | – | ◎ | ◎ | – | 150±10% | X | 700↑ | X | X | 1.5↑ | X | ◎ | |
NC-C160T | ◎ | ◎ | ◎ | – | 160±10% | X | 700↑ | X | X | 1.5↑ | X | ◎ | |
Low-end | CW30 | ◎ | – | – | ◎ | 30±10% | 800↑ | X | 100↓ | 50↓ | X | ◎ | X |
CW45 | ◎ | – | – | ◎ | 45±10% | 1,000↑ | X | 100↓ | 50↓ | X | ◎ | X | |
CW35T | ◎ | – | ◎ | – | 35±10% | X | 700↑ | X | X | 1.5↑ | ◎ | X | |
